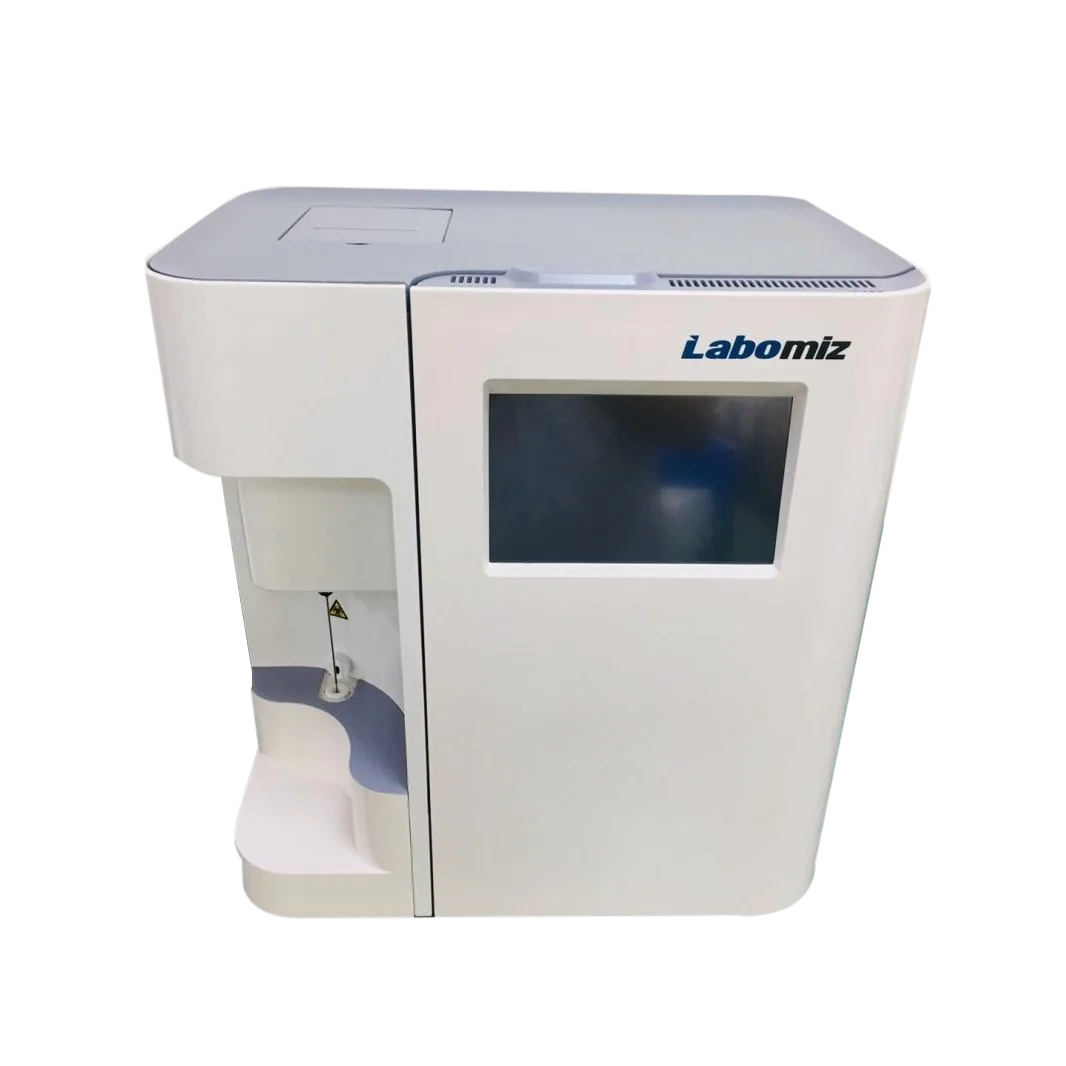

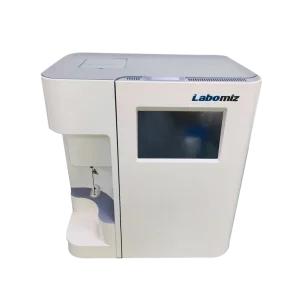

Electrolyte Analyzer MELA-1C
Model: MELA-1C · Category: Analyzers
Electrolyte analyzer MELA-1C is a benchtop oriented unit with a dual sampling mode (automatic and manual). The electrode shielding system helps to prevent an external interference. Users can achieve a good stability and accurate results owing to a real time detection of each electrode's working status. Accidental power-off protection and automatic fault diagnosis function minimizes errors.
Specifications
| Sample | Whole blood, serum, plasma, diluted urine |
|---|---|
| Sample volume | 100 µL ~ 150 µL |
| Throughput | up to 60 samples/h |
| Measuring range | K+ - 0.50 mmol/L ~ 15.00 mmol/L Na+ - 30.0 mmol/L ~ 200.0 mmol/L |
| Precision (CV%) | K+ ≤ 1.0 % Na+ ≤ 1.0 % |
| Data storage | up to 200 patient result |
| Calibration | Automatic or On-demand |
| Input | Touch-screen |
| Display | Large LCD with backlight |
| Output | Internal thermal recorder RS-232 serial port |
| Working Environment: Temperature: | 15 ºC ~ 32 ºC |
| Relative humidity | 0.85 |
| Input voltage | AC 220 V / 110 V ± 10 % 50 Hz / 60 Hz |
| Power consumption | 60 W |
| Dimensions ( H × W × D ) | 440 × 380 × 350 mm |
| Main unit weight | 10 kg |
| Auto sampler weight (optional) | 1.5 kg |
Features
| Linux operating system, 800 X 480 color LCD touch screen |
| High performance electrodes: high precision and wide linearity range, with long shelf life (up to 12 months for Na, K, Cl electrodes) |
| Excellent electrode shielding system (good stability) |
| Real-time detection electrode (working status, eliminating electrodes drift) |
| Bar-code scanner connectivity |
| Accidental power-off protection and automatic fault diagnosis function |
| High / low value calibrators |
| 3 levels of QC, automatic calibration of slope and intercept values, display of whole QC graphs |
| Environment friendly: paper-based material reagent pack |
| Operational software can be upgraded through USB port |
| Automatic liquid level detection |
| Real-time diagnostic (system status, reagent pack status information) |
| Test results storage - More than 100,000 |
| Sample results review and print-out sample ID Sample |
Applications
| No. | Item |
|---|---|
| 1 | Electrolyte analyzers are used in hospital and reference laboratories to measure levels of K+ / Na+ in human body |
