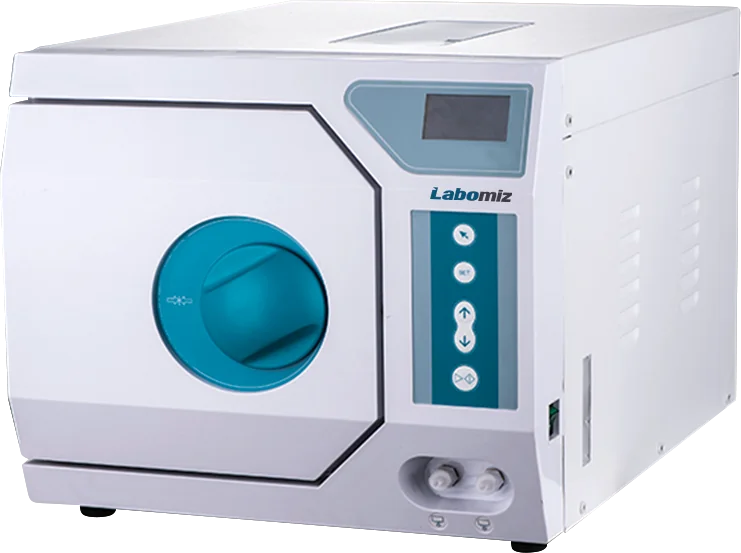

Class N-Table Top Autoclave MNTTA-1D
Model: MNTTA-1D · Category: Autoclaves
Class N-table top autoclave MNTTA-1D is a microcomputer controlled unit crafted for an arbitrary process of sterilization. The built-in steam generator facilitates rapid cycles of saturated steam. It is characterized with automatic cooling air and steam exhaustion function at the end of the sterilizing process.
Specifications
| Capacity | 18 L |
|---|---|
| Sterilization room size | Φ 250 × 370 mm |
| External dimensions | 480 × 465 × 690 mm |
| Working temperature | 134 °C |
| Maximum pressure | 0.22 MPa |
| Power | 2200 W |
| Voltage | 110 V; 60 Hz 220 V; 50 Hz |
| Weight | 48 kg |
Features
| Malfunction detector (over temperature, over voltage and low water level) |
| Digital display with touch screen panel for ease of operation |
| Standard test interface |
| Interlocking system preventing water spillage from tank |
| Buzzing alarm indication and automatic process end on completion of sterilization |
| High quality stainless steel liner with sealed cover |
Applications
Used in sterilizing dental tools, veterinary medicines, biological products, utensils, medical appliances, culture media, etc. in the fields of dentistry, biology, biochemistry, forensic, pharmaceuticals, cytology, immunology, genetics, bioengineering, health and sanitary, etc.
