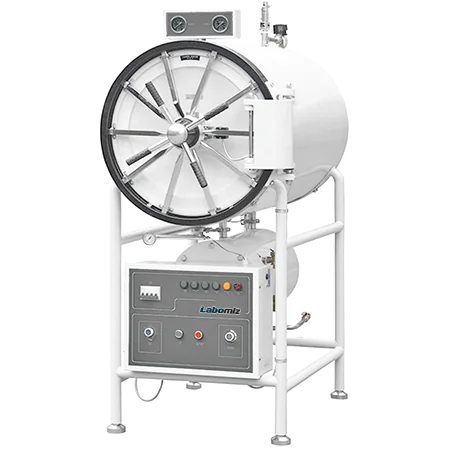

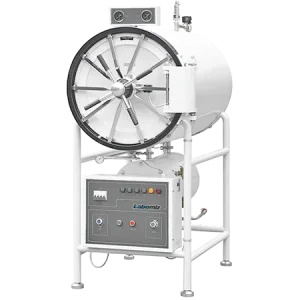

Horizontal Laboratory Autoclave MHA-1B
Model: MHA-1B · Category: Autoclaves
Horizontal Laboratory Autoclave MHA-1B is a microprocessor controlled automatic autoclave.It has a capacity of 200 L and a maximum working temperature of 134 °C. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.
Specifications
| Capacity | 200 L |
|---|---|
| Sterilization Temperature | 134 °C |
| Sterilization Pressure | 0.22 MPa |
| Timer Range | 0 - 60 minutes |
| Heat Average | ≤ ± 1 ℃ |
| Chamber Dimensions ( Φ × D ) | 515 × 1000 mm |
| Product Dimension ( L × W × H ) | 1400 × 670 × 1650 mm |
| Power Supply | 9 kW / AC 220V 50 Hz |
| Net Weight | 260 kg |
| Gross Weight | 350kg |
Features
| Microprocessor control with fully automatic cycles |
| Digital LCD display to monitor working status and parameters |
| Working pressure : 0.22 MPa |
| Working temperature : 134 ? |
| Automated drying function |
| Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa |
| Safe door lock system ensuring safety / protection during sterilization |
| Automatic power cut off with alarm with low water levels indication |
Applications
| No. | Item |
|---|---|
| 1 | Suitable for medical, laboratory, microbiological, clinical use and to sterile the waste before discarding. |
