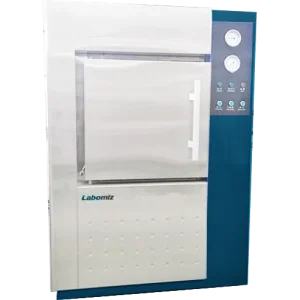

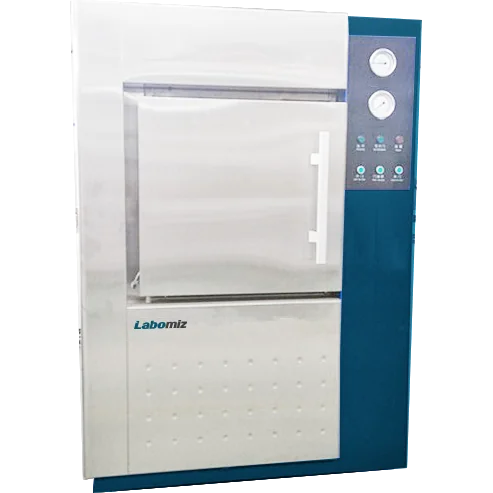

Horizontal Laboratory Autoclave MHA-3E
Model: MHA-3E · Category: Autoclaves
Horizontal Laboratory Autoclave MHA-3E is a 1200 L capacited double door microprocessor controlled automatic autoclave. It is equipped with motorized or sliding door with an effective sterilization temperature of 139 °C. With safety features like auto door lock against raised safety pressure and automatic shutoff preventing overload of current this autoclave is an ideal laboratory device.
Specifications
| Capacity | 1200 L |
|---|---|
| Sterilization Temperature | 139 °C |
| Sterilization Pressure | 0.25MPa |
| Steam Pressure & Consumption | 0.4 - 0.6 MPa / 48 kg |
| Water Source Pressure & Consumption | 0.2 to 0.3 MPa / 250 kgs |
| Compressed Air Pressure | 0.6 - 0.8 MPa |
| Inner Chamber Dimension ( L × W × H ) | 1500 × 680 × 1180 mm |
| Outer Dimension ( L × W × H ) | 1790 × 1450 × 1950 mm |
| Net Weight | 1900 kg |
Features
| Digital LCD display to monitor working status and parameters |
| Working pressure : 0.22 MPa |
| Working temperature : 139 ? |
| Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa |
| Safe door lock system ensuring safety / protection during sterilization |
| Automatic power cut off with alarm with low water levels indication |
| Motorized or sliding door with pneumatic sealing to prevent loss of sterile steam |
| Controlled power with built in steam generator |
Applications
| No. | Item |
|---|---|
| 1 | Suitable for medical, laboratory, microbiological, clinical use and to sterile the waste before discarding. |
