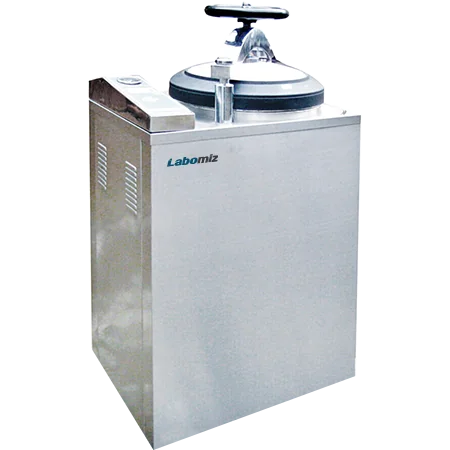

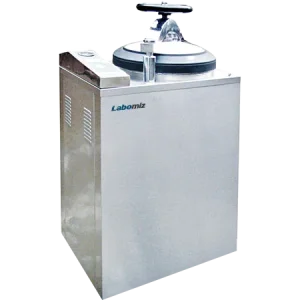

Vertical Laboratory Autoclave MVA-5B
Model: MVA-5B · Category: Autoclaves
Vertical Laboratory Autoclave MVA-5B is designed with hand wheel type structure to quickly open the door. The self-inflating type seal is used to prevent leakage. It is equipped with 0.22 µm bacteria filter which ensure the sterile air enters the inner vacuum environment. This autoclave has 3 times pulse vacuum which makes the vacuum rate as -0.081 MPa and ensures the high extraction of inner air from dressing, A, B type hollowed appliance. This vertical autoclave with digital display has multiple applications in research and development, medicine clinical and pharmaceutical industry.
Specifications
| Capacity | 75L |
|---|---|
| Sterilization Temperature | 134 °C |
| Sterilization Pressure | 0.22 Mpa |
| Chamber Dimensions ( Φ × D ) | 400 × 600 mm |
| Timer Range | 0 ~ 99 min |
| Number of sterilizing baskets | 2 |
| Heat Average | ≤ ± 1 ℃ |
Features
| Digital display with touch key pad which shows temperature, pressure, time and vacuum rate |
| Automatic shutdown with beep sound as sterilization completes |
| Composed of stainless steel body with two stainless steel basket attached to it |
| Designed with hand wheel type structure to quickly open the door and self-inflating type seal is used to prevent leakage |
| Equipped with 0.22 µm bacteria filter which ensure the sterile air enters the inner vacuum environment |
| Three times pulse vacuum with vacuum rate -0.081 MPa, ensures the high extraction of inner air from dressing, A, B type hollowed appliance |
| Equipped with the PT/TT testing connector |
| Automatic system for water feeding, increasing temperature, sterilization, exhausting air and drying |
Applications
Used in biochemistry, pharmaceutical industry, agricultural science, fabric industry, medicine and health care industry, biotechnology, microbiology and scientific research.
