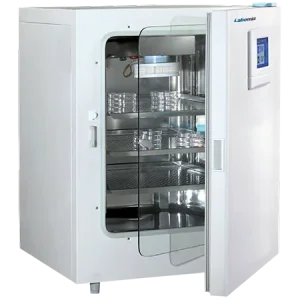

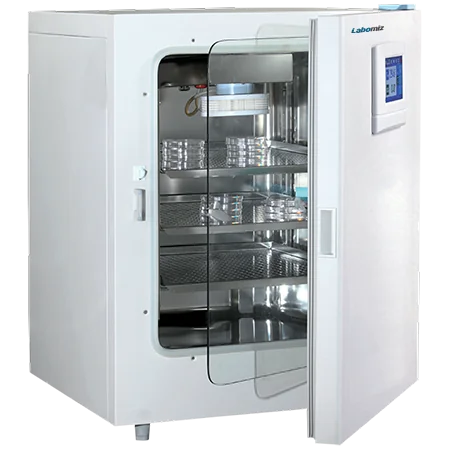

Air Jacketed CO2 Incubator MARJI-1C
Model: MARJI-1C · Category: CO2 Incubator
Air jacketed CO2 Incubator MARJI-1C delivers a higher level of performance for a dependable and reliable in-vitro growth environment through water jacket that provides true temperature uniformity and CO2 gas control. They are equipped with Hot Air Circulation System and UV light system for periodic sterilization of chamber which stands as the ultimate reason behind a successful incubation. It is designed with polished stainless-steel shelves and semicircular arcs at corners for easy cleaning. It comes with 80 L to 233 L capacity range.
Specifications
| Chamber Volume | 233 L |
|---|---|
| Shelves | 3 (pcs) |
| Heating Method | Air-jacketed, PID Control |
| Temperature Range | RT + 5 ~ 55 ℃ |
| Ambient Temperature | RT + 5 ~ 30 ℃ |
| Temperature Stability | ± 0.1 ℃ |
| CO2 Range | 0 ~ 20 % V/V |
| CO2 Control Resolution | ± 0.1 % (IR sensor) |
| CO2 Recovery | (Door open 30 s, recovery to 5 %) ≤ 3 min |
| Temperature Recovery | Temperature Recovery (Door open 30 s, recovery to 37 ℃ ) ≤ 8 min |
| Humidity Method | Natural vaporization > 95 % |
| Interior Dimension (W × D × H) | 600 × 630 × 670 mm |
| Exterior Dimension (W × D × H) | 788 × 837 × 940 mm |
| Power | AC 220 V / 50 Hz |
| Power Consumption | 950 W |
Features
| Microprocessor-based PID controller with large LCD screen |
| Functions incorporated like Alarm function for temperature difference, over CO2 concentration, door open time, UV working status, etc. |
| Equipped with micro-organism filter at inlet for filtration of bacteria, dust, so that it supplies pure CO2 into the incubator |
| Separate temperature-limiting alarm system for safe usage |
| Auto-controller of fan speed to prevent sample damage |
| Door temperature controller prevents dewfall on glass door |
| Options are available to connect printer and computer for data recording (Optional) via RS-485 connector |
Applications
These air jacketed CO2 incubators are widely used for a broad range of applications that includes: Tissue engineering, In vitro fertilization, Neuroscience, Cancer research, Stem cell research, Regenerative medicine, Mammalian cell research.
Optional Accessories
| No. | Item |
|---|---|
| 1 | RS485 connector |
| 2 | Humidity Display |
| 3 | CO2 pressure releasing valve |
