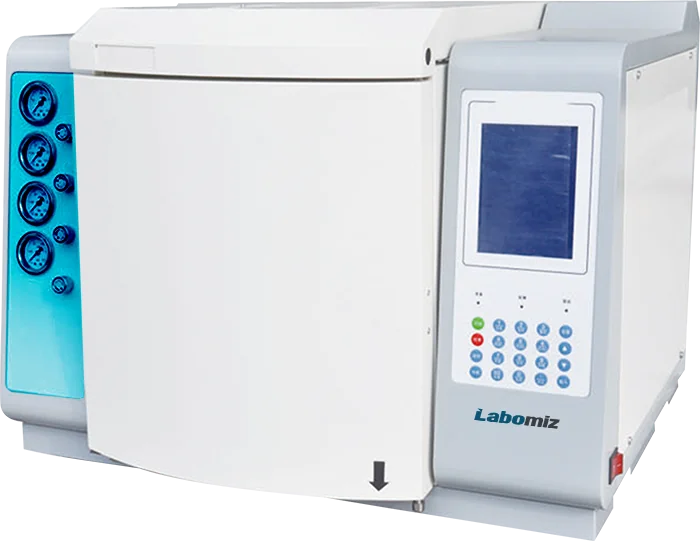

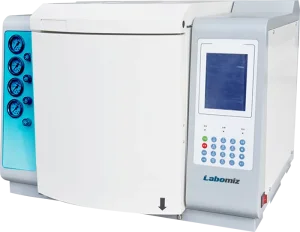

Gas Chromatography MGC-1B
Model: MGC-1B · Category: Chromatography
Gas Chromatography MGC-1B is equipped with a 16 phase temperature programme with a temperature range of RT to 450 °C. Features an APC controlled Flame Ionization Detector (FID) with high sensitivity for a range of analyses. Dual column compensation function effectively restrains baseline drift. Built-in provision to connect to internet for data transfer and automated programme upgradation. Packed and capillary column can be installed at the same time.
Specifications
| Power supply | AC 110 V / 220 V ± 10 % ; 50 Hz / 60 Hz |
|---|---|
| Dimensions ( W x D x H ) | 800 x 570 x 650 mm |
| Gross weight | 75 kg |
Features
| LCD display indicating temperature , time and gas flow |
| Large capacity oven ( can hold 2 pieces of 0.32 mm diameter capillary column ) |
| Packed and capillary column can be installed at the same time |
| Automated programme upgradation on connecting to internet |
| Dual column compensation function |
| Effective thermal insulation effect when temperature of oven , vaporizing chamber and detector reach 300 °C |
| Self-testing , power protection, keyboard lock , automatic ignition and anti-power mutation interference function |
Applications
Used in the analysis of oil extraction and refining industry, petrochemical analysis, gas industry, quality control of medicines, food and chemicals, in quality supervision of medicines, foods and chemicals and scientific research institutes
Standard Accessories
| Accessory No | Accessory |
|---|---|
| 1. | FID detector |
| 2. | Chromatography workstation software |
Optional Accessories
| Accessory No | Accessory |
|---|---|
| 1. | Sample Injection System |
| 2. | TCD detector |
| 3. | ECD detector |
| 4. | FPD detector |
| 5. | NPD detector |
| 6. | Chromatographic Column |
Oven Specifications
| Temperature range | RT ~ 400 °C |
|---|---|
| Temperature accuracy | ± 0.02 °8 |
| Temperature programme | 16 phase |
| Temperature heating rate | 40 °C / min |
Detector Specifications
| Hydrogen flame Ionization Detector ( FID ) | Detection limit : ? 3 x 10-12 g/s ( Sample : N-hexadecane ) |
|---|---|
| Baseline drift : ? 1 x 10-13 A/30 min | |
| Linear range : ? 107 | |
| Thermal Conductivity Detector ( TCD ) ( Optional ) | Sensitivity : ? 10000 mv.ml/mg ( Sample : N-hexadecane ) |
| Linear range : ? 105 | |
| Electron Capture Detector ( ECD ) ( Optional ) | Detection limit : ? 1 x 10-14 g/ml ( Sample : N-hexadecane ) |
| Linear range : ? 103 | |
| Flame Photometric Detector ( FPD ) ( Optional ) | Detection limit : ? 2 x 10-11 g/s ( S of Thiophene ) |
| Detection limit : ? 1 x 10-12 g/s ( P of Methyl parathion ) | |
| Linear range : ? 102 | |
| Linear range : ? 103 | |
| Nitrogen and Phosphorous Detector ( NPD ) ( Optional ) | Detection limit : ? 1 x 10-12 g/s ( Azobenzene ) |
| Detection limit : ? 1 x 10-12 g/s ( Marla Sulphur Phosphorous ) | |
| Linear range : ? 103 |
