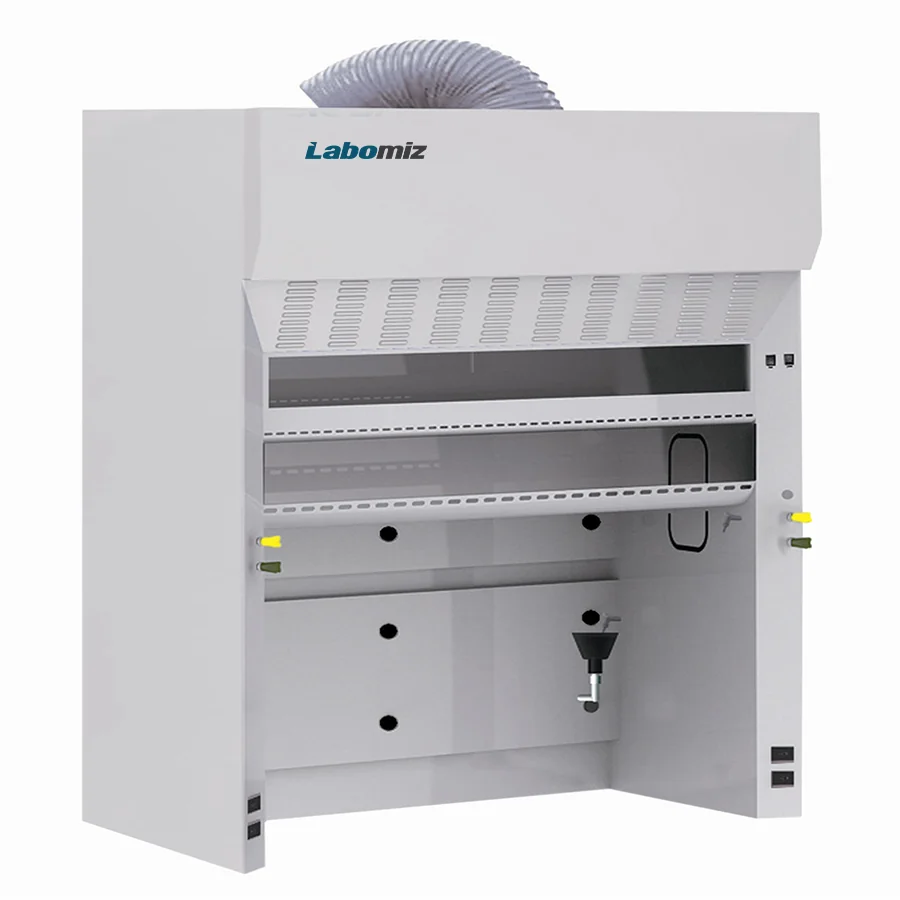

Walk-in Fume Hood MWFH-1A
Model: MWFH-1A · Category: Fume Hoods
Walk-in fume hood MWFH-1A is a floor mounted, dual layered unit made of exterior cold-rolled steel and interior melamine. External blower adjusts stream speed. Manual operating front glass window made of toughened glass. Standard PVC exhaust duct removes toxic fumes and provide excellent chemical resistance.
Specifications
| Internal size | 980 × 600 × 1650 mm |
|---|---|
| External size | 1200 × 800 × 2200 mm |
| Maximum opening | 1300 mm |
| Exhaust airflow volume | 1150 m3/h |
| Inflow air velocity | 0.3 m/sec ⁓ 0.8 m/sec |
| Front window | Toughened glass |
| LED lamp | 12 W × 2 |
| Illumination | ≥ 800 Lux |
| Vibration | ≤ 4 μm ( XYZ direct ) |
| Socket total load | ≤ 500 W |
| Noise | 62 dB |
| Power consumption | 400 W |
| Power supply ( AC ) | 220 V ±10 %, 50/60 Hz 110 V ±10 %, 60 Hz |
| Exhaust blower dimensions | 970 × 810 × 720 mm |
| Main body dimensions | 1400 × 1050 × 2430 mm |
Features
| Adjustable air speed |
| Four water proof socket |
| Manual front glass window ( height adjustable ) |
| Remote control water and gas valve |
| Anti-corrosive water tap |
| Phenolic resin coated work table ( Chemical resistance ) |
Applications
| No. | Item |
|---|---|
| 1 | Used to accommodate large apparatus in chemical laboratories. Used for testing and research purpose. |
