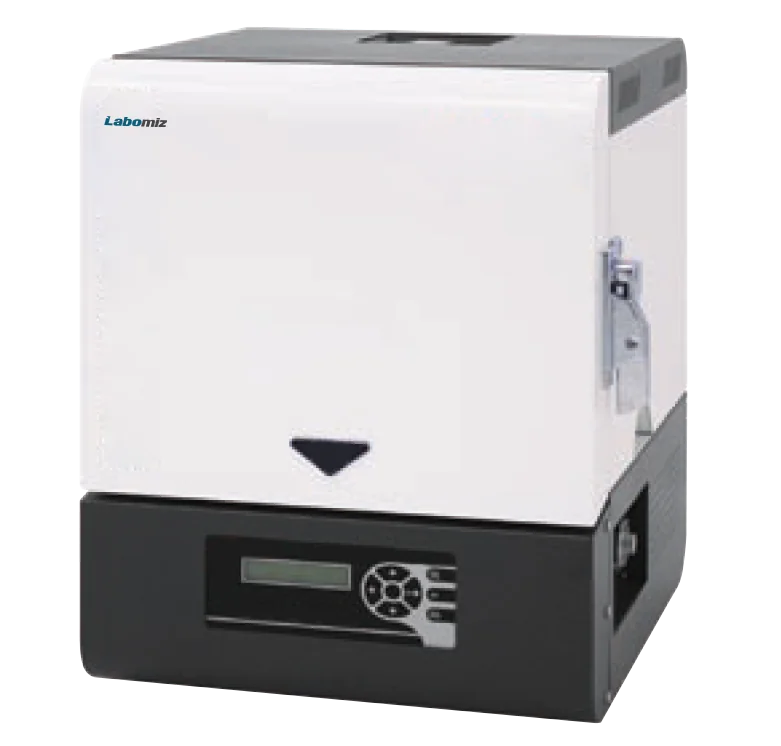

Muffle furnace MMFF-1C
Model: MMFF-1C · Category: Furnaces
Muffle furnace MMFF-1C is a table top unit with ceramic type heating chamber. Features PID controlled temperature regulation and sensor alarm functions. Optional forced exhaust system. Auto-tuning function is available and these muffle furnaces have independent overheat protector attached.
Specifications
| Capacity | 12 L |
|---|---|
| Internal dimensions | 200 x 300 x 200 mm |
| External dimensions | 480 x 550 x 680 mm |
| Maximum temperature range | 1100 °C |
| Heater capacity | 3.4 kW |
| Working temperature | 300 °C ~ 1000 °C |
| Temperature controller | Digital PID controller (Program type: 5 pattern 18 segment |
| Timer | 99 hr. 59 min |
| Sensor | K-type |
| Heater | Kanthal A1, 4 side heating |
| Insulation | Ceramic Fiber |
| Power | AC 220 V, 1 Ø ,50 Hz / 60 Hz |
| Weight | 40 kg |
Features
| Sensor alarm function |
| PID controlled temperature |
| Ceramic Fiber located on the left and right side absorbs the heat |
| Temperature compensation to adjust the systems performance |
| Auto-tuning function |
| Oxygen, nitrogen and an inert gas that can flow is optional |
| Normal Non-programmed type is optional |
| PC control function is optional |
| RS-232C function is optional |
Applications
Used in industries and biotechnology research laboratories in providing heat treatment, melting of the glass, melting the metal and casting molding.
Optional Accessories
| Accessory Number | Accessory |
|---|---|
| 1 | Heat-resistant gloves |
| 2 | Crucible |
| 3 | Crucible tongs |
| 4 | Ceramic fiber plate |
