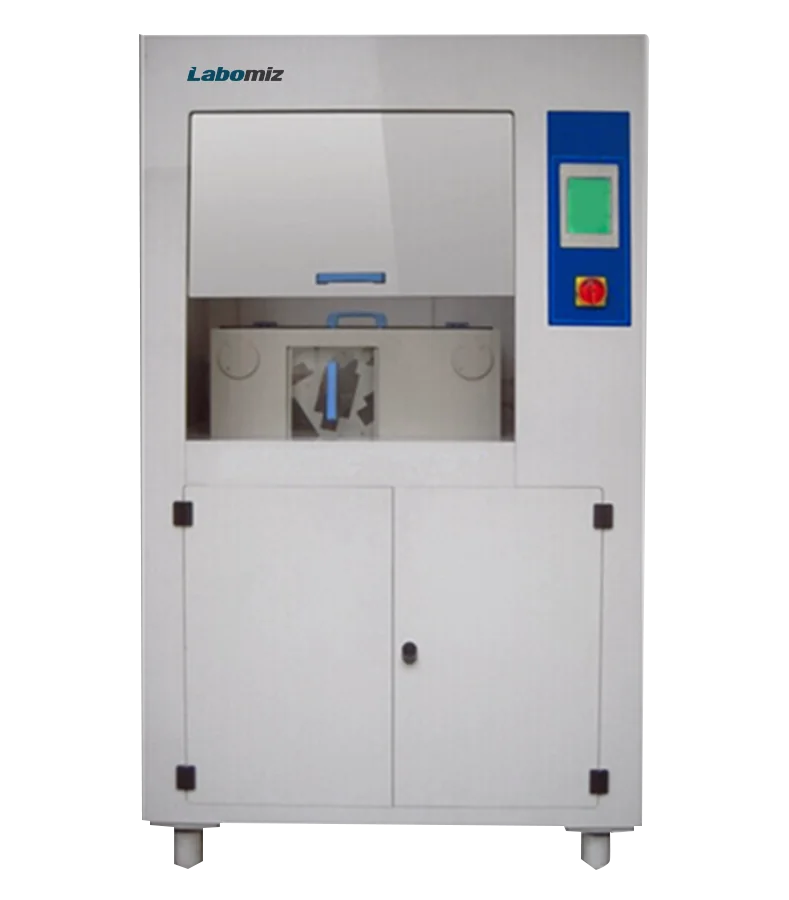

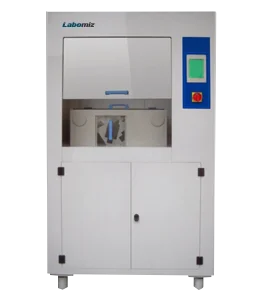

Glassware Washing Machine MGWM-1A
Model: MGWM-1A · Category: Glassware Washing Machine
Glassware washing machine MGWM-1A is a fully automated CPU SCM controlled laboratory glassware cleansing unit. It is characterized with excellent washing and anti-bacterial thermal disinfection with blast drying function. The inbuilt piping systems with effective valves and pumps enable efficient spray cleaning and heat sterilization.
Specifications
| Heating system power | 3000 W |
|---|---|
| Drying system power | 2000 W |
| Ultrasonic power | 500 W |
| Maximum operating power | 3500 W |
| Ambient temperature | 5 °C ~ 40 °C |
| Relative humidity | < 85 % |
| Power frequency | 50 Hz / 60 Hz ± 1 % |
| Power supply | AC 220 V ± 10 % |
| Dimensions | 1100 × 780 × 1900 mm |
| Weight | 300 kg |
Features
| Digital LCD touch screen promotes visual monitoring and operational accessibility |
| Real time display of washing temperature and drying air temperature |
| 316L stainless steel double walled internal structure |
| Insulated anti-corrosive external structure |
| One touch 6 preset cleaning procedures (washing, rinsing, ultrasound rinsing, blast drying, washing temperature, drying temperature) |
| Automatic power off by temperature control relay |
| Automatic alarm indication on absence of washing liquid and distilled water |
Applications
Used for automatic efficient washing and thermal disinfection of laboratory glassware in the research laboratories, universities, petroleum offshore, etc.
