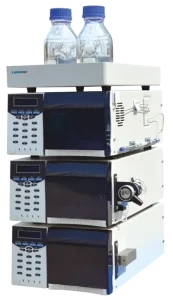

High performance liquid chromatography MHPLC-1B

Name: High performance liquid chromatography MHPLC-1B
Brand: Labomiz
SKU: MHPLC-1B

Model: MHPLC-1B · Category: HPLC

High performance liquid chromatography MHPLC-1B is a unit with a flow range 0.001 mL / min to 10.000 mL / min. It has a UV detector of wavelength range 190 nm to 700 nm and a deuterium light source which has high stability and high-intensity.

Specifications

Pump specifications

Double plunger reciprocating pump	Binary high pressure gradient pump(2 set)
Flow range	0.001 mL / min ̴ 10.000 mL / min
Setting step size	0.001 mL / min
Flow accuracy	≤ ± 0.3 % ( 1.00 ml / min, H₂O , R.T. , 8.5 MPa )
Flow stability	RSD ≤ 0.1 % ( 1.00 ml / min, H₂O , R.T , 8.5 MPa )
Maximum pressure	42 Mpa
Display pressure error	≤ ± 3.0 %
Pressure fluctuation	≤ 1.0 %
Power dissipation	80 W

Detector specifications

Wavelength repeatability	± 0.1nm
Wavelength accuracy	≤ ± 1.0 nm
Spectrum band width	8 nm
Response time	0.0 sec ̴ 4.9 sec
Linearity range	1.8 AU ( 5 % )
Baseline noise	≤ ± 1×10 – 5 AU
Wavelength range	190 nm - 700 nm
Baseline drift	≤2.0 × 10 - 4 A U / h
Minimum detectable concentration	4.0×10-9 g / mL (Naphthalene in Methanol Solution)
Detector cell	Optical Path—10 mm
	Volume—10 μL
Light source	Deuterium Lamp
Power dissipation	100 W
Power supply	AC 110 V / 220 V ± 10 %, 50 Hz / 60 Hz
