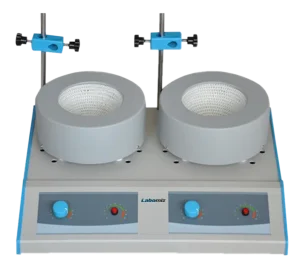

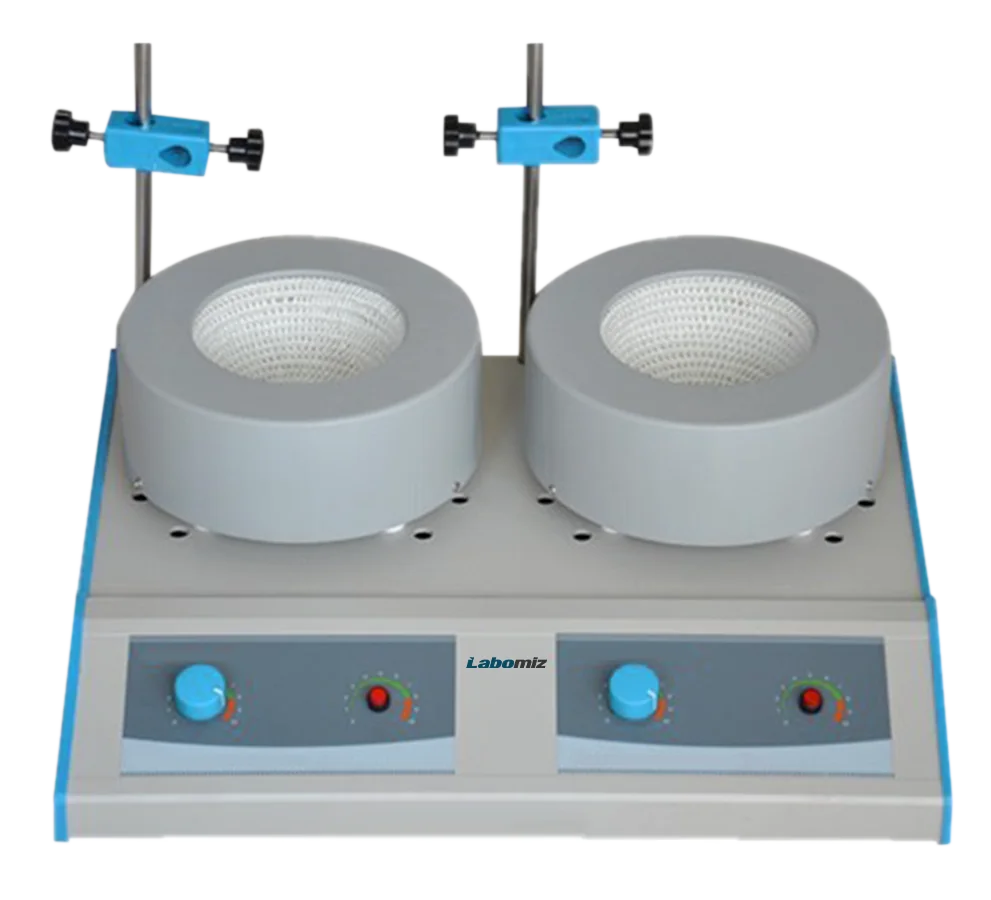

Analog 2-Position Heating Mantle MTPM-1C
Model: MTPM-1C · Category: Heating Mantle
Analog 2-Position Heating Mantle MTPM-1C is a table top unit with a capacity of 250 mL. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C.
Specifications
| Capacity | 250ml |
|---|---|
| Power | 216 W |
| Temperature | 380 °C |
| Temperature accuracy | ± 5 °C |
| Position | 2 |
| Voltage | 160 V ̴ 240 V, 110 V ̴ 120 V |
Features
| Capacity of 250 mL |
| Continuous working time |
| Alkali-free glass fiber |
| PID temperature control |
| Insulating course material of alumina silicate fiber |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
| Accessory No. | Accessory | Quantity |
|---|---|---|
| A1 | Removable holder | 1 |
| A2 | Clamp with screw | 1 |
| A3 | Inner Thermocouple (4 - spin) | 1 |
| A4 | Outer Thermocouple (4 - spin) | 1 |
| · Stainless Steel Length: 235mm | ||
| · Wire length : 1000mm | ||
| A5 | Magnetic bead | 1 |
| · Designed specifically for round bottom flasks | ||
| · PTFE - coated | ||
| · Length: 20mm | ||
| · Diameter : 10 mm |
