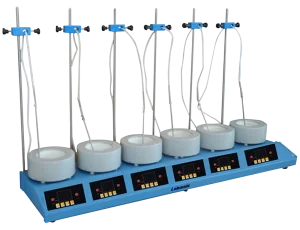

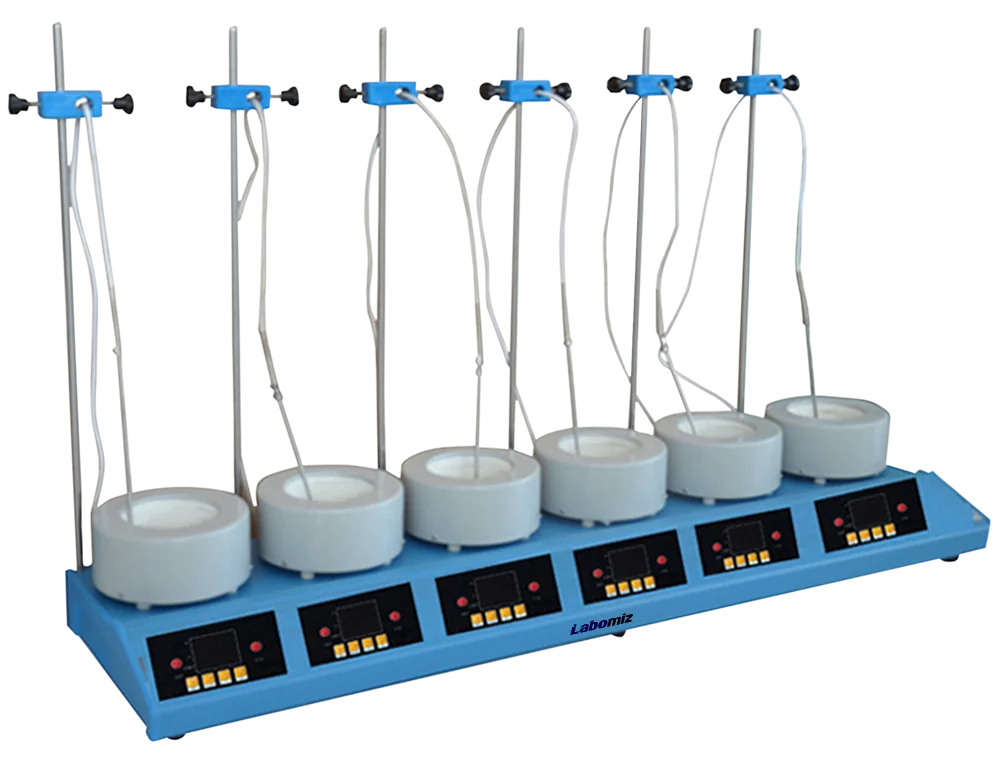

Analog 6-Position Heating Mantle MSPM-3B
Model: MSPM-3B · Category: Heating Mantle
Analog 6-Position Heating Mantle MSPM-3B is an intelligent digital display for both stirrer and temperature with a capacity of 100 mL. It has a stirring speed range of 0 rpm to 2500 rpm. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C.
Specifications
| Capacity | 100 ml |
|---|---|
| Power | 130 W |
| Temperature | 380 °C |
| Temperature accuracy | ± 1 °C |
| Stirring speed range | 0 rpm ̴ 2500 rpm |
| Speed accuracy | ± 1 rpm |
| Position | 6 |
| Voltage | 160 V ̴ 240 V, 110 V ̴ 120 V |
Features
| Capacity of 100 mL |
| Continuous working time |
| Alkali-free glass fiber |
| PID temperature control with inner and outer thermocouple |
| Insulating course material of alumina silicate fiber |
Applications
| No. | Item |
|---|---|
| 1 | Used in industrial, agricultural, civil, national defense, science and technology and health care and other fields. |
Standard Accessories
| Accessory No. | Accessory | Quantity |
|---|---|---|
| A1 | Removable holder | 1 |
| A2 | Clamp with screw | 1 |
| A3 | Inner Thermocouple (4 - spin) | 1 |
| A4 | Outer Thermocouple (4 - spin) | 1 |
| · Stainless Steel Length: 235mm | ||
| · Wire length : 1000mm | ||
| A5 | Magnetic bead | 1 |
| · Designed specifically for round bottom flasks | ||
| · PTFE - coated | ||
| · Length: 20mm | ||
| · Diameter : 10 mm |
