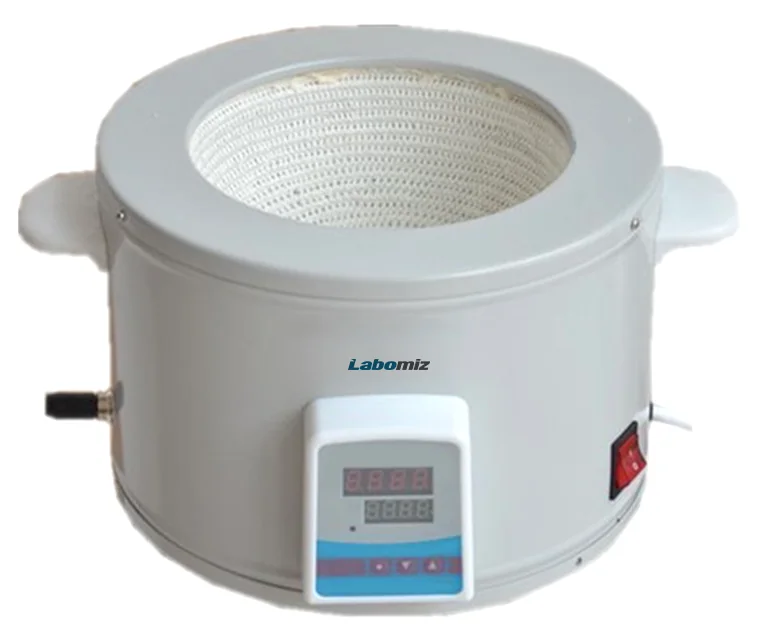

Intelligent Thermostatic Heating Mantle MITHM-1F
Model: MITHM-1F · Category: Heating Mantle
Intelligent Thermostatic Heating Mantle MITHM-1F is a table top unit with a capacity of 2 L. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.
Specifications
| Capacity | 2 L |
|---|---|
| Power | 650W |
| Temperature | 380 °C |
| Temperature accuracy | ± 1 °C |
| Voltage | 165 V ̴ 240 V, 110 V ̴ 120 V |
Features
| Capacity of 2 L |
| Continuous working time |
| Alkali-free glass fiber |
| PID temperature control |
| Customized mantle available |
| Insulating course material of alumina silicate fiber |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
| Accessory No. | Accessory | Quantity |
|---|---|---|
| A1 | Removable holder | 1 |
| A2 | Clamp with screw | 1 |
| A3 | Inner Thermocouple (4 - spin) | 1 |
| A4 | Outer Thermocouple (4 - spin) | 1 |
| · Stainless Steel Length: 235mm | ||
| · Wire length : 1000mm | ||
| A5 | Magnetic bead | 1 |
| · Designed specifically for round bottom flasks | ||
| · PTFE - coated | ||
| · Length: 20mm | ||
| · Diameter : 10 mm |
