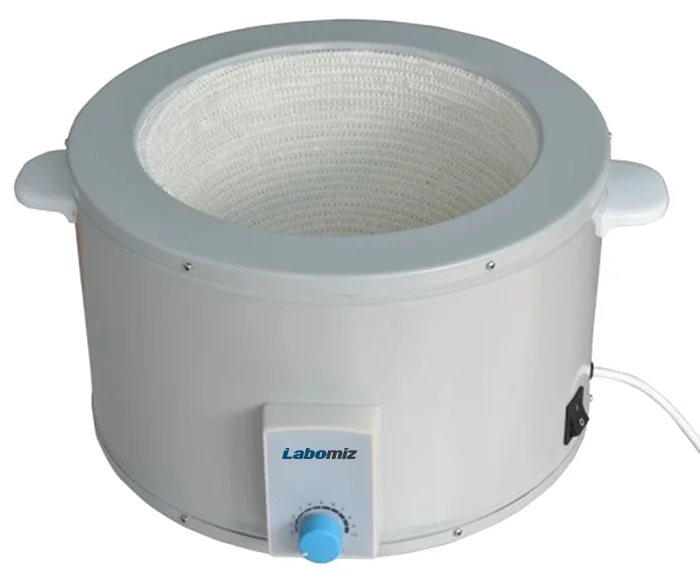

Manual Control Heating Mantle MMCM-1H
Model: MMCM-1H · Category: Heating Mantle
Manual Control Heating Mantle MMCM-1H is a table top heating mantle with a capacity of 5 L. It features an LED temperature display and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C.
Specifications
| Capacity | 5 L |
|---|---|
| Power | 1100 W |
| Temperature | 380 °C |
| Temperature accuracy | ±5 °C |
| Voltage | 167 V ̴̴ 240 V , 110 V ̴̴ 120 V |
Features
| Capacity of 5 L |
| Continuous working time |
| Alkali-free glass fiber |
| LED display |
| Insulating course material of alumina silicate fiber |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
| Accessory No. | Accessory | Quantity |
|---|---|---|
| A1 | Removable holder | 1 |
| A2 | Clamp with screw | 1 |
| A3 | Inner Thermocouple (4 - spin) | 1 |
| A4 | Outer Thermocouple (4 - spin) | 1 |
| · Stainless Steel Length: 235mm | ||
| · Wire length : 1000mm | ||
| A5 | Magnetic bead | 1 |
| · Designed specifically for round bottom flasks | ||
| · PTFE - coated | ||
| · Length: 20mm | ||
| · Diameter : 10 mm |
