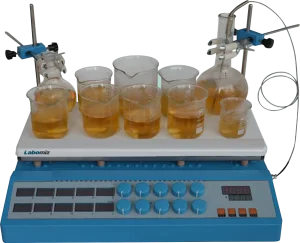

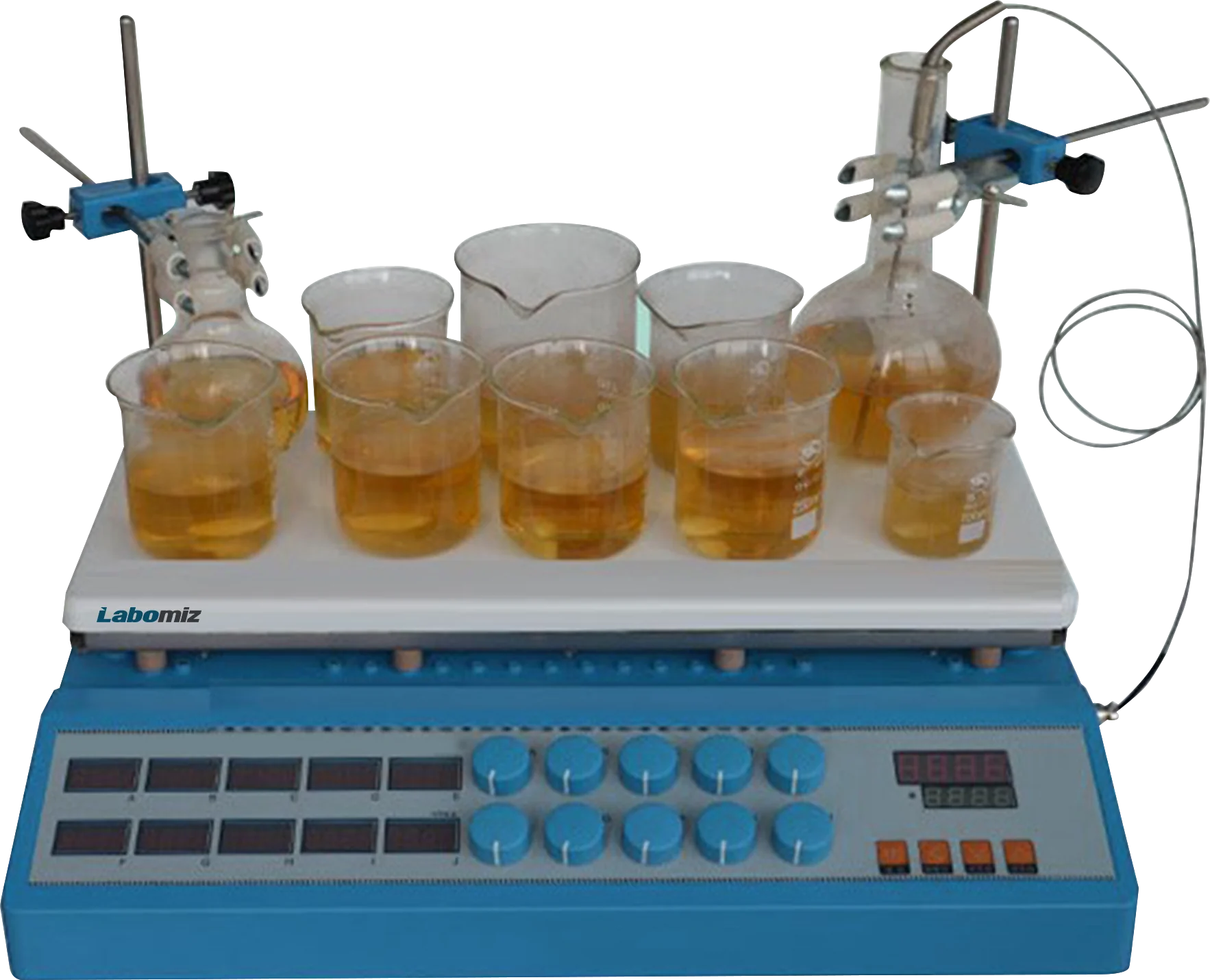

10 Point hotplate stirrer MHPS-6A
Model: MHPS-6A · Category: Hotplate Stirrers
10 Point hotplate stirrer MHPS-6A is a 10-point black ceramic top hotplate stirrer with a stirring range of 0 rpm to 1400 rpm. Features a stirring capacity for flasks ranging from 50 ml to 500 ml. It is equipped with PID controlled temperature of 350 °C for uniform heat distribution. It offers digital temperature control and an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple, controls and measures the hotplate stirrer temperature.
Specifications
| Stirring capacity | 50 ml ̴ 500 ml |
|---|---|
| Top ceramic dimension | 450 x 190 x 20 mm |
| Power | 750 W |
| Temperature | 350 °C |
| Stirring range | 0 rpm ~ 1400 rpm |
| Stirring speed accuracy | ± 1 rpm |
| Temperature accuracy | ±1 °C |
| Motor power | 8 W |
| Weight | 13 kg |
Features
| Stirring range from 0 rpm to 1400 rpm |
| Continuous working time |
| PID controlled temperature |
| Black ceramic top offers scratch resistance |
| Corrosion resistant in salt water and acid |
| Electronic speed control for constant speed even during change in load |
| Individual unit operation or all units controlled operational modes (Flexible) |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
| Accessory No | Accessory | Quantity |
|---|---|---|
| A1 | Removable holder | 1 PC |
| A2 | Clamp with screw | 1 PC |
| A3 | Inner Thermocouple 4-spin | 1 PC |
| A4 | Outer Thermocouple 4-spins | 1 PC |
| A8 | Magnetic stir bar | 10 PC |
| · White PTFE-coated | ||
| · Length: 30mm | ||
| · Diameter :6 mm |
