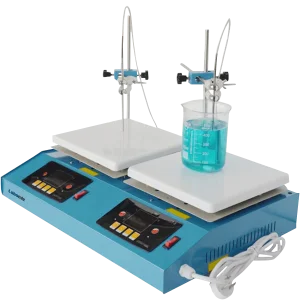

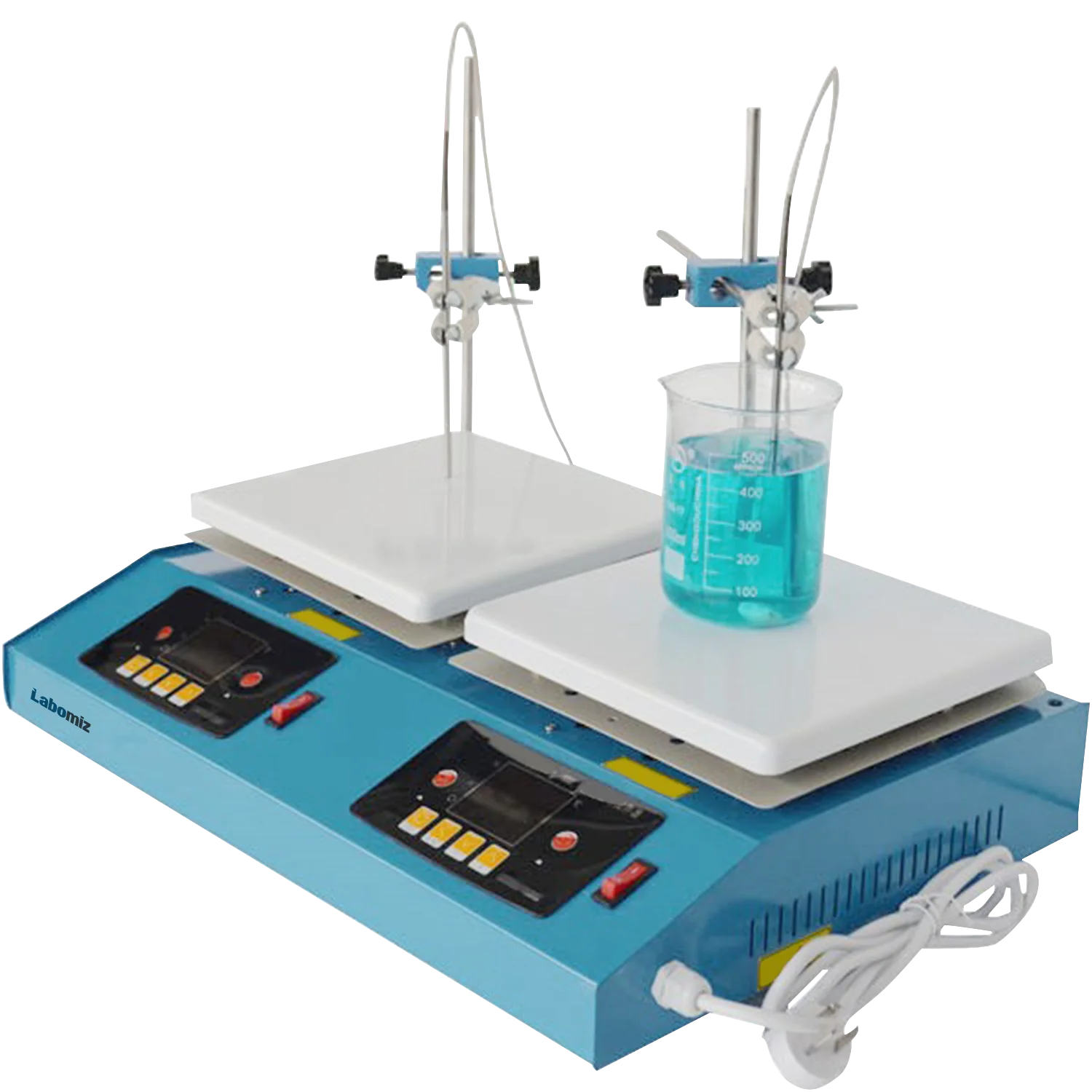

2-Position hotplate stirrer MHPS-1D
Model: MHPS-1D · Category: Hotplate Stirrers
2-Position hotplate stirrer MHPS-1D is a black ceramic top hotplate stirrer with a stirring range of 0 rpm to 2000 rpm. Features a stirring capacity for flasks ranging from 50 ml to 15 L. It is equipped with PID controlled temperature of 400 °C for uniform heat distribution. It offers digital temperature control and an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple, controls and measures the hotplate stirrer temperature.
Specifications
| Stirring capacity | 50 ml ̴ 15 L |
|---|---|
| Top ceramic dimension | 280 mm × 280 mm |
| Power | 750 W |
| Temperature | 400 °C |
| Stirring range | 0 rpm ~ 2000 rpm |
| Stirring speed accuracy | ± 1 rpm |
| Temperature accuracy | ± 1 °C |
| Voltage | 160 V ̴ 240 V, 110 V ̴ 120 V |
| Motor power | 40 W, DC 20 V |
| Weight | 18 kg |
Features
| Stirring range from 0 rpm to 2000 rpm |
| Black ceramic top offers scratch resistance |
| Corrosion resistant in salt water and acid |
| Continuous working time |
| PID controlled temperature |
| Electronic speed control for constant speed even during change in load |
| Individual unit operation or all units controlled operational modes (Flexible) |
Applications
Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields
Standard Accessories
| Accessory No | Accessory | Quantity |
|---|---|---|
| A1 | Removable holder | 2 PCS |
| A2 | Clamp with screw | 2 PCS |
| A3 | Inner Thermocouple 4-spin | 2 PCS |
| A4 | Outer Thermocouple 4-spins | 2 PCS |
| A5 | 4 prong stainless steel clamp opens to 31/2" | 2 PCS |
| A8 | Magnetic bead | 2 PCS |
| · Designed specifically for round bottom flasks | ||
| · PTFE-coated | ||
| · Length:20mm | ||
| Diameter :10mm |
