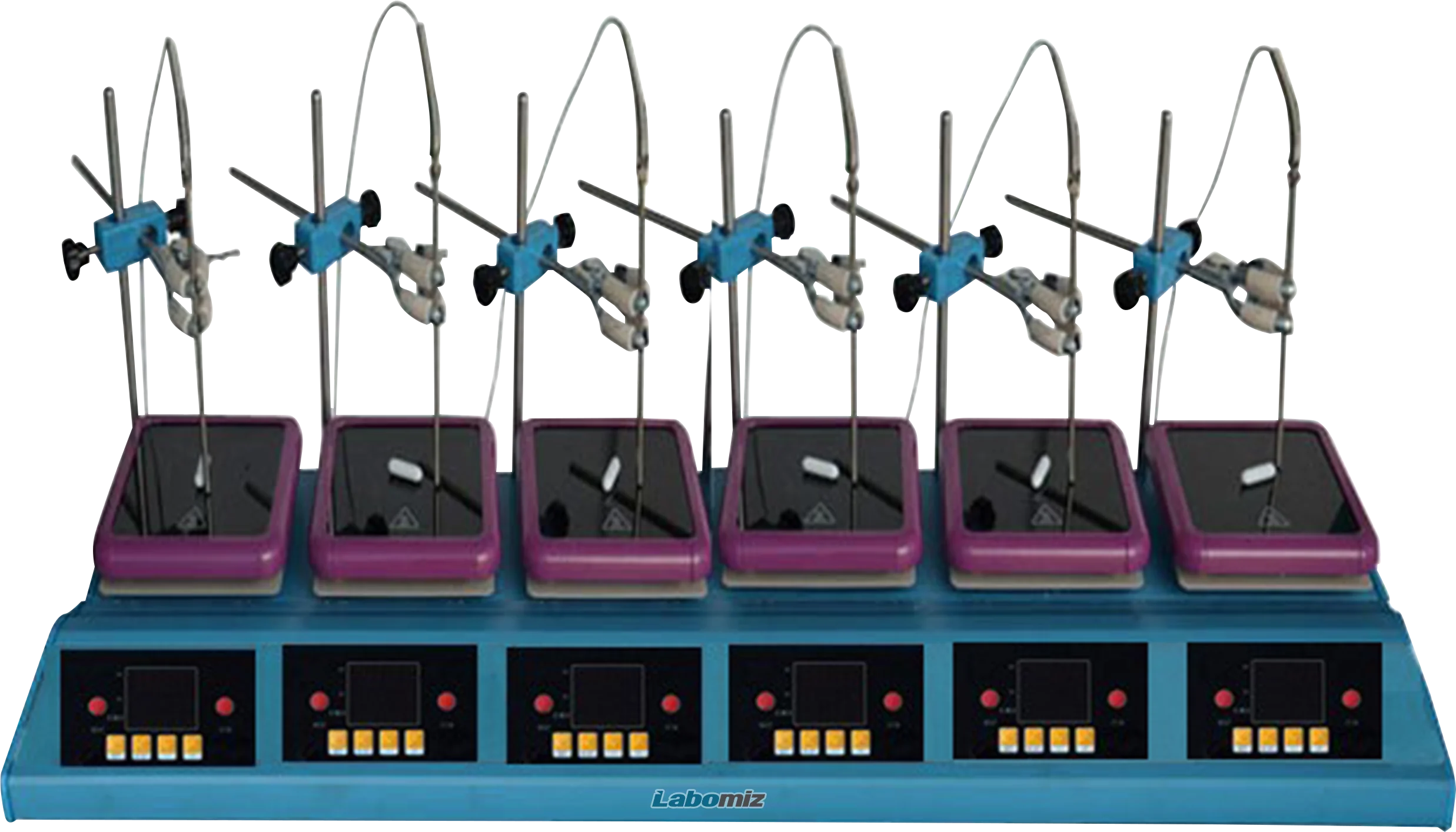

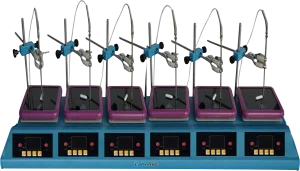

6-Position hotplate stirrer MHPS-5B
Model: MHPS-5B · Category: Hotplate Stirrers
6-Position hotplate stirrer MHPS-5B is a black ceramic top hotplate stirrer with a stirring range of 0 rpm to 2000 rpm. Features a stirring capacity for flasks of 2 L. It is equipped with PID controlled temperature of 400 °C for uniform heat distribution. It offers digital temperature control and an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple, controls and measures the hotplate stirrer temperature.
Specifications
| Stirring capacity | 2 L |
|---|---|
| Top ceramic dimension | 180 mm × 180 mm |
| Power | 410 W |
| Temperature | 400 °C |
| Stirring range | 0 rpm ~ 2000 rpm |
| Stirring speed accuracy | ± 1 rpm |
| Temperature accuracy | ± 1° C |
| Voltage | 160 V ̴ 240 V |
| Motor power | 8 W, DC 14 V |
| Weight | 28 kg |
Features
| Stirring range from 0 rpm to 2000 rpm |
| Square plate and round plate available |
| Continuous working time |
| Black ceramic top offers scratch resistance |
| Corrosion resistant in salt water and acid |
| Electronic speed control for constant speed even during change in load |
| Individual unit operation or all units controlled operational modes (Flexible) |
Applications
| No. | Item |
|---|---|
| 1 | Used in industrial, agricultural, civil, national defense, science and technology and health care and other fields. |
Standard Accessories
| Accessory No | Accessory | Quantity |
|---|---|---|
| A1 | Removable holder | 6 |
| A2 | Clamp with screw | 6 |
| A3 | Inner Thermocouple 4-spin | 6 |
| A4 | Outer Thermocouple 4-spins | 6 |
| A6 | Stir bar | 6 |
| A7 | Four-finger Extension Clamp. Length300mm | 6 |
