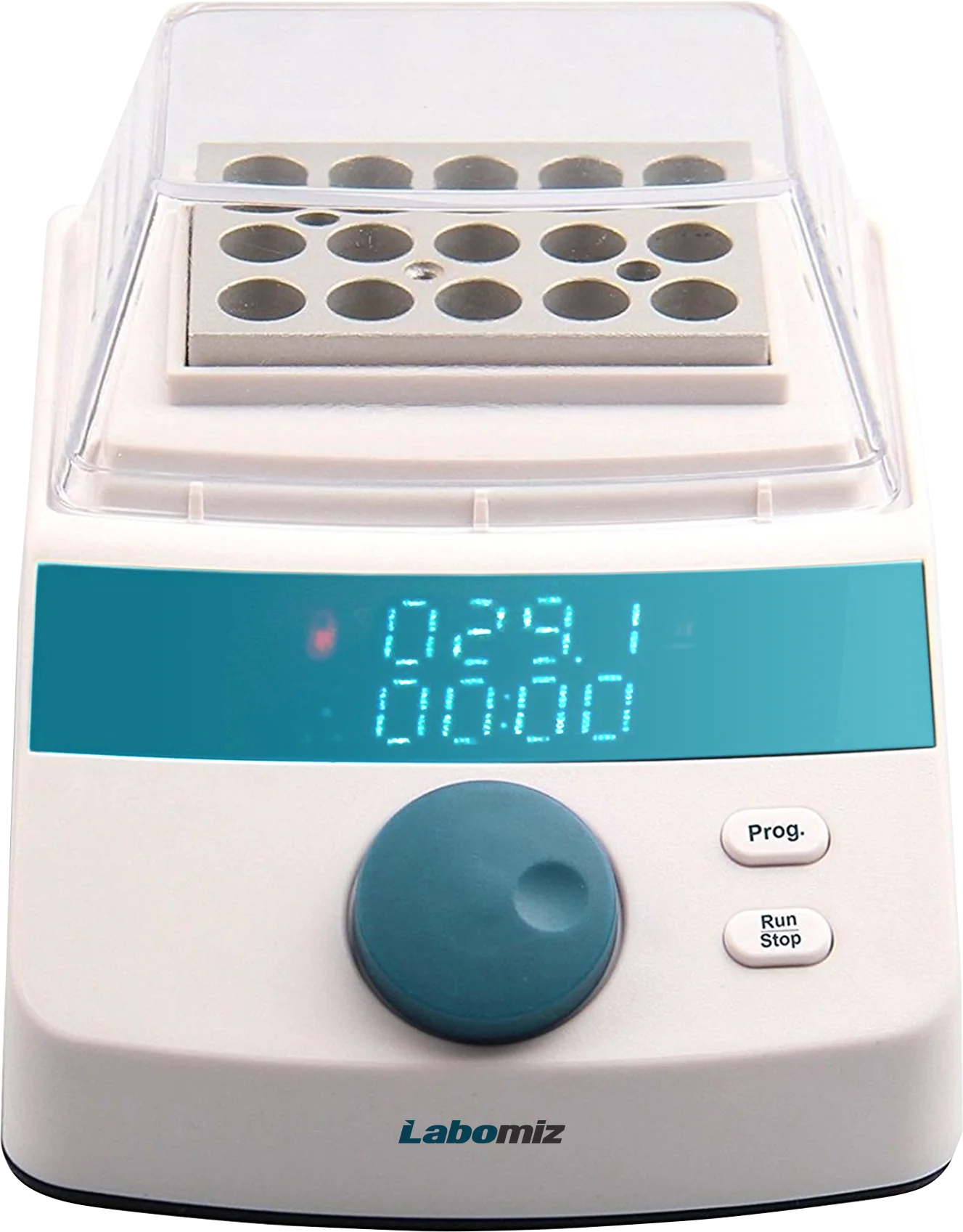

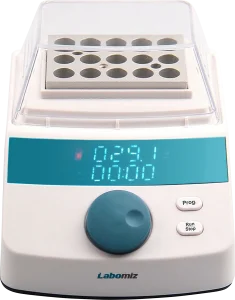

Mini Dry Bath Incubator MMDI-1A
Model: MMDI-1A · Category: Incubators
Mini dry bath incubator MMDI-1A is a portable unit with a temperature range from 5°C to 100°C. Features a clear lid for user to view sample processing. Interchangeable blocks facilitates easy and convenient cleaning, disinfecting, preventing cross contamination caused during processes. Its light weight and low operational voltage (as low as 12 V) feature enables it to be carried and handled with ease.
Specifications
| Temperature control range [°C] | 5 °C ~ 100 °C |
|---|---|
| Temp. control accuracy [°C] | ± 0.5°C |
| Display accuracy [°C] | ± 0.1°C |
| Heating Time | ≤ 15 mins |
| Timing Range | 0 ~ 99 h 59 min |
| Dimensions ( L × W × H ) | 164 x 116 x 98 mm |
| Net Weight | 1 kg |
Features
| 3D Digital wheel adjustment of time and temperature |
| Programmable operation can store up to 5 programs |
| LED display for easy visualizing of parameters (time and temperature) |
| Simultaneously displays preset/ actual time and temperature |
| Various interchangeable blocks for different sample concentration |
| Low operation voltage (12v) - can work with a car charger |
Applications
Used in sample preparation, enzyme preservation, enzyme-substrate reactions, DNA amplification, electrophoresis gel degeneration and serum coagulation.
Optional Accessories
| Accessory No | Block Capacity |
|---|---|
| B1 | 24 x 0.5 ml block |
| B2 | 40 x 0.2 ml block |
| B3 | 15 x 1.5 ml block |
| B4 | 15 x 2.0 ml block |
| B5 | 8- 12.5 x 12.5 x 32 mm |
| (used in cuvette) | |
| B6 | 4 x 15 ml block |
| B7 | 2 x 50 ml block |
