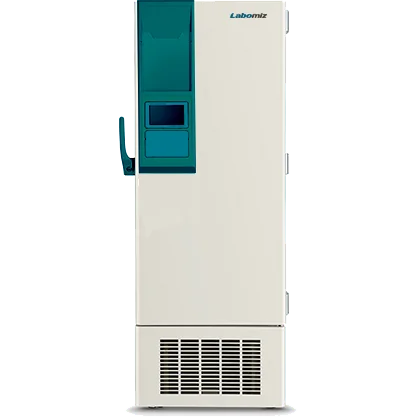

-86°C Upright ULT freezer MUUF-2M
Model: MUUF-2M · Category: Lab Freezer
The -86°C Upright ULT freezer MUUF-2M is designed using four casters for easy handling and vacuum release port for easy access to the sample after opening of the door and preventing unauthorized access from the lockable door. Its inner door with double silicon gasket seal prevents loss of cold air and three adjustable stainless steel shelves. This -86°C Upright ULT freezer is complied with international standards such as CE, ISO9001, ISO14001, ISO13485. This -86°C Upright ULT freezer is CFC free Danfoss compressor, mixture of refrigerants.
Specifications
| Capacity | 398 L |
|---|---|
| External Dimension | 785 x 1041 x 1947 mm |
| Internal Dimension (W x D x H) | 440 × 696 × 1266 mm |
| Evaporator | Coil evaporator |
| Power Supply | 220 V / 50 Hz |
| Input Power | 980 W |
| Net Weight | 280 Kg |
| Gross Weight | 300 Kg |
Features
| Microprocessor-based temperature controller with digital temperature display allow user to maintain temperature between -10 °C to -86 °C with 1 °C precision control |
| Made up of stainless steel body with 100-155mm thick foaming insulation |
| Two SC15CLX.2 compressors are used in parallel connection to reduce noise and improve the cooling temperature |
| Key board lock and password protected configuration page is installed with delayed start and safe stop interval between restart and being terminated |
| Equipped with audio and visual alarm for power failure and system failure |
| CFC free Danfoss compressor with German EBM fan electromotor |
| Refrigerant used is a mixture of R134a, R404a, R23, R410A, N2 |
| With 72 hours battery backup for printer and controller display |
| Optional: chart recorder, CO2 back up, storage racks/boxes, remote alarm system |
Applications
The -86 °C ultra low temperature upright freezer is suitable for use in medical, clinical, food industries, preservation, blood banks, university laboratories, etc.
