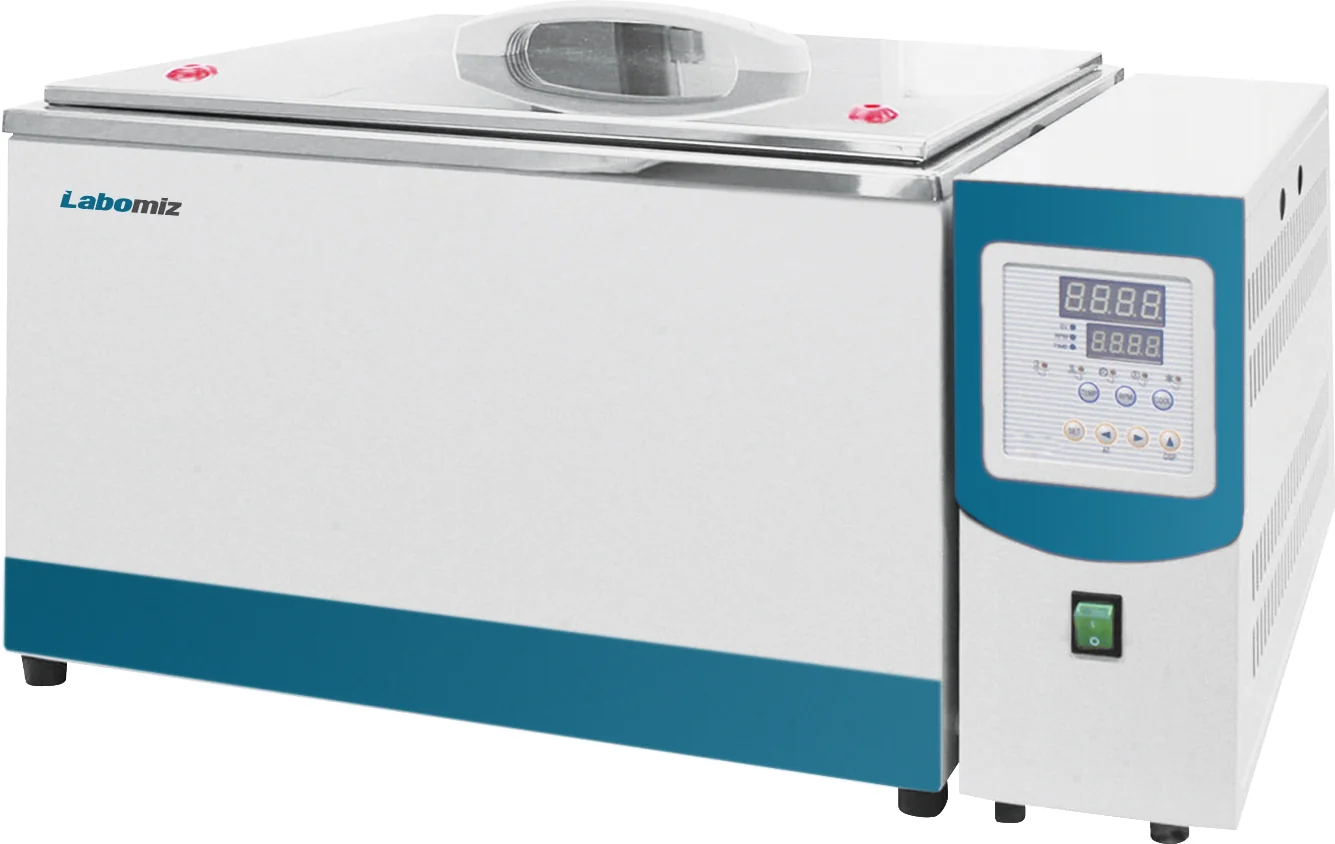

Water bath shaker MWBS-1D
Model: MWBS-1D · Category: Lab Shakers and 3 D Rockers
Water bath shaker MWBS-1D is a table top unit with reciprocal shaking motion. It is equipped with digital PID temperature controller and additional safety features which prevents harm to the user. The inert material is stainless steel and the external material is powder coated steel.
Specifications
| Flask capacity | 45 L |
|---|---|
| Internal tank size ( L x D x H ) | 600 x 300 x 300 mm |
| External dimension (L x D x H) | 790 x 340 x 390 mm |
| Heater capacity | 2500 W |
| Speed | 50 rpm to 200 rpm |
| Temperature range | + 5 °C to 98 °C |
| Temperature uniformity | ± 0.1 °C at 37 °C |
| Temperature sensor | PT – 100 Ω |
| Timer | 99 hr. 59 min |
| Power | AC 220 V, 50 Hz / 60 Hz |
Features
| Digital PID temperature controller |
| Digital display time and speed controller |
| Stainless steel heater |
| Reciprocal shaking motion |
| Over current circuit breaker |
| DC motor |
| Spring rack standard plate |
Applications
Used in pharmaceutical industries, clinical and biomedical experiments that need uniformity and accuracy with temperature control.
