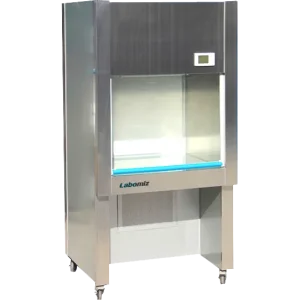

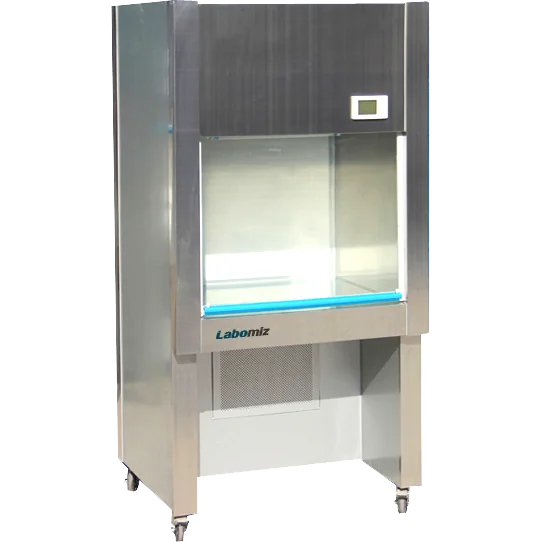

Vertical Laminar Air Flow Cabinet MVLAF-2A
Model: MVLAF-2A · Category: Laminar Air Flow Cabinet
Vertical Laminar Air Flow Cabinet MVLAF-2A is a clean air workstation which provides a particle free ultra-clean working environment for aseptic operations. This is carried out by the 0.5 micron / 0.3 micron pore size HEPA filter providing the sterile air flow in the working area. Vertical laminar air flow MVLAF-2A is a single sided cabinet that works on the principle that the vertical unidirectional flow is within the cabinet and is therefore less susceptible to the contamination in the surrounding area.
Specifications
| Dimension of working area ( W x D x H ) | 700 x 615 x 580 mm |
|---|---|
| Dimension of filter ( W x D x H ) | 695 x 600 x 38 mm |
| Fluorescent lamp | 20 W |
| HEPA Filter | 0.5 micron / 0.3 micron |
| Clean grade | Grade 100 |
| No of bacteria | ≤ 0.5 per utensil / hr. |
| Half ventilation peak value | < 0.5 µM |
| Pre-filter | High efficiency nylon filter |
| UV lamp | 20 W |
| Controller type | Remote control |
| Noise | ≤ 62 dB |
| Airflow velocity | 0.25 m/s – 0.45 m/s |
| Power supply | AC 220 V / 50 Hz |
| Maximum Power Consumption | 400 W |
| Overall dimension ( W x D x H ) | 855 x 765 x 1765 mm |
| Weight | 150 kg |
Features
| Stainless steel corrosion proof work surface |
| Digital LCD display for fan speed , life of HEPA filter , lamp control |
| Excellent product protection |
| Alarm for HEPA filter replacement |
| Single sided – 1 person accommodative cabinet |
| Mobile glass window for easy visualization and protection from UV rays |
| LCD panel for operation of laminar flow cabinet by controller |
| Particle retention by HEPA filter - 0.5 micron / 0.3 micron |
| Fluorescent lamp – 20 W |
| Sterilization by UV lights – 20 W |
| Air flow velocity - 0.25 – 0.45 m/s |
| Noise level ? 62 dB |
| Efficient insulation and quiet operation |
Applications
Used in bio-assays and sterility testing, hospitals, pathological laboratories, microelectronics, optics, food and beverage, agriculture, animal husbandry, avionics, protection for open vessels of chemicals, solvents or powders , microbiological labs or other research control centers engaged in investigative work with sub-toxic materials
