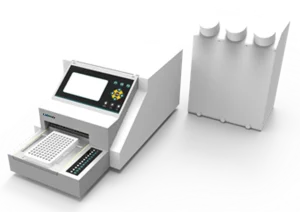

Click the image to view it full size
Microplate Washer MMPW-1A
Model: MMPW-1A · Category: Microplate Washer
Microplate washer MMPW-1A is a semi-automatic washer module for immunoassay processing system. It is characterized with automatic wash buffer selection and liquid level sensor. The washer eradicates specified residual volume after aspiration. Provision of distilled water purges manifold and avoids clogging.
Specifications
| Residual volume per well | < 2 µL |
|---|---|
| Number of plates | 96 well plates |
| Wash volume | 50 µL ~ 1000 µL |
| Dispense volume | 50 µL ~ 400 µL |
| Bottle capacity | 2 × 4 L wash bottles 1 × 4 L waste bottles |
| Number of wash heads | 1 × 8 1 × 12 |
| Accuracy | < 5 % |
| Precision | < 3 % |
| Power supply | 220 V; 50 Hz |
| Dimensions | 541 × 280 × 212 mm |
| Weight | 14 kg |
Features
| High throughput system ensures reliable result delivery |
| Adaptable with ELISA processing |
| Full control over relevant parameters |
| Individual activation and deactivation of adjacent columns |
| Predefinition and assignment of processing methods |
| Parallel plate processing without unnecessary plate transfer |
Applications
| No. | Item |
|---|---|
| 1 | Used in the fields of genetics, immunology, microbiology, genetics, pathology, etc. |
