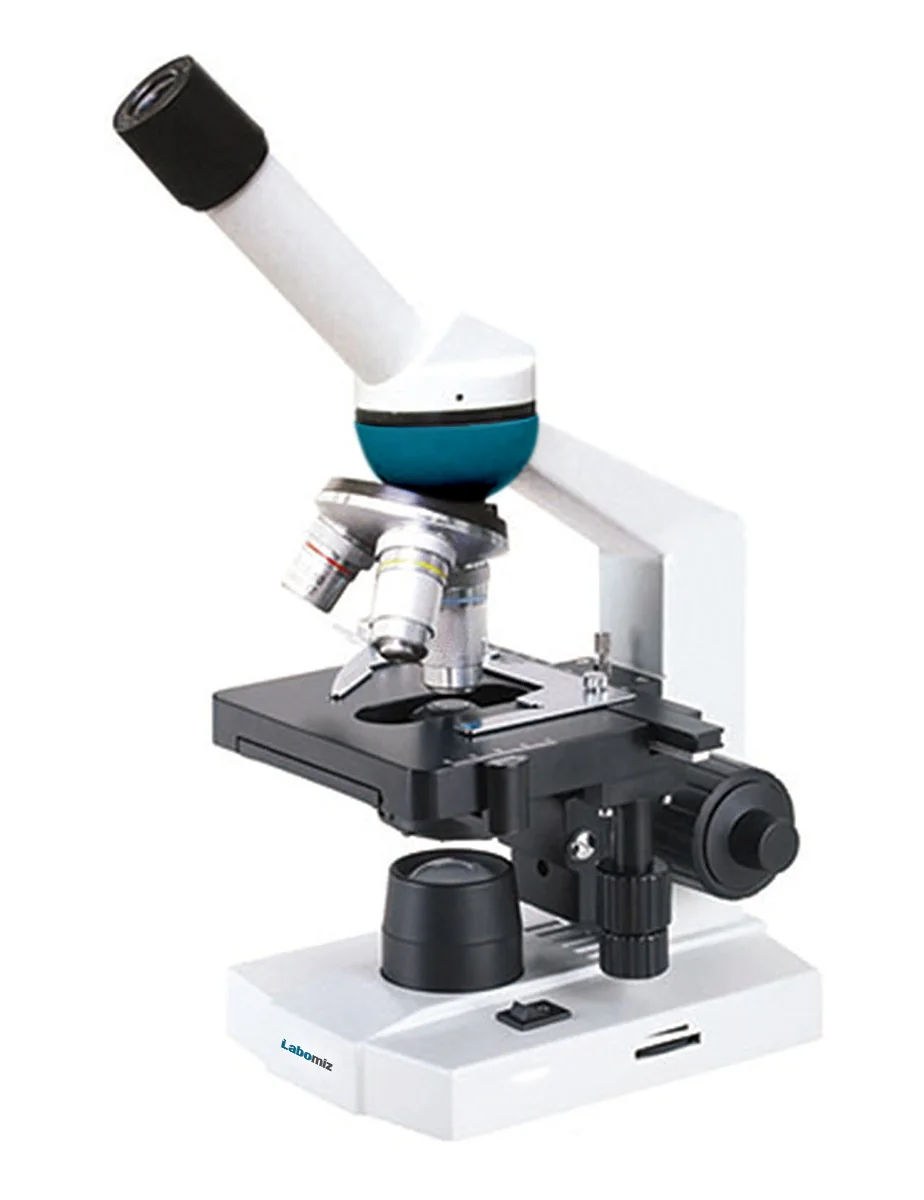

Biological Microscope MBIM-3A
Model: MBIM-3A · Category: Microscopes
Biological Microscope MBIM-3A is an instrument, deigned with wide field eyepiece and occupies small space. Optical head with inclination and 360° swivel function reduces fatigue while viewing. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.
Specifications
| Viewing head | Monocular |
|---|---|
| Viewing head inclination | Inclined at 45° , 360° rotatable |
| Eyepiece | WF10X/18 mm |
| Objective | Achromatic objective 4X, 10X, 40X (S) |
| Nosepiece | Triple |
| Stage | Plain stage with slide clips 110 mm x 120 mm |
| Focusing | Coaxial coarse and fine adjustment Moving range 10 mm |
| Condenser | Single lens NA 0.65 with Iris diaphragm |
| Illumination | 1W LED Illumination ; brightness adjustable |
| Power supply | AC 100 V ~ 220 V (Power adapter) DC 5 V (Input voltage) |
| Dimension | 280 x 200 x 400 mm |
| Weight | 4 kg |
Features
| Tripe nosepiece for high resolution image |
| High contrast achromatic objective |
| Spare parts: dust cover |
| Plane stage supports microscope slides |
Applications
Used in academic, research, physiology, biology, clinical areas for sample analysis, to observe cell, tissues and other specimens.
