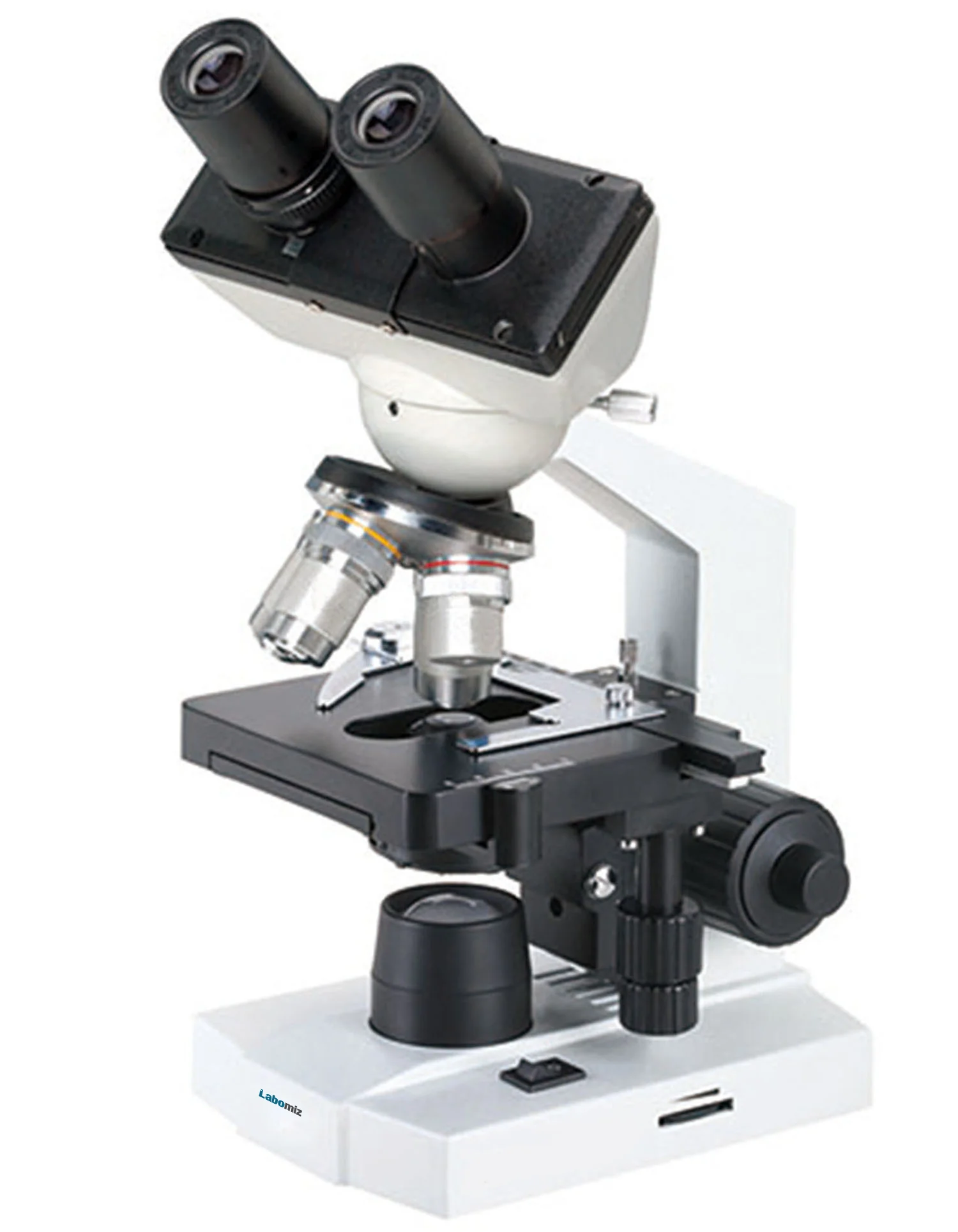

Biological Microscope MBIM-3D
Model: MBIM-3D · Category: Microscopes
Biological Microscope MBIM-3D is an instrument, deigned with wide field eyepiece and occupies small space. Optical head with inclination and 360° swivel function reduces fatigue while viewing. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.
Specifications
| Viewing head | Sliding Binocular |
|---|---|
| Eyepiece | WF10X/18 mm |
| Objective | Achromatic objective 4X, 10X, 40X, 100X(S) |
| Nosepiece | Quadruple |
| Stage | Double layer mechanical stage 110 mm x 120 mm/ 70 mm x 20 mm |
| Focusing | Coaxial coarse and fine adjustment Moving range 10 mm Abbe NA 1.2 with Iris diaphragm and blue filter Rack and pinion adjustment for condenser |
| Condenser | Abbe NA 1.2 with Iris diaphragm and blue filter Rack and pinion adjustment for condenser |
| Illumination | 1W LED Illumination ; brightness adjustable |
| Power supply | AC 100 V ~ 220 V (Power adapter) DC 5 V (Input voltage) |
| Dimension | 280 x 200 x 400 mm |
| Weight | 4 kg |
Features
| Tripe nosepiece for high resolution image |
| High contrast achromatic objective |
| Spare parts: dust cover |
| Plane stage supports microscope slides |
Applications
Used in academic, research, physiology, biology, clinical areas for sample analysis, to observe cell, tissues and other specimens.
