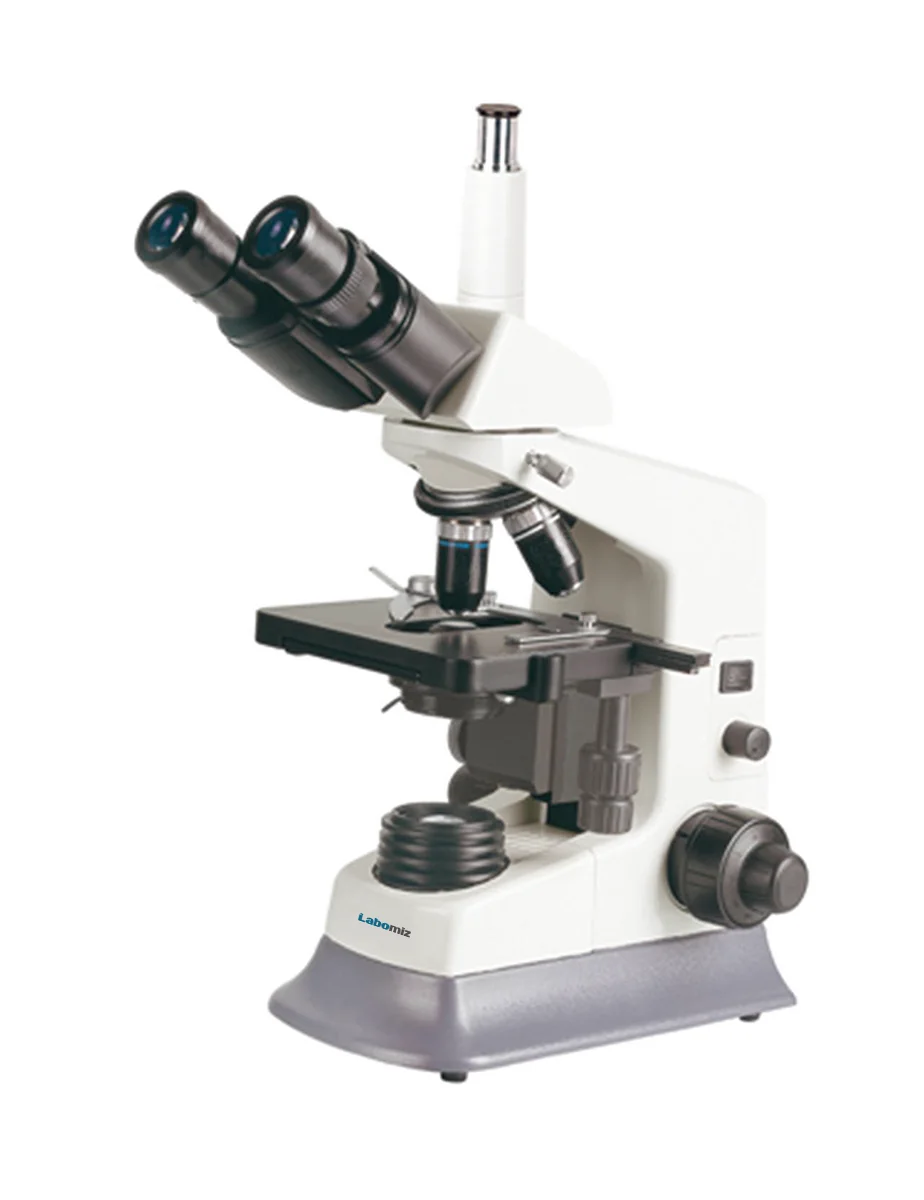

Biological Microscope MBIM-5E
Model: MBIM-5E · Category: Microscopes
Biological microscope MBIM-5E is an instrument with advanced alignment function for sharp specimen image. Optical head with inclination and 360° swivel function reduces fatigue while viewing. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.
Specifications
| Viewing head | Seidentopf Trinocular |
|---|---|
| Viewing head inclination | Inclined at 30°, 360° rotatable |
| Interpupillary distance | 55 mm ~ 75 mm |
| Eyepiece | EW10X/ 20 mm |
| Objective | Semi-plan achromatic objective 4X, 10X, 40X, 100X |
| Nosepiece | Backward Quadruple |
| Stage | Double layer mechanical stage 140 mm x 140 mm/ 75 mm x 50 mm |
| Focusing | Coaxial coarse and fine adjustment Fine division 0.002 mm Coarse stroke 37.7 mm/rotation Fine stroke 0.2 mm/rotation Moving range: 20 mm |
| Condenser | NA 1.25 abbe condenser with iris diaphragm and filter |
| Illumination | 1W S-LED Illumination, brightness adjustable |
| Filter | Blue, Green filter |
| Dimension | 350 x 310 x 570 mm |
| Weight | 9.5 kg |
Features
| Large viewing area with wide field eyepiece |
| High contrast semi-plan achromatic objective |
| Backward nosepiece for greater access to slides |
| Blue and green filter for photo-microscopy |
| Wide input voltage range (100 V~ 240 V) |
Applications
Used in clinics, hospitals, schools, education institutes, agriculture, histology, pathology, research to observe cell, tissues and other specimens.
