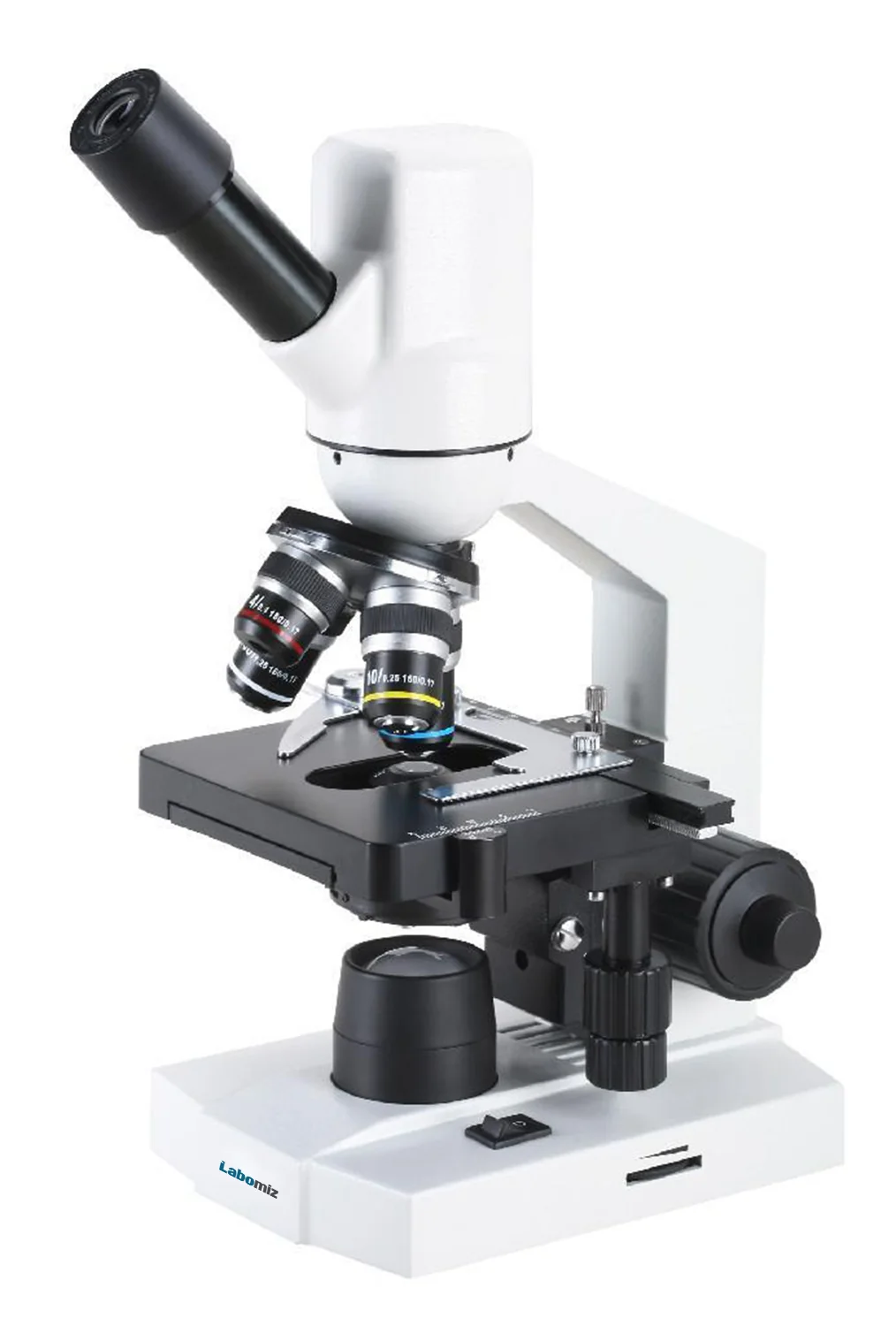

Digital microscope MDM-1A
Model: MDM-1A · Category: Microscopes
Digital microscope MDM-1A is a compact bench-top unit. Inbuilt digital camera captures vivid images and real time videos. LED illumination with rheostat brightness control aids to achieve high quality images. Coaxial coarse and fine adjustment focus knob with tension adjustment aids in mobility of the objective lenses. Condenser adjustable for lateral movement has iris diaphragm.
Specifications
| Viewing head | Monocular |
|---|---|
| Eyepiece Wide field eyepiece | WF10X / 18 mm |
| Camera system | 1.3 MP |
| Achromatic objective | 4X 10X 40X 100X ( Spring, Oil ) |
| Software | ScopeImage 9.0 |
| Viewing head inclination | 45° |
| Viewing head rotation | 360° |
| Stage | USB2.0 |
| Moving range stage | 110 mm × 120 mm |
| Iris diaphragm | 70 mm × 20 mm |
| Focus fine division | 2 mm ⁓28 mm |
| Condenser | 10 mm |
| Dimensions | 1 W |
| Weight | 280 × 220 × 390 mm |
Features
| Built-in CMOS camera ( 1.3 MP ) |
| Software support for mage analysis |
| Viewing head with 10X widefield eyepieces |
| Large mechanical stage ( double layered ) |
Applications
Widely used by school students to do image analysis. Used in computer interactive laboratory, clinical environments and individual propose.
Optional Accessories
| Accessory No. | Accessory | Accessory specification |
|---|---|---|
| 1 | Eyepiece | WF5X / 20 mm |
| 2 | Eyepiece | WF16X / 11 mm |
| 3 | Eyepiece | WF10X with pointer |
| 4 | Objective | Achromatic objective 20X |
| 5 | Objective | Achromatic objective 60X |
| 6 | Mirror | Plan-concave mirror |
| 7 | Power supply | Rechargeable battery |
| 8 | Package | Wooden box |
