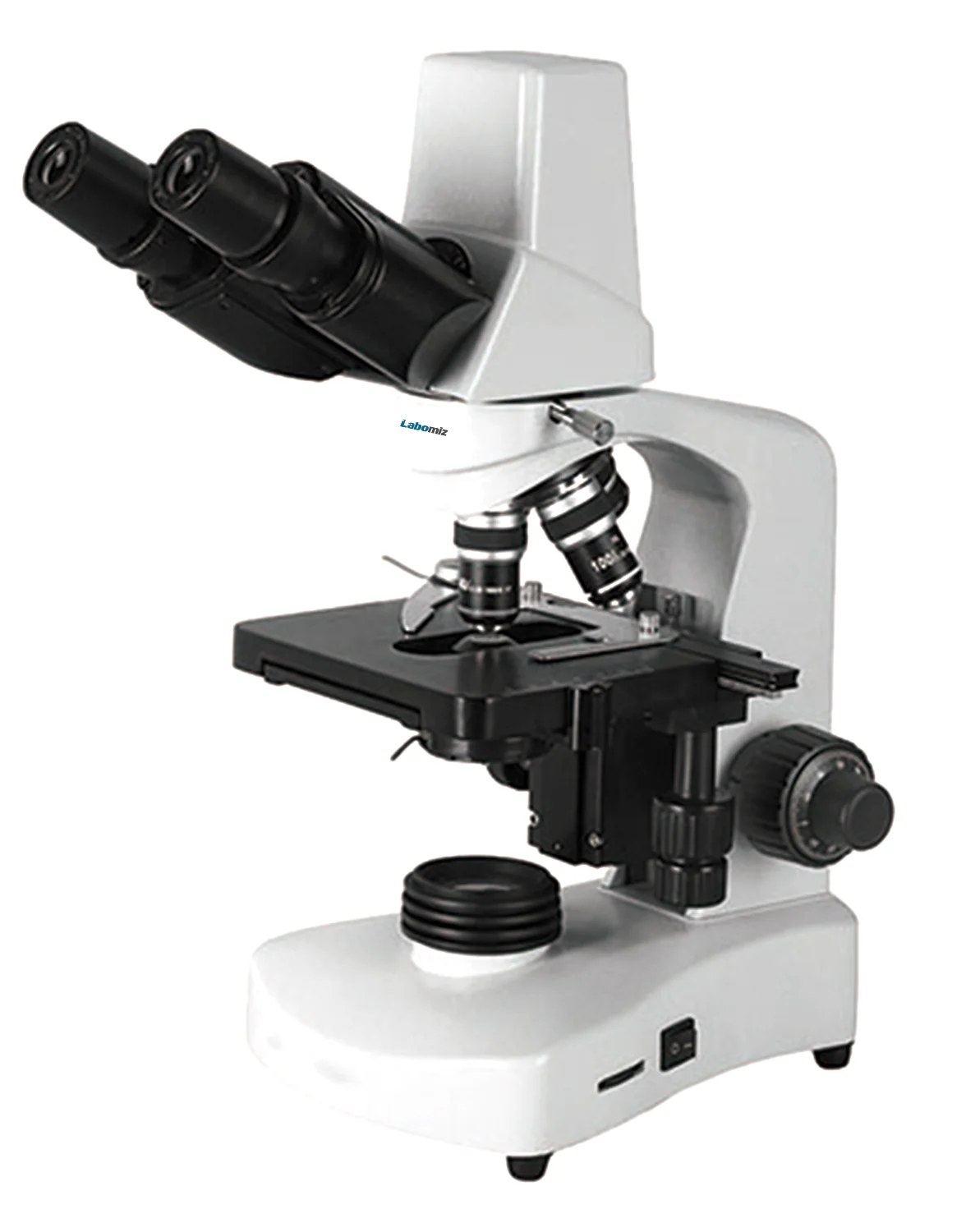

Digital microscope MDM-2B
Model: MDM-2B · Category: Microscopes
Digital microscope MDM-2B is a compact bench-top unit with inbuilt digital camera to capture vivid images and real time videos. LED illumination with rheostat brightness control aids to achieve high quality images. Coaxial coarse and fine adjustment focus knob with tension adjustment aids in mobility of the objective lenses. Condenser Abbe NA1.20 with Iris diaphragm.
Specifications
| Viewing head | Seidentopf binocular |
|---|---|
| Eyepiece Wide field eyepiece | WF10X / 18 mm |
| Camera system | 1.3 MP |
| Achromatic objective | 4X 10X 40X 100X |
| Range of viewing field | 0.9 |
| Software | ScopeImage 9.0 |
| Viewing head inclination | 30° |
| Viewing head rotation | 360° |
| Output | 48 mm ⁓ 75 mm |
| Stage | USB2.0 |
| Moving range stage | 132 mm × 142 mm 75 mm × 40 mm |
| Coarse stroke | 0.004 mm |
| Fine stroke | 32.7 mm |
| Focus moving range | 0.4 mm |
| Condenser | 24 mm |
| Illumination | Abbe NA1.20 |
| Dimensions | 1 W S-LED |
| Weight | 400 × 270 × 500 mm |
Features
| Inbuilt CMOS camera ( 1.3 MP ) |
| Software support ( Image analysis ) |
| Connectable to computer using USB cable |
| Backward quadruple nosepieces |
| Viewing head with 10X widefield eyepieces |
| Double layered mechanical stage |
Applications
Used for school biological education and medical analysis area. Used widely in clinics, hospitals, schools, academic labs and scientific research department.
Optional Accessories
| Accessory No. | Accessory | Accessory specification |
|---|---|---|
| 1 | Eyepiece | P16X / 11 mm |
| 2 | Objective | Achromatic objective 20X |
| 3 | Objective | Achromatic objective 60X |
| 4 | Phase contrast kit | Simple phase contrast kit |
| 5 | Phase contrast kit | Sliding phase contrast kit |
| 6 | Phase contrast kit | Turret phase contrast kit |
| 7 | Dark field attachment | Dark field attachment ( dry ) |
| 8 | Dark field attachment | Dark field attachment ( oil ) |
| 9 | Polarization attachment | Polarization attachment |
| 10 | Power supply | Rechargeable battery |
| 11 | Photo attachment | Nikon ( Connect to Nikon digital single lens reflex ) |
| 12 | Photo attachment | Canon ( Connect to Canon digital single lens reflex ) |
| 13 | Video attachment | 0.5X microscope adapter |
| 14 | Video attachment | C-mount, 1X magnification |
