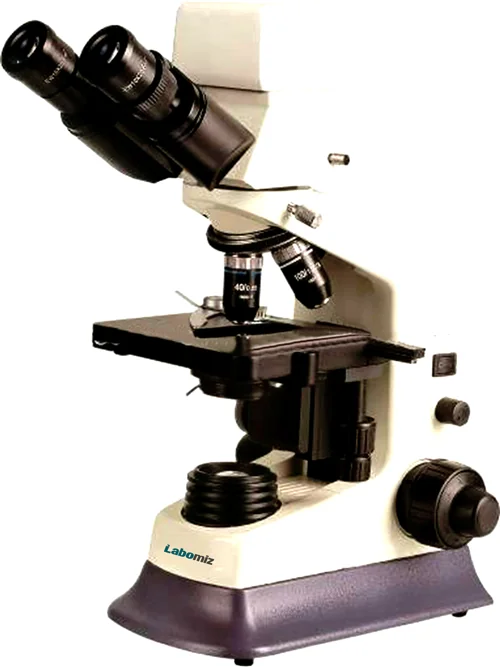

Digital microscope MDM-3B
Model: MDM-3B · Category: Microscopes
Digital microscope MDM-3B is a compact bench-top unit with inbuilt digital camera to capture vivid images and real time videos. LED illumination with rheostat brightness control aids to achieve high quality images. Coaxial coarse and fine adjustment focus knob with tension adjustment aids in mobility of the objective lenses. Vertically movable condenser with iris diaphragm and filter holder on rack and pinion.
Specifications
| Viewing head | Seidentopf binocular |
|---|---|
| Inter-pupillary distance | 48 mm ⁓75 mm |
| Eyepiece Extra wide field | EW10X / 20 mm |
| Camera system | 1.3 MP |
| Semi-plan achromatic objective | 4X 10X 40X 100X |
| Camera resolution | ( 1280 × 1024 ) pixels |
| Software | ScopeImage 9.0 |
| Viewing head inclination | 30° |
| Stage | USB2.0 |
| Moving range stage | 140 mm × 140 mm 75 mm × 50 mm |
| Illumination | Abbe NA1.25 |
| Dimensions | 1 W S-LED |
| Weight | 350 × 310 × 570 mm |
Features
| Seidentopf type binocular viewing head |
| Inbuilt CMOS camera ( 1.3 MP ) |
| Software support ( Image analysis ) |
| Reverse quadruple nosepiece |
| Viewing head with 10X widefield eyepieces |
| Large mechanical stage ( double layered ) |
| Filter : Blue and green ( increases contrast and removes UV light ) |
Applications
Used in hospitals, clinics, medical academics, morphology and related research centers for biological, pathology, bacterial, histological, immune, genetics and pharmacological analysis.
Optional Accessories
| Accessory No. | Accessory | Accessory specification |
|---|---|---|
| 1 | Eyepiece | WF16X / 11 mm |
| 2 | Objective | Plan achromatic objective 4X |
| 3 | Objective | Plan achromatic objective 10X |
| 4 | Objective | Plan achromatic objective 20X |
| 5 | Objective | Plan achromatic objective 40X |
| 6 | Objective | Plan achromatic objective 60X |
| 7 | Objective | Plan achromatic objective 100X |
| 8 | Objective | Infinite plan achromatic objective 4X |
| 9 | Objective | Infinite plan achromatic objective 10X |
| 10 | Objective | Infinite plan achromatic objective 20X |
| 11 | Objective | Infinite plan achromatic objective 40X |
| 12 | Objective | Infinite plan achromatic objective 60X |
| 13 | Objective | Infinite plan achromatic objective 100X |
| 14 | Nosepiece | Quintuple nosepiece |
| 15 | Illumination | Halogen lamp 6 V / 20 W |
| 16 | Illumination | Kohler illumination |
| 17 | Phase contrast kit | Turret phase contrast kit |
| 18 | Polarization Set | Simple polarization attachment |
| 19 | Dark-field attachment | Dark-field condenser ( Dry ) |
| 20 | Dark-field attachment | Dark-field condenser ( Oil ) |
| 21 | Photo attachment | Nikon ( Connect to Nikon digital single lens reflex ) |
| 22 | Photo attachment | Canon ( Connect to Canon digital single lens reflex ) |
| 23 | Video attachment | 0.5X microscope adapter |
| 24 | Video attachment | C-mount, 1X magnification |
