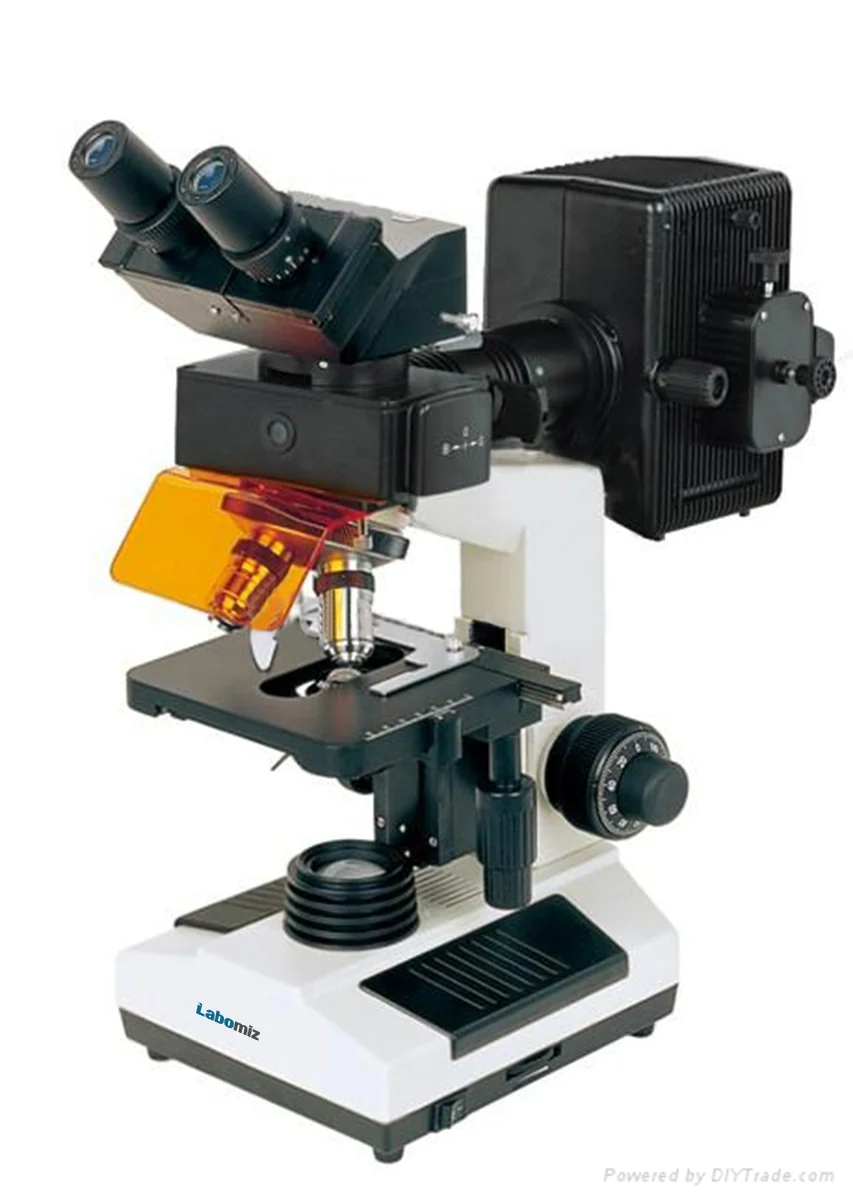

Fluorescence Biological Microscope MFBM-1A

Name: Fluorescence Biological Microscope MFBM-1A
Brand: Labomiz
SKU: MFBM-1A

Model: MFBM-1A · Category: Microscopes

Fluorescence Biological Microscope MFBM-1A is a bench-top unit integrated with digital display for viewing. Optical systems includes wide field high eyepieces and florescent achromatic objectives. Built in high resolution florescent objectives aids to achieve excellent florescent image. Coaxial coarse and fine adjustment focus knob with tension adjustment helps in mobility of the objective lenses.

Specifications

Viewing head	Binocular
Eyepiece(Wide field eyepiece )	WF10X / 18 mm
Inclination	45°
Eyepiece tube diameter	23.2 mm
Inter-pupillary distance	55 mm ⁓ 75 mm
Rotation	360°
Achromatic objective	4X 10X 40X 100X
Focus fine division	0.002 mm
Coarse stroke	37.7 mm per rotation
Fine stroke	0.2 mm per rotation
Moving range	28 mm
Condenser	Abbe condenser NA1.25
Stage	Double layer mechanical stage 140 mm × 140 mm Cross travel 75 mm × 50 mm
Lamp	100 W
Transmitted illumination	1W S-LED illumination
Power supply	220 V ⁓ 110 V

Features

Rotatable, sliding view head

Double layer mechanical stage ( X-Y-Z movement of sample )

Quadruple nosepiece ( holds four objective lenses )

Ultra Hi-voltage spherical mercury lamp

Abbe condenser with Iris diaphragm ( concentrate and controls the light )

Filters : Excitation, barrier and dichromatic mirror

Ergonomic design ( more comfortable viewing )

Applications

Used in biological, histological, pathological, bacteriology and pharmacy field. Widely used in medical institutes, laboratories, academic laboratories and colleges.

Optional Accessories

Accessory No.	Accessory	Accessory Specification
1	Eyepiece	WF16X / 11 mm
2	Objective	Achromatic objective 20X
3	Objective	Achromatic objective 60X
4	Objective	Plan achromatic objective 4X
5	Objective	Plan achromatic objective 10X
6	Objective	Plan achromatic objective 20X
7	Objective	Plan achromatic objective 40X
8	Objective	Plan achromatic objective 60X
9	Objective	Plan achromatic objective 100X
10	Nosepiece	Quintuple
11	Transmitted illumination	Halogen Lamp ( 6 V / 20 W )
12	Photo attachment	Nikon ( Connect to Nikon digital single lens reflex )
13	Photo attachment	Canon ( Connect to Canon digital single lens reflex )
14	Video attachment	0.5X microscope adapter
15	Video attachment	C-mount, 1X magnification
16	Accessory	Polarization set
17	Accessory	Phase contrast Kit
