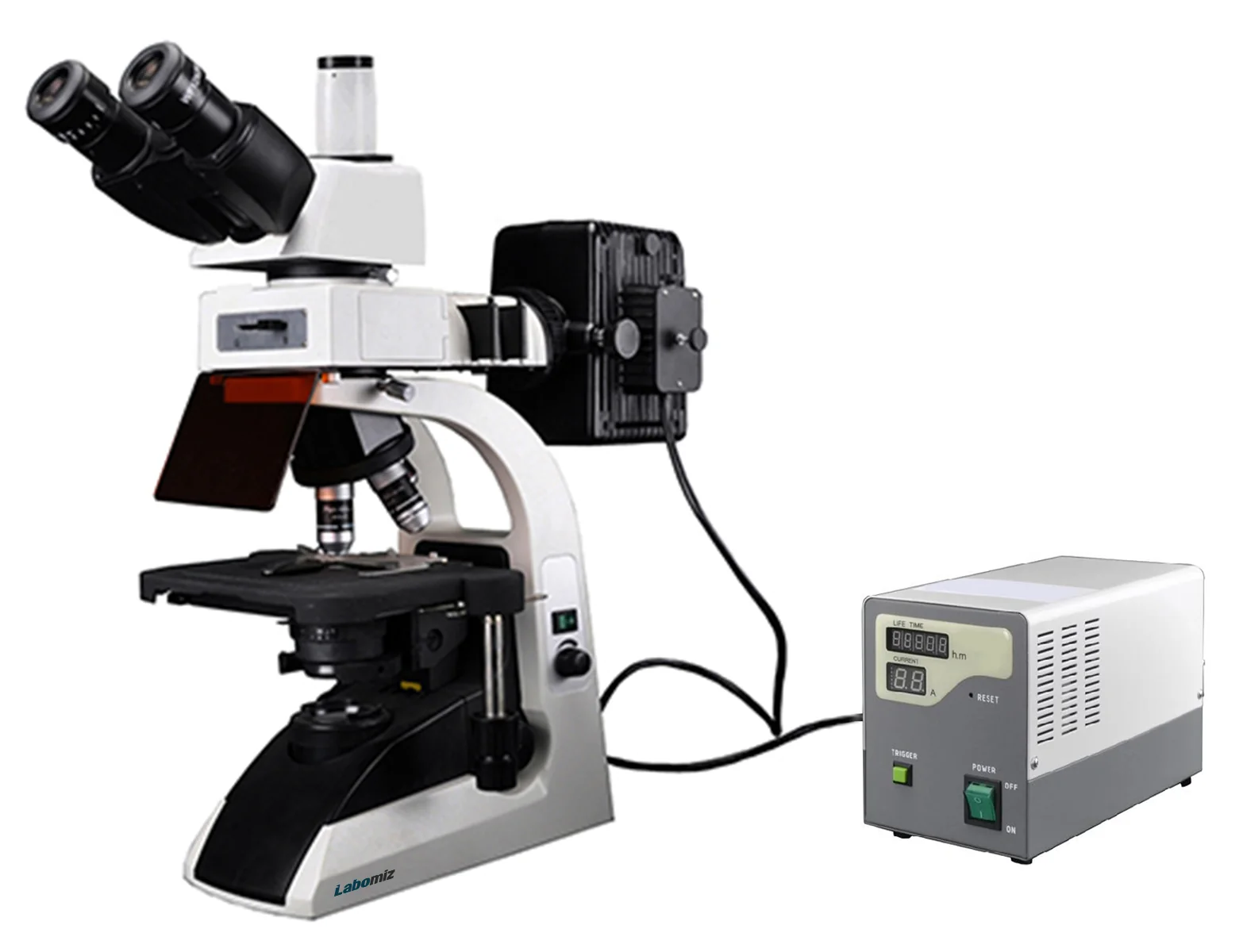

Fluorescence Biological Microscope MFBM-2A
Model: MFBM-2A · Category: Microscopes
Fluorescence Biological Microscope MFBM-2A is a bench-top unit integrated with digital display for viewing. Optical systems includes wide field high eyepieces and florescent achromatic objectives. Built in high resolution florescent objectives aids to achieve excellent florescent image. Coaxial coarse and fine adjustment focus knob with tension adjustment helps in mobility of the objective lenses.
Specifications
| Viewing head | Seidentopf binocular |
|---|---|
| Eyepiece (Extra wide field) | EW10X / 22 mm |
| Inclination | 30° |
| Eyepiece tube diameter | 30 mm |
| Inter-pupillary distance | 48 mm ⁓ 75 mm |
| Rotation | 360° |
| Plan achromatic objective | 4X 10X 40X 100X |
| Focus fine division | 0.002 mm |
| Coarse stroke | 37.7 mm per rotation |
| Fine stroke | 0.2 mm per rotation |
| Moving range | 22 mm |
| Condenser | Abbe Condenser NA1.25 |
| Stage | Rectangular 216 mm × 150 mm Cross Travel 78 mm × 54 mm |
| Lamp | 100 W |
| Illumination | 12 V / 20 W |
| Power supply | 220 V ⁓ 110 V |
| Dimensions | 380 × 270 × 510 mm |
| Weight | 9 kg |
Features
| Rotatable Seidentopf binocular view head |
| Mechanical rectangular stage ( X-Y coaxial control knob ) |
| Backward quintuple nosepiece |
| Ultra Hi-voltage spherical mercury lamp |
| Abbe condenser with aperture diaphragm |
| Filters : Excitation, barrier and dichromatic mirror |
| Ergonomic design ( more comfortable viewing ) |
Applications
Used in biological, histological, pathological, bacteriology, immunizations and pharmacy field. Widely used in medical institutes, laboratories, academic laboratories and colleges.
Optional Accessories
| Accessory No. | Accessory | Accessory specification |
|---|---|---|
| 1 | Eyepiece | WF15X / 16 mm |
| 2 | Eyepiece | WF20X / 12 mm |
| 3 | Objective | Plan achromatic objective 20X |
| 4 | Objective | Plan achromatic objective 60X |
| 5 | Nosepiece | Backward quadruple |
| 6 | Illumination | Halogen LED lamp 6 V /20 W |
| 7 | Illumination | Kohler illumination |
| 8 | Photo attachment | Nikon ( Connect to Nikon digital single lens reflex ) |
| 9 | Photo attachment | Canon ( Connect to Canon digital single lens reflex ) |
| 10 | Video attachment | 0.5X microscope adapter |
| 11 | Accessory | Polarization set |
| 12 | Accessory | Phase contrast kit |
Standard Reflected Light Source
| Filter | Excitation | Dichroic mirror | Barrier filter |
|---|---|---|---|
| Blue excitation | BP460 ~ BP490 | DM500 | BA520 |
| Green excitation | BP510 ~ BP550 | DM570 | BA590 |
Optional Reflected Light Source
| Accessory No. | Filter | Excitation | Dichroic mirror | Barrier filter |
|---|---|---|---|---|
| 20FBMA1 | Ultraviolet excitation | BP330 ~ BP385 | DM400 | BA420 |
| 21FBMA2 | Violet excitation | BP400 ~ BP410 | DM455 | BA455 |
