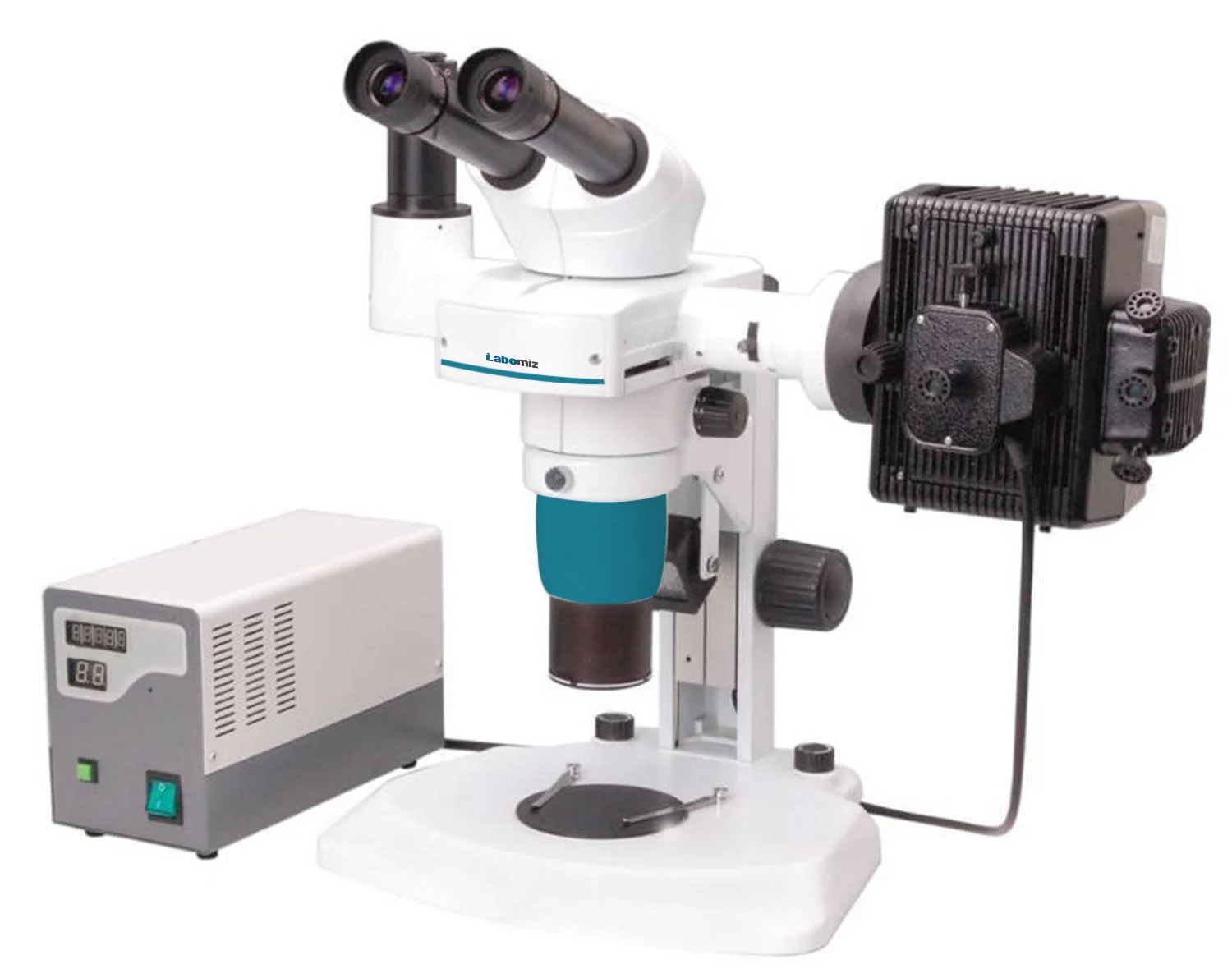

Fluorescent Stereo Microscope MFSM-1C
Model: MFSM-1C · Category: Microscopes
Fluorescent Stereo Microscope MFSM-1C cover a wide magnification range from 2.4X ~ 480X. It allows the scientist to see and photograph specimens from macro views to high-magnification micro visualization. Additional photo tube comes with the microscope, CCD camera can be mounted on the photo tube for image capture and analysis.
Specifications
| Zoom objective | 0.8X ~ 8X |
|---|---|
| Zoom ratio | 1:10 |
| Optical system | Infinite parallel zoom optical system |
| Viewing head | Binocular head |
| Viewing head inclination angle | 20° inclination |
| Interpupilary distance | 55 mm ~ 75 mm |
| Eyepiece | EW 10X / φ 22 mm |
| Fluorescent attachment | GFP-B (EX460-500,DM505,BA510-560) GFP-L (EX460-500, DM505, BA510) |
| Objective | Plan achromatic objective 1X, W.D.: 78 mm |
| Focusing range | 105 mm |
| Stand | Coaxial coarse focusing stand |
| Illumination | 102 W Ultra hi-voltage spherical mercury lamp |
Features
| Infinity parallel optical system |
| High-eyepoint eyepieces with diopter adjustment provides comfortable viewing |
| High quality epi-fluorescence attachment allows easy observation of living cells under fluorescence methods such as GFP |
| Switching between fluorescence and transmitted illumination is quick and easy |
| Power supplier with digital display |
| Transmitted & incident LED illumination |
| Adjustable brightness |
Applications
Used in biology, life science, forensic Science, embryology / IVF, lab-on-a-Chip, palaeontology, marine biology and regenerative studies.
Optional Accessories
| Accessory No | Accessory | Specification |
|---|---|---|
| 10 | Viewing Head | Tilting binocular eyepiece tube, 5°-35° inclined, Interpupilary |
| distance 55~75mm | ||
| 11 | EW10X / ? 24 mm | |
| 12 | WF15X / ? 16 mm | |
| 13 | Eyepiece | WF20X / ?12 mm |
| 14 | WF30X / ?8 mm | |
| G (EX515-550, DM570, BA590) | ||
| 15 | Fluorescent Attachment | |
| 16 | Achromatic Objective 0.3X, W.D.: 276mm | |
| 17 | Achromatic Objective 0.5×, W.D.: 195mm | |
| 18 | Plan Apochromatic Objective 0.5×, W.D.: 126mm | |
| 19 | Objective | Plan Achromatic Objective 2×, W.D.: 32.5mm |
