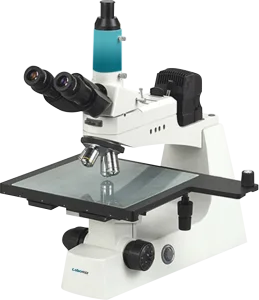

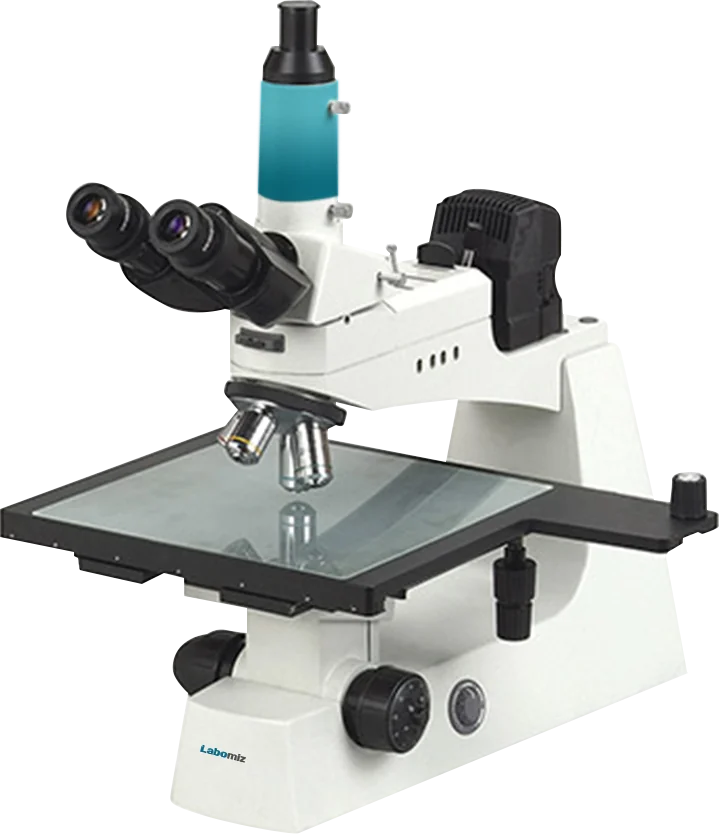

Industrial Inspection Microscope MIIM-1A
Model: MIIM-1A · Category: Microscopes
Industrial inspection microscope MIIM-1A is an instrument with large-sized stage for professional analysis. Built-in high-power objective lens and infinity optical system improves resolution and sample contrast. Various optional accessories upgrades the unit and makes it more flexible for advanced application.
Specifications
| Viewing | Seidentopf Trinocular |
|---|---|
| Viewing head inclination | Inclined at 30°, 360° Rotatable |
| Interpupillary distance | 48 mm ~ 75 mm |
| Nosepiece | Quadruple |
| Eyepiece | EW10X/ 22 |
| Infinite plan achromatic objectives | 4X/0.1/∞/- ; WD 17.8 mm 10X/0.25/∞/- ; WD 10.0 mm 20X/0.40/∞/0 ; WD 5.8 mm 40X/0.6/∞/0 WD ; 2.9 mm |
| Stage | Stage size: 300 mm x 268 mm Moving range: 250 mm x 250 mm |
| Focusing | Coaxial coarse and fine adjustment Moving range 24 mm |
| Illumination (Brightness adjustable) | 6 V/ 20 W Halogen lamp |
| Filter | Blue, Green, Yellow and Frosted glass filters |
| Dimensions | 630 x 490 x 850 mm |
| Weight | 24 kg |
Features
| Extra moving range 250 x 250 mm |
| High contrast Infinity optical system |
| LWD (long working distance) high magnification objective |
| Optional polarization set improves quality of the image |
| Blue, Green, Yellow and Frosted glass filters for photomicroscopy and observation |
Applications
| No. | Item |
|---|---|
| 1 | Used in medical, IT Industry, metrology, metallurgy and other industries for quality control, measuring and inspection. |
Optional Accessories
| Accessory No | Accessory | Specification |
|---|---|---|
| 11IIA1 | Infinite plan achromatic objective | 5X/0.12/?/- WD 15.5 mm |
| 11IIA2 | Infinite plan achromatic objective | 50X/0.75/?/0 WD 0.32 mm |
| 11IIA3 | Infinite plan achromatic objective | 100X/0.8/?/0 WD 2.0 mm |
| 11IIA4 | Polarization set | Analyzer and Polarizer |
| 11IIA5 | Photo attachment | Nikon (Connect to Nikon digital single lens reflex) |
| 11IIA6 | Photo attachment | Canon (Connect to Canon digital single lens reflex) |
| 11IIA7 | Video attachment | C Mount 1X |
