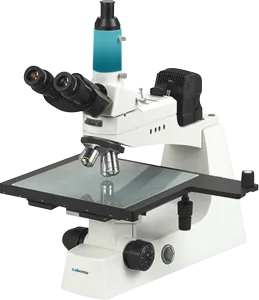

Industrial Inspection Microscope MIIM-1B
Model: MIIM-1B · Category: Microscopes
Industrial inspection microscope MIIM-1B is an instrument with large-sized stage for professional analysis. Built-in high-power objective lens and infinity optical system improves resolution and sample contrast. Various optional accessories upgrades the unit and makes it more flexible for advanced application.
Specifications
| Viewing | Seidentopf Trinocular |
|---|---|
| Viewing head inclination | Inclined at 30°, 360° Rotatable |
| Interpupillary distance | 48 mm ~ 75 mm |
| Nosepiece | Quintuple |
| Eyepiece | EW10X/ 22 |
| Infinite plan achromatic objectives | 5X/0.12/∞/- ; WD 15.5 mm 10X/0.25/∞/- (BF/DF) ; WD 10.0 mm 20X/0.40/∞/0 (BF/DF) ; WD 4.3 mm 50X/0.75/∞/0 WD ; 0.32 mm 100X/0.8/∞/0 WD ; 2.0 mm |
| Stage | Stage size: 300 mm x 268 mm Moving range: 250 mm x 250 mm |
| Focusing | Coaxial coarse and fine adjustment Moving range 24 mm |
| Illumination (Brightness adjustable) | 24 V/ 100 W Halogen lamp |
| Filter | Blue, Green, Yellow and Frosted glass filters |
| Dimensions | 630 x 490 x 850 mm |
| Weight | 24 kg |
Features
| Extra moving range 250 x 250 mm |
| High contrast Infinity optical system |
| LWD (long working distance) high magnification objective |
| Optional polarization set improves quality of the image |
| Blue, Green, Yellow and Frosted glass filters for photomicroscopy and observation |
Applications
| No. | Item |
|---|---|
| 1 | Used in medical, IT Industry, metrology, metallurgy and other industries for quality control, measuring and inspection. |
Optional Accessories
| Accessory No | Accessory | Specification |
|---|---|---|
| 12IIA1 | Polarization set | Analyzer and Polarizer |
| 12IIA2 | Photo adapter | Nikon (Connect to Nikon digital single lens reflex) |
| 12IIA3 | Photo adapter | Canon (Connect to Canon digital single lens reflex) |
| 12IIA4 | Video adapter | C-mount 1X |
