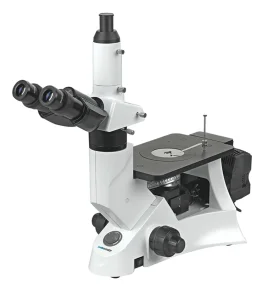

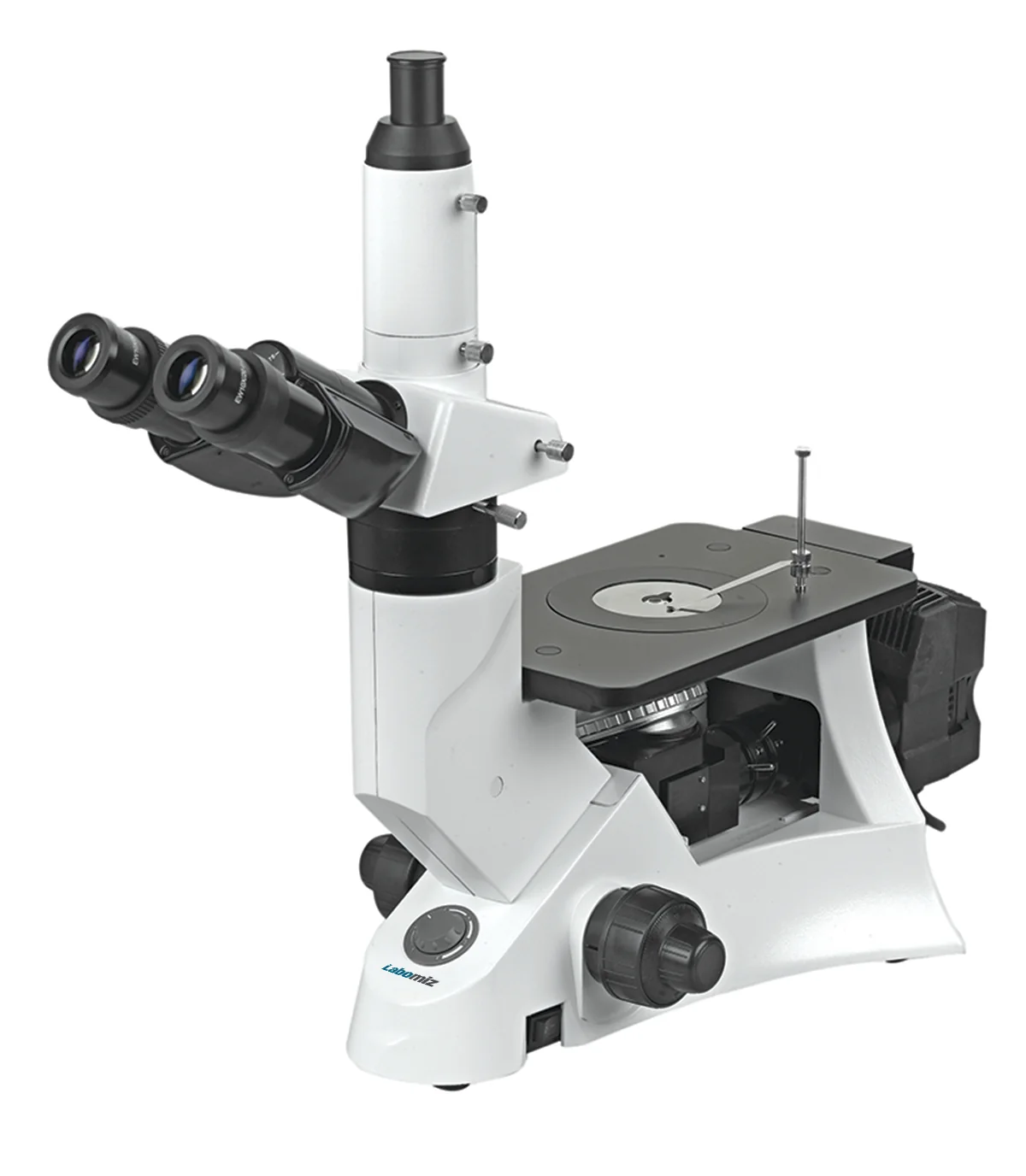

Inverted Metallurgical Microscope MIUM-1A
Model: MIUM-1A · Category: Microscopes
Inverted metallurgical microscope MIUM-1A is a tabletop inverted microscopes with infinity plan achromatic objectives. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Digital cameras can be added to the trinocular tube to take images and make image analysis.
Specifications
| Viewing head | Trinocular head |
|---|---|
| Viewing head inclination degree | Inclined at 30° |
| Interpupillary distance | 48 mm ~ 75 mm |
| Eyepiece | High-point, extra wide field eyepiece EW10×/ 20mm |
| Infinite plan achromatic objective | 4X/ 0.1/∞/- WD 17.3 mm 10X/0.25/∞/- WD 10.0 mm 20X/0.40/∞/0 WD 5.8 mm 40X/0.65/∞/0 WD 0.52 mm |
| Nosepiece | Quintuple nosepiece |
| Stage | Plain stage with slide clips |
| Focus | Coarse stroke 37.7 mm per rotation Fine stroke 0.2 mm per rotation Fine Division 0.002 mm Moving range up to 8 mm, down 3 mm |
| Kohler Illumination | Halogen lamp 6V/ 30W, Kohler illumination |
| Filter | Blue, Yellow, Green and Frosted filters |
| Polarization Set | Polarizer and Analyzer |
Features
| Vertical objective movement for focusing |
| Infinity plan achromatic objectives |
| Infinite optical system provides excellent optical functions |
| Stable stand structure and comfortable operation |
| Blue filters for cooler and more neutral color of image |
| Green filters correct spherical achromatic aberrations |
| Ground glass filters for more even and diffused light |
Applications
Used in institutes and laboratories to observe and identify the structure of various metal and alloy, in electronics, chemical and instrumentation industry, to observe the opaque material and transparent material.
Optional Accessories
| Accessory No | Accessory | Specification |
|---|---|---|
| A10IUM | Infinite plan achromatic objective | 5X/0.12/?/- WD 15.4 mm |
| A11IUM | 40X/0.60/?/0 WD 2.9 mm | |
| A12IUM | 50X/0.75/?/0 WD 0.32 mm | |
| A13IUM | 80X/0.90/?/0 WD 0.2 mm | |
| A14IUM | 100X/0.80/?/0 WD 2 mm | |
| A15IUM | Stage | Attachable mechanical stage, X-Y coaxial control, moving range 120 mm × 78 mm |
| A16IUM | Double layer mechanical stage 226 mm × 178 mm, | |
| Moving range 50 mm × 50 mm | ||
| A17IUM | Auxiliary stage | |
| A18IUM | Specimen presser | For metallurgical specimen preparation |
| A19IUM | Photo adapter | Used to connect a DSLR camera to the microscope |
| A20IUM | Video adapter | 1X, 0.5X C-mount adapter |
