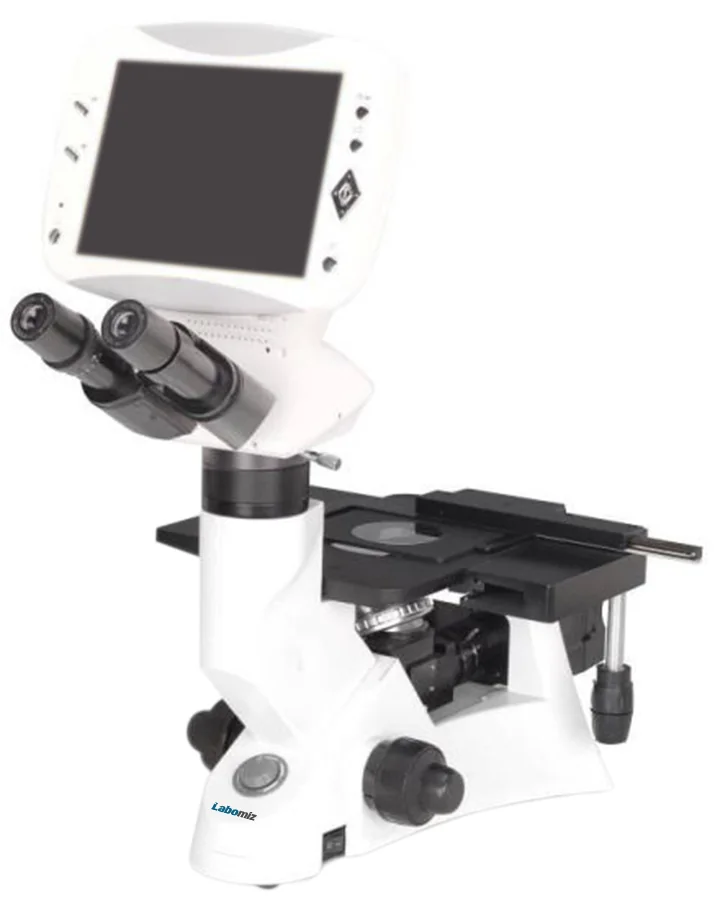

Inverted Metallurgical Microscope MIUM-6A
Model: MIUM-6A · Category: Microscopes
Inverted metallurgical microscope MIUM-6A is a tabletop inverted microscopes with a high definition LCD screen and a 12.0Mega Pixel camera. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing.
Specifications
| Resolution | 12.0 Mega Pixel |
|---|---|
| Video Resolution | 1920 × 1080 / 30 fps |
| Sensor Size | 1 / 2.5 Inches |
| LCD Screen | 9 Inches HD LCD Screen, Resolution is 1280 × 800 MP |
| Data Output | USB 2.0, HDMI |
| Storage | SD Card (4G) |
| Exposure Mode | Auto Exposure |
| Date Mode | Year, Month, Day, Hour, Minute |
| Viewing Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48 mm ~ 75 mm |
| Eyepiece | Wide Field Eyepiece WF10X / 18 mm |
| Objective | Infinite Plan Achromatic Objective 4X / 0.1, 10X / 0.25, 20X / 0.40, 40X / 0.60 |
| Nosepiece | Quintuple nosepiece |
| Stage | Plain stage |
| Focusing | Coarse Stroke 37.7 mm per Rotation Fine Stroke 0.2 mm per Rotation |
| Kohler illumination | Halogen Lamp 6 V/ 30W |
| Filter | Blue, Yellow, Green and Ground Glass |
| Polarization Set | Simple polarization attachment |
Features
| 9” LCD screen, images and videos can be shared |
| 12.0 Megapixels camera with real time imaging display, images and video recording and re-playing function |
| 12VDC power supply, safety and reliability of low voltage |
| 4G SD Card storage and printing |
| Coaxial coarse and fine adjustment |
| Vertical objective movement |
Applications
Used in institutes, laboratories and factories to observe and identify the structure of various metal and alloy, for studies of casting, smelting, heat treatment, inspection of raw materials, and analysis of processed materials.
Optional Accessories
| Accessory No | Accessory | Specification |
|---|---|---|
| A10DLI | Objective | Infinite Plan Achromatic Objective 50X/ 0.75, 80X/ 0.90, 100X/ 0.80 |
| A11DLI | Stage | Attachable Mechanical Stage |
| X-Y Coaxial Control | ||
| Moving Range 120 mm × 78 mm | ||
| Auxiliary Stage |
