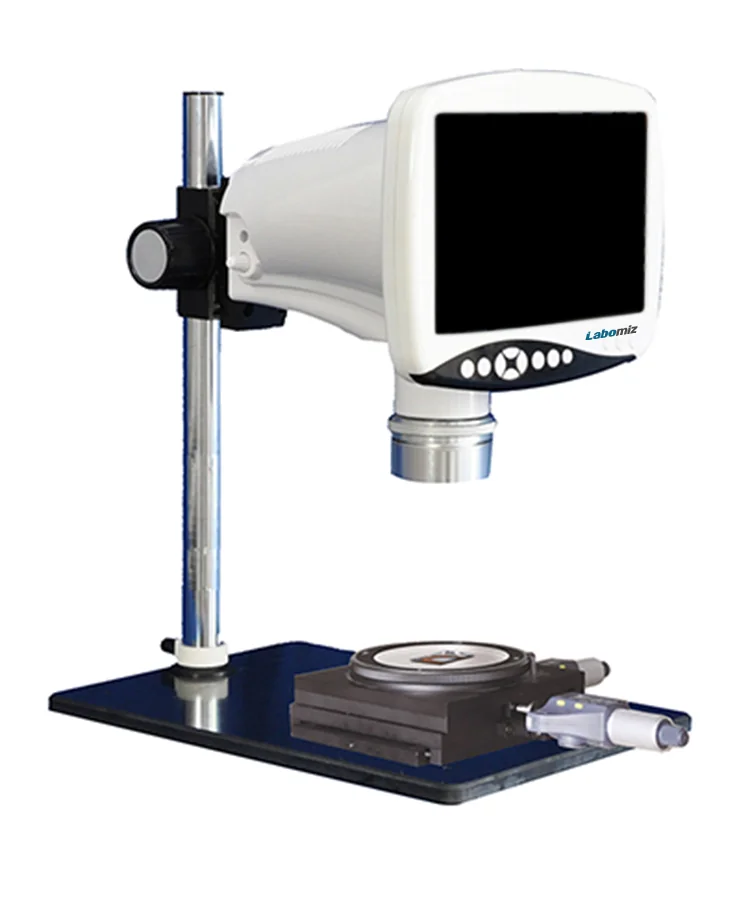

LCD Digital stereo measuring microscope MLDMM-1A
Model: MLDMM-1A · Category: Microscopes
LCD Digital stereo measuring microscope MLDMM-1A is a bench-top unit that features nine inches HD TFT screen display for easy and comfortable viewing. Integrated with X/Y digital micrometer and moving stage for accurate measurement of specimen's X-Y axis. Built-in LED ring light illuminator with four-zone control of intensity. Provision to save the image and videos for feature reference.
Specifications
| Photo resolution | 5.0 MP ( 2560 × 1920 ) |
|---|---|
| Video resolution | 720P / 30fps |
| Moving range | 30 mm × 30 mm |
| Zoom ratio | 1 : 6.5 |
| Screen resolution | 1280 × 800 |
| Measuring accuracy | 0.005 mm |
| Zoom range | 0.7X ⁓ 4.5X |
| Total magnification | 9X ⁓ 80X |
| Digital magnifications | 8X |
| Field of view | 16 mm × 12 mm ⁓ 2.45 mm × 1.8 mm |
| Working distance | 1X objective, 100 mm |
| Voltage input | 100 V ⁓ 60 Hz 240V ⁓ 50 Hz |
| Data output | USB 2.0 |
| Dimensions | 650 × 450 × 340 mm |
| Weight | 9 kg |
Features
| Real time LCD screen for viewing ( 9 inch display ) |
| Color mode : Color / Black and White / Negative |
| Captures high resolution image and video |
| Resolves fatigue ( improves work efficiency ) |
| Data storage : SD ( 4G ) card |
| Photo, video playback function |
| Mouse pointer ( positioning ) : Crosshair or Arrow pointer |
| Crosshair colors : Black / White / Red / Blue / Green |
| Manual or automatic white balance and change of exposure time |
Applications
| No. | Item |
|---|---|
| 1 | Used widely in research and teaching field by researcher and students. |
Optional Accessories
| Accessory No. | Accessory |
|---|---|
| LDMMA1 | Stage micrometer 0.1 mm |
| LDMMA2 | 0.5X objective, W.D : 203 mm |
| LDMMA3 | 2X objective, W.D : 50 mm |
