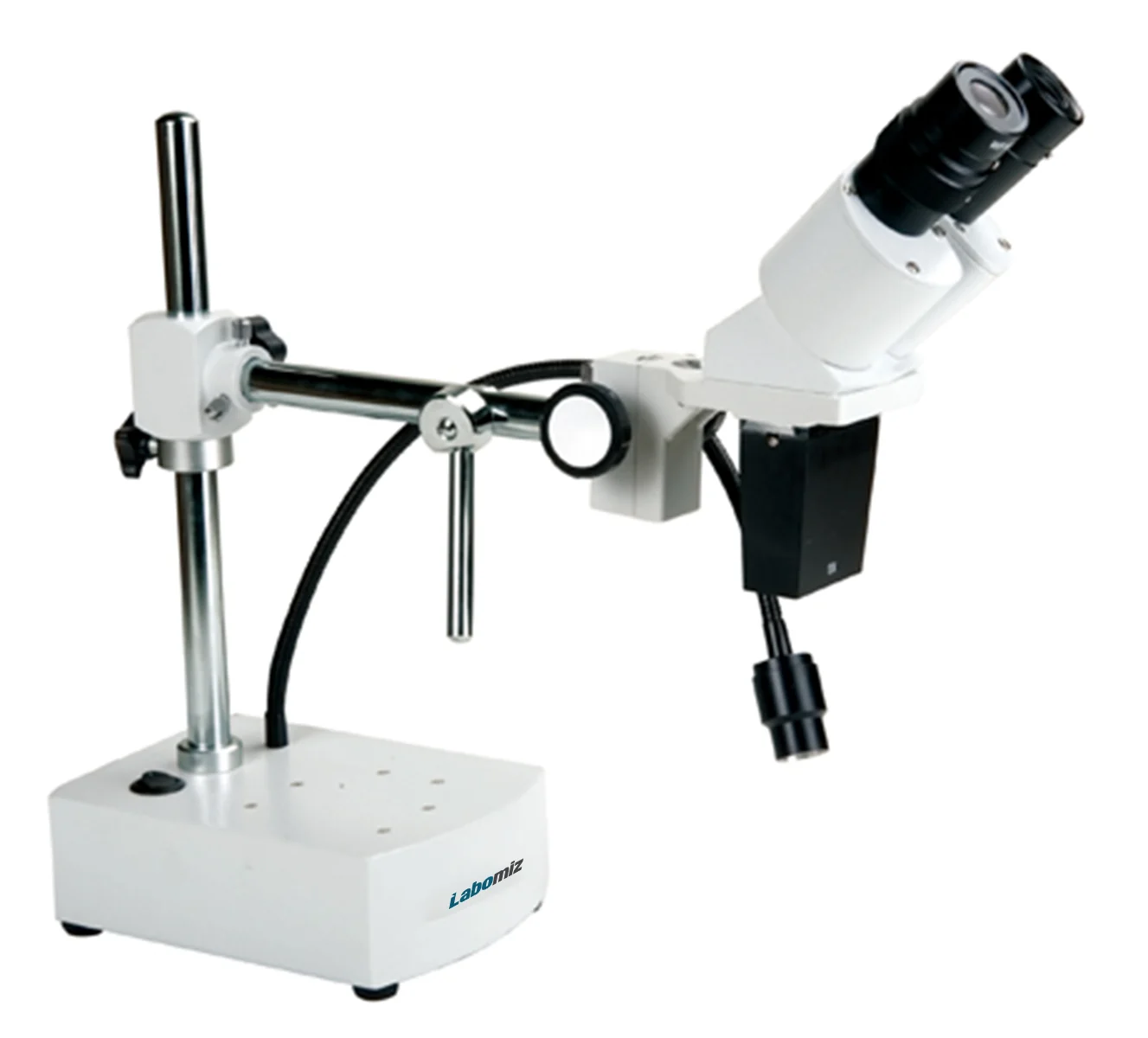

Long Working Distance Stereo Microscope MLWDM-1A
Model: MLWDM-1A · Category: Microscopes
Long working distance stereo microscope LMLWDM-1A is a bench-top unit featuring an inclined binocular head with locked eyepiece. Built-in objectives gives a 230 mm working distance expandable to 250 mm. LED light provides uniform illumination with long life span. Diopter adjustment by left eyepiece.
Specifications
| Viewing head | Binocular |
|---|---|
| Eyepiece | WF 10X / 20 mm |
| Inclination | 45° |
| Diopter adjustment | ± 5 dp |
| Tube diameter | 23.2 mm |
| Inter-pupillary distance | 55 mm ⁓ 75 mm |
| Objective | 1X W.D : 230 mm |
| Illumination ( Incident ) | 3 W |
| Power supply | 110 V / 60 Hz 220 V / 50 Hz |
| Dimensions | 410 × 200 × 430 mm |
| Weight | 6 kg |
Features
| Adjustable inter-pupillary distance ( Maximum comfort ) |
| Sharp stereo erect image |
| LED lamp ( high brightness ) |
| Easy replaceable V-shaped inserted objective |
Applications
Used widely for school education. Used in circuit board inspection and repair, SMT work, electronics inspection, coin collecting, gemstone setting, engraving, inspection and repair of small parts.
Optional Accessories
| Accessory No. | Accessory | Accessory specification |
|---|---|---|
| LWDMA1 | Eyepiece | WF5X / 20 mm |
| LWDMA2 | Eyepiece | WF15X / 15 mm |
| LWDMA3 | Eyepiece | WF20X / 10 mm |
| LWDMA4 | Objective | 0.5X, W.D : 250 mm |
| LWDMA5 | Objective | 2X, WD : 80 mm |
