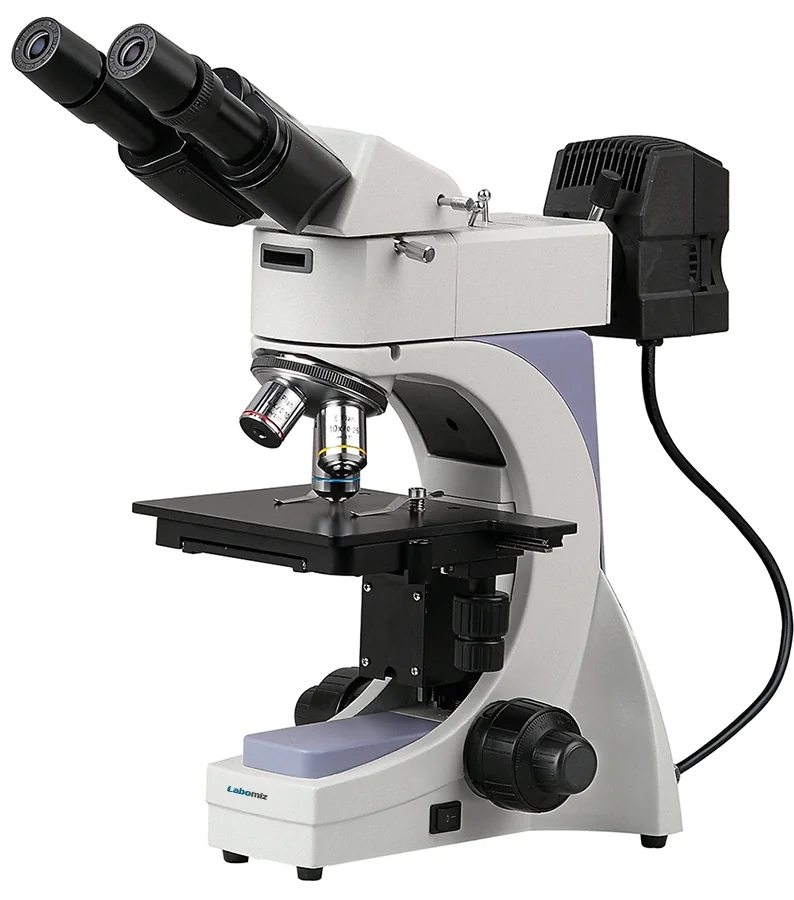

Metallurgical microscope MMUM-1A
Model: MMUM-1A · Category: Microscopes
Metallurgical microscope MMUM-1A is an infinite optical system with high magnification objective and long working distance. Ingenious stand and convenient operation takes place. Powerful transmitted and reflected systems with Kohler illumination.
Specifications
| Viewing Head | Seidentopf type binocular head Inclined at 30° 360° rotatable Interpupillary distance 48 mm ~ 75 mm |
|---|---|
| Eyepiece | WF10X / 18 mm |
| Infinite Plan Achromatic Objectives | 4X / 0.1 / ∞ /- WD 17.3 mm 10X / 0.25 / ∞ /- WD 10.0 mm 40X / 0.60 / ∞ / 0 WD 2.9 mm |
| Nosepiece | Quadruple nosepiece |
| Stage | Double layer mechanical stage 150 mm × 140 mm Moving range 75 mm × 50 mm |
| Focus | Fine Division 0.002 mm Coarse stroke 37.7 mm per Rotation Fine stroke 0.2 mm per rotation Range 20 mm |
| Illumination | 6 V/20 W |
| Filters | Blue, Green, Yellow & Ground filters |
Features
| High magnification objective with long working distance |
| Comfortable operation with low position focus knob |
| Easy, safe and reliable lamp replacement device |
| Halogen lamp and adjustable brightness |
| Coaxial coarse and fine adjustment |
| Field diaphragm and adjustable center |
| Epi-illuminator with iris aperture diaphragm and iris field |
Applications
Used in industrial areas for PCB board, LCD display, metal structure observation and inspection. It also can be used for metallography education and research.
Optional Accessories
| Accessory No | Accessory | Specification |
|---|---|---|
| A1MUM | Eyepiece | WF8X/18mm |
| A2MUM | WF10X/18mm with 0.1mm Micrometer & cross hair | |
| A3MUM | WF12.5X/15mm | |
| A4MUM | Infinite Plan Achromatic Objectives | 5X /0.12/?/- WD 15.5mm |
| A5MUM | 20X /0.40/?/0 WD 5.8mm | |
| A6MUM | 5X /0.12/?/- WD 15.5mm | |
| A7MUM | 40X /0.65/?/0 WD 0.52mm | |
| A8MUM | 50X /0.75/?/0 WD 0.32mm | |
| A9MUM | 80X /0.90/?/0 WD 0.2mm | |
| A10MUM | 100X /0.80/?/0 WD 2mm | |
| A11MUM | Illumination | 3W LED illumination, Brightness adjustable |
| A12MUM | Transmitted Illumination, 6V/20W Halogen lamp | |
| A13MUM | Polarizing Set | Polarizer and Analyzer |
| A14MUM | Specimen Presser | For metallurgical specimen preparation |
| A15MUM | Photo Adapter | Used to connect DSLR camera to the microscope |
| A16MUM | Video Adapter | 1X, 0.5X C-mount adapter |
