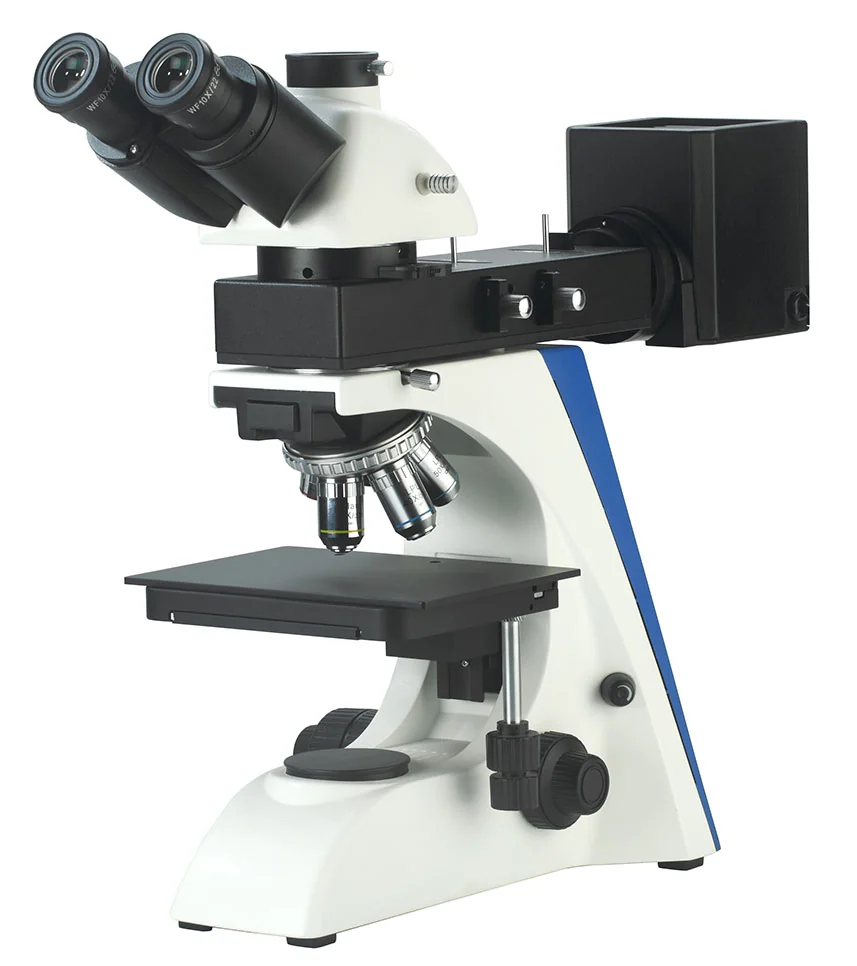

Metallurgical microscope MMUM-2A
Model: MMUM-2A · Category: Microscopes
Metallurgical microscope MMUM-2A is an infinite optical system with high magnification objective and long working distance. Ingenious stand and convenient operation takes place. Powerful transmitted and reflected systems with Kohler illumination.
Specifications
| Viewing Head | Seidentopf Binocular Head Inclined 30° Rotatable 360° Interpupillary Distance: 48 mm ~ 76 mm Tube diameter: 30 mm |
|---|---|
| Mechanical Stage | Stage size: 200 mm × 150 mm Travel range: 77 mm × 52 mm Stage fast lowering unit: Up-Down moving range can be increased to 50 mm |
| Illumination | Reflected Illumination 12V/50W Halogen lamp (Input voltage: 100V～240V), |
| Eyepiece | WF10X/22mm (adjustable) WF10X/22mm (adjustable , reticule 0.1mm) 5X/0.10 W.D=24.23mm |
| Long Working Distance Infinite Plan Objective | 10X/0.25 W.D=18.48mm 20X/0.40 (S) W.D=8.35mm 50X/0.7 (S) W.D=1.95mm |
| Nosepiece | Backward Quintuple Nosepiece |
| Focus | Fine Division 0.002 mm Fine Stroke 0.2 mm per rotation Moving Range 25 mm |
| Filter | Blue |
| Packing Size | 750 × 360 × 450 mm |
| Net Weight | 12 kg |
| Gross Weight | 16 kg |
Features
| High magnification objective with long working distance |
| Comfortable operation with low position focus knob |
| Easy, safe and reliable lamp replacement device |
| Halogen lamp and adjustable brightness |
| Coaxial coarse and fine adjustment |
| Field diaphragm and adjustable center |
| Epi-illuminator with iris aperture diaphragm and iris field |
Applications
Used in industrial areas for PCB board, LCD display, metal structure observation and inspection. It also can be used for metallography education and research.
Optional Accessories
| Accessory No. | Accessory | Specification |
|---|---|---|
| A1MUM | Viewing Head | Seidentopf Trinocular Head, Light distribution (both): 100: 0 |
| (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece) | ||
| A2MUM | Long Working Distance Infinite Plan Objective | 40X/0.65 (S) W.D= 3.90 mm |
| A3MUM | 80X /0.80 (S) W.D= 0.85 mm | |
| A4MUM | 100X /0.90 (S) W.D= 1.00 mm | |
| A5MUM | Micrometer | Stage Micrometer 0.01 mm |
| A6MUM | Filter | Green |
| A7MUM | Amber | |
| A8MUM | Grey | |
| A9MUM | 1X C-mount | |
| A10MUM | C-mount adapter | 0.5X C-mount (Focus Adjustable) |
