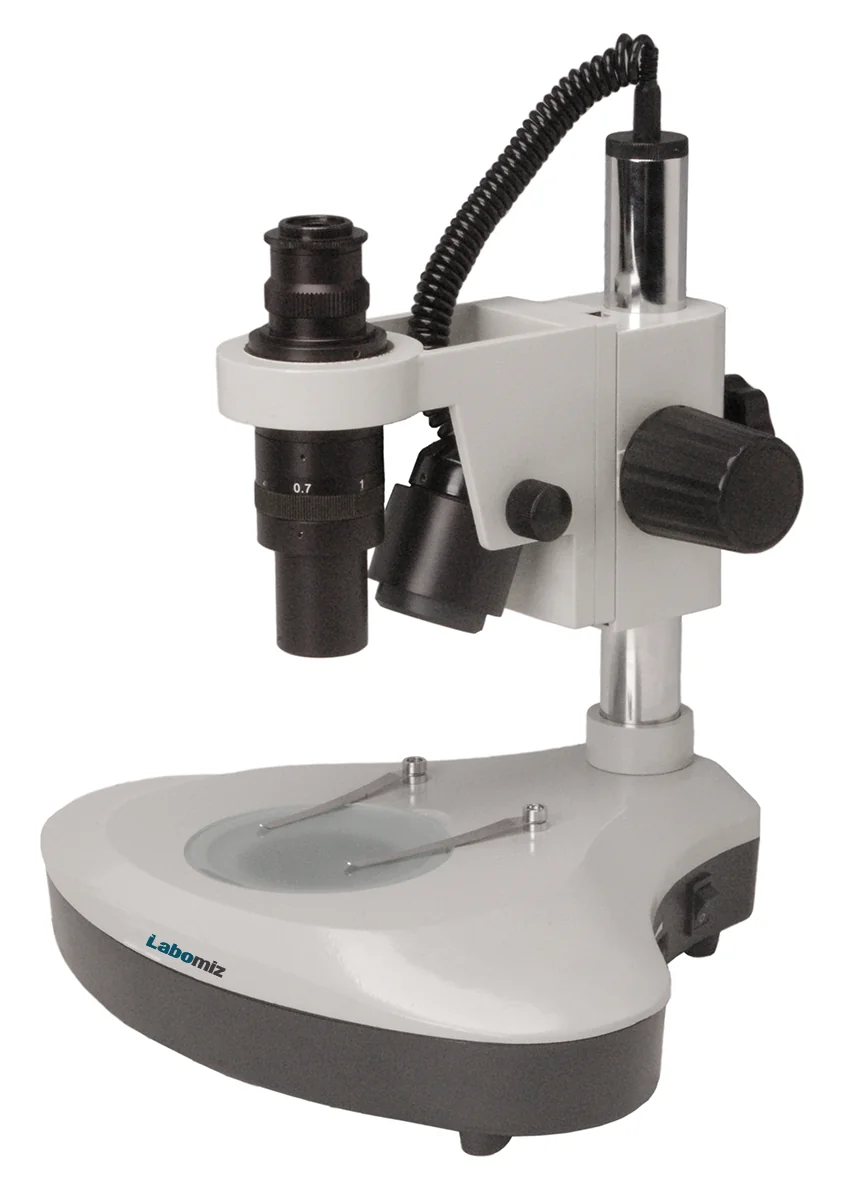

Monocular zoom microscope MMZM-1B
Model: MMZM-1B · Category: Microscopes
Monocular zoom microscope MMZM-1B is a precise optical system providing high resolution and sharp stereoscopic images. It is flexibly equipped with a microscopic stand. It can be integrated in a semi-conductor and integrate circuit board production line. Adapts to C-mount, and works with various digital cameras.
Specifications
| Eyepiece | WF10X / 18 |
|---|---|
| Illumination | 6 V / 15 W Reflected and 6 V / 20 W transmitted halogen illumination |
| Stand | With halogen illumination |
| Zoom ratio | 1: 6.5 (0.7X ~ 4.5X ) |
| Total magnification | 7X ~ 45X |
| Working distance | 90 mm |
| C-mount adapter | 1X |
Features
| High quality zoom optical system |
| Compact structure makes it occupy less working space |
| Various digital cameras can be used with the microscope for image capture and analysis |
Applications
Used in educational demonstration, agriculture research, industrial material, semi-conductor and integrated circuit inspection areas.
Optional Accessories
| Accessory No | Accessory |
|---|---|
| A1MZ | C-mount Adapter 0.5 X |
| A2MZ | Various Digital Cameras |
| A3MZ | Auxiliary Objective 0.3 X |
| A4MZ | Auxiliary Objective 0.5 X |
| A5MZ | Auxiliary Objective 2 X |
| A6MZ | Cold light illumination |
