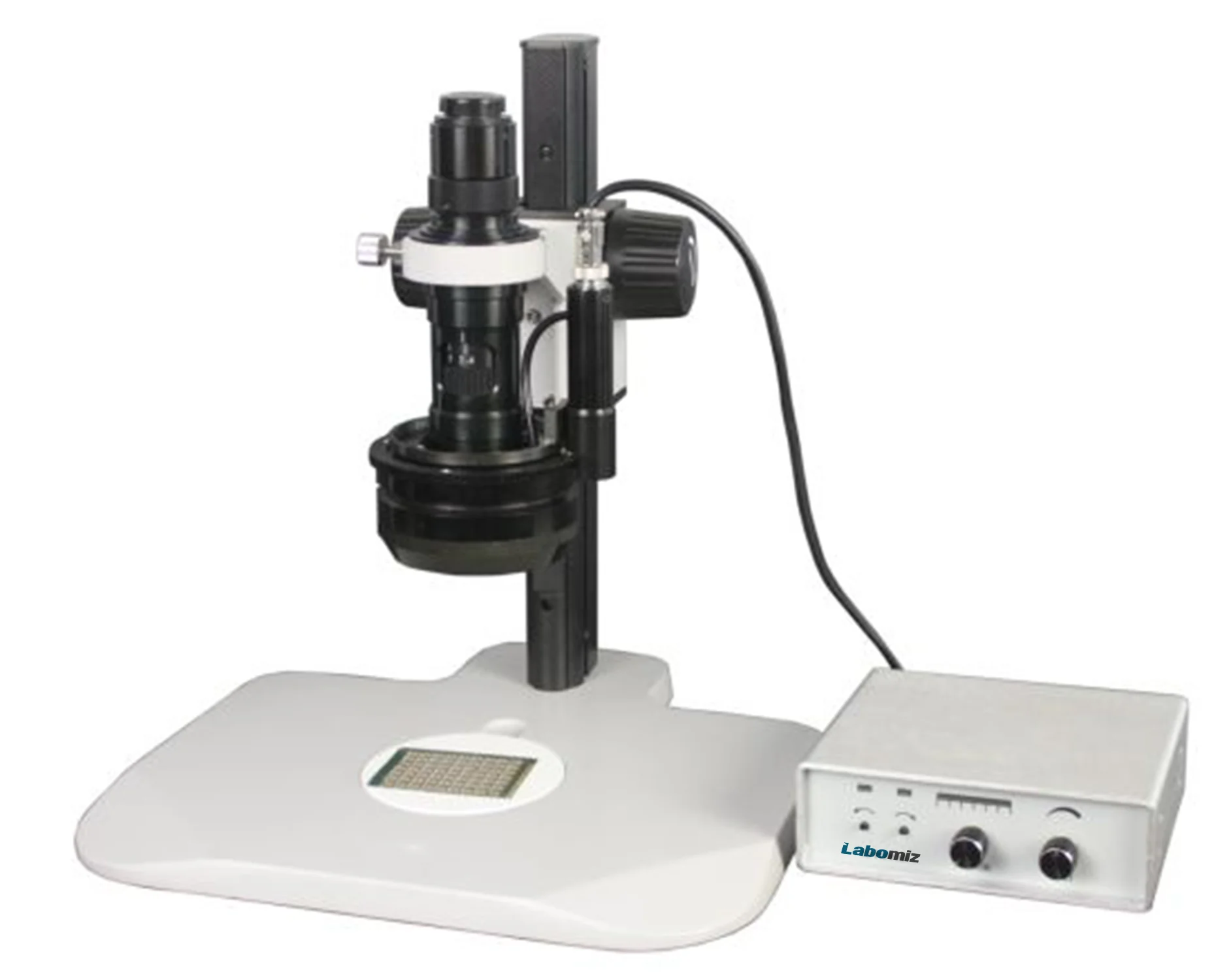

Motorized monocular microscope MMMZ-1A
Model: MMMZ-1A · Category: Microscopes
Motorized monocular microscope MMMZ-1A is a unit with excellent zoom magnification optical system and precision electromechanical system. The motorized 3D attachment can observe the specimen from 360° with high-resolution, high contrast, large depth of field, long working distance and high zoom ratio.
Specifications
| Video Eyepiece | 0.75X |
|---|---|
| Objective | 1X |
| Working Distance | 117mm (from the specimen to illumination part, the distance is 66mm) |
| Zoom Magnification | 0.3X ~ 2.4X |
| Zoom Ratio | 1:8 |
| Max. Adaptive Sensor size | 2 / 3 ″ |
| Mounting Diameter | 45 mm |
| Camera Connector | Standard C-mount |
| Stand | Coarse focus, Column height: 326 mm Focusing Range: 160 mm Base dimension: 318 × 308 × 16 mm |
| Controlling Motors | High quality stepping motors |
| Controlling Box | Speed adjusting range: 6 ~ 15 rotation/min |
| Illumination | 12 V / 10 W LED illumination |
Features
| High resolution and high zoom ratio(1:8) |
| 360° observation |
| Alternative eyepiece available to obtain a multiple magnification |
Applications
Used in semiconductor and electronics industry for small parts inspection, assembly and repair, biological anatomy, jewelry inspection, school’s education and research areas.
Optional Accessories
| Accessory No | Accessory |
|---|---|
| Video Eyepiece | 0.5X |
| 1X | |
| 1.5X | |
| 2X |
