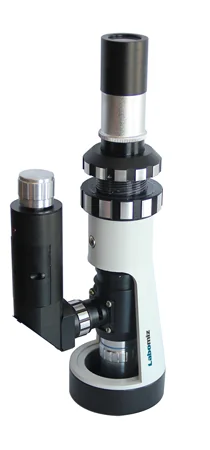

Portable Metallurgical Microscope MPTL-1A
Model: MPTL-1A · Category: Microscopes
Portable Metallurgical Microscope MPTL-1A adopts a rechargeable vertical LED illuminator, which provides even and adequate illumination. It can work more than 40 hours after one charge. It has an optional magnetic base that can be adsorbed solidly on the work piece.
Specifications
| Eyepiece | Plan eyepiece 10X / 18 mm |
|---|---|
| Objective | Long work distance plan objective: 10X/0.25, WD7.3 mm 500X/0.70, WD 0.5 mm |
| Total Magnification | 100X, 500X |
| Mechanical tube length | 160 mm |
| Focusing range | 20 mm |
| Dimension | 230 x 110 x 70 mm |
| Weight | 0.75 kg |
Features
| Adapted to various diameter pipes and flat |
| Magnetic base can be adjusted from X, Y directions |
| Adjustable LED light illumination(chargeable) |
Applications
Used for identification of casting quality, inspection of raw material or metallurgical structures, research and analysis of processed material in factory and laboratory, also can be used in antique gem and surface observation.
Standard Accessories
| Accessories No | Accessories Name |
|---|---|
| A1 | Plan eyepiece 10X/18mm |
| A2 | LWD Plan Metallurgical Objective 10X |
| A3 | LWD Plan Metallurgical Objective 50X |
| A4 | LED Illumination |
| A5 | Power source battery charger |
Optional Accessories
"
| Accessories No | Accessories Name |
|---|---|
| MOP1 | WF16X, WF20X, WF10X/18 eyepiece with crossing line |
| MOP2 | Long work distance plan 5X, 20X and 40X objectives |
| MOP3 | Digital Cameras |
| MOP4 | Magnetic base |
"
