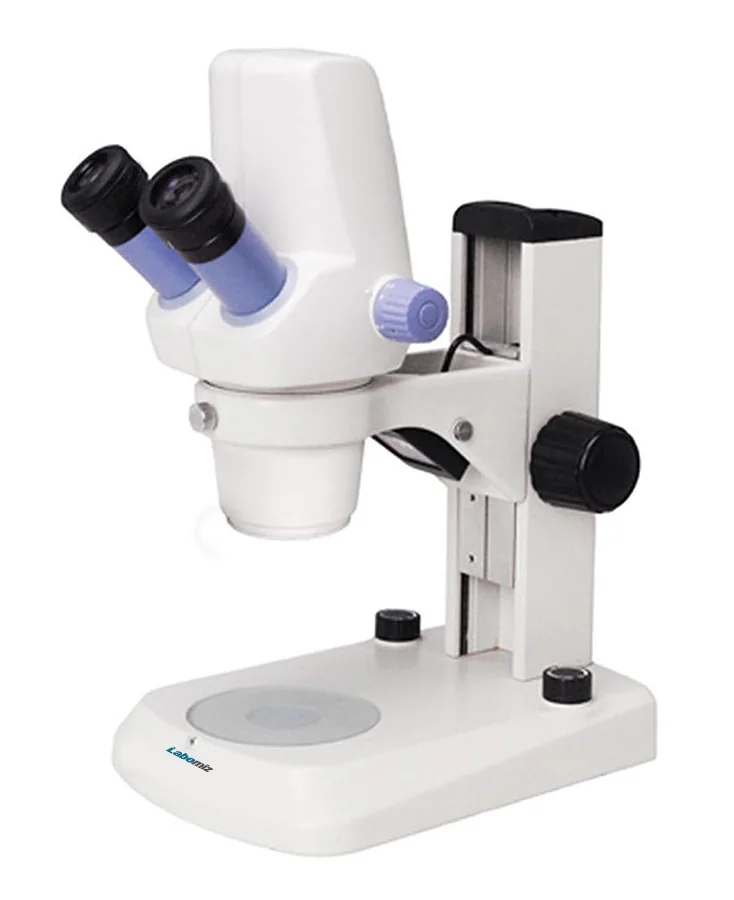

Zoom stereo microscope MZSM-1C
Model: MZSM-1C · Category: Microscopes
Zoom stereo microscope MZSM-1C is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives.
Specifications
| Viewing head | Binocular |
|---|---|
| Zoom ratio | 1 : 4.5 |
| Eyepiece (Wide field eyepiece ) | WF 10X/ Φ20 mm |
| Inclination | 45° |
| Inter-pupillary distance | 55 mm ⁓ 75 mm |
| Viewing field diameter | 20 mm |
| Zoom objective | 1X ⁓ 4.5X |
| Working distance | 97 mm |
| Focusing range | 100 mm |
| Incident illumination | 100 V ⁓ 240 V |
| Transmitted illumination | 100 V ⁓ 240 V |
| Video attachment | 0.5X C-mount |
| Dimensions | 380 × 320 × 535 mm |
| Weight | 5.5 kg |
Features
| Wide viewing field and long working distance |
| Displays sharp images |
| Ergonomic design increases productivity |
| Incident, transmitted LED illumination ( examine transparent sample ) |
| Provision to connect the camera ( optional ) |
| Viewing head contains 1.3MP digital camera |
| Image processing software : ScopeImage 9.0 |
Applications
Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.
Optional Accessories
| Accessory No | Accessory | Accessory Specification |
|---|---|---|
| 12ZSMA1 | Eyepiece | Wide field eyepiece 5X |
| 12ZSMA2 | Eyepiece | Wide field eyepiece 15X/ 16 mm |
| 12ZSMA3 | Eyepiece | Wide field eyepiece 20X/ 12 mm |
| 12ZSMA4 | Eyepiece | Wide field eyepiece 30X/ 12 mm |
| 12ZSMA5 | Eyepiece | WF10X Eyepiece with cross line |
| 12ZSMA6 | Objective | Zoom objective 0.7X ? 3X |
| 12ZSMA7 | Objective | Auxiliary objective 2X W.D : 30 mm |
| 12ZSMA8 | Objective | Auxiliary objective 0.75X W.D : 120 mm |
| 12ZSMA9 | Objective | Auxiliary objective 0.5X W.D : 180 mm |
| 12ZSMA10 | Photo attachment | Nikon ( Connect to Nikon digital single lens reflex) |
| 12ZSMA11 | Photo attachment | Canon ( Connect to Canon digital single lens reflex) |
| 12ZSMA12 | Video attachment | 1X C-mount |
| 12ZSMA13 | Attachment | Dark field attachment |
| 12ZSMA14 | Attachment | Movable stage |
| 12ZSMA15 | Attachment | Temperature controlled stage and power supplier |
