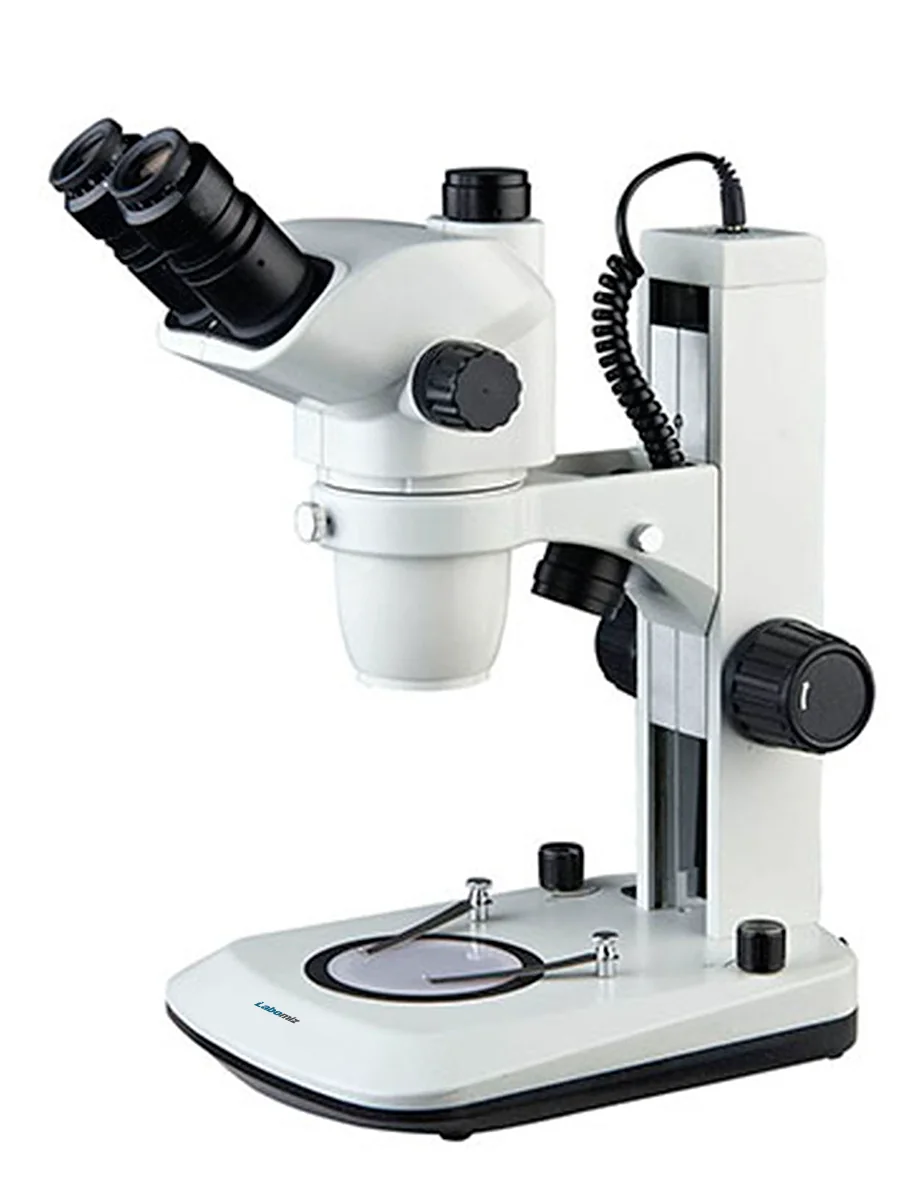

Zoom stereo microscope MZSM-2D
Model: MZSM-2D · Category: Microscopes
Zoom stereo microscope MZSM-2D is a dissecting microscope featuring a low magnification range. This bench-top unit provides a high quality 3-D image throughout the zoom range. Magnification range and working distances can be expanded using optional eyepieces and auxiliary objectives.
Specifications
| Viewing head | Trinocular |
|---|---|
| Zoom ratio | 1 : 6.7 |
| Eyepiece (Wide field eyepiece ) | WF 10X/ Φ22 mm |
| Inclination | 45° |
| Rotation | 360° |
| Inter-pupillary distance | 54 mm ⁓ 76 mm |
| Zoom objective | 0.67X ⁓ 4.5X |
| Magnification | 6.7X ⁓ 45X |
| Working distance | 110 mm |
| LED illumination | 3 W |
| Video attachment | 0.5X C-mount |
| Dimensions | 510 × 360 × 300 mm |
| Weight | 6 kg |
Features
| Optical system : Greenough |
| Wide viewing field shows high quality sharp images |
| Ergonomic design increases productivity |
| Transmitting and reflecting LED illumination examine transparent sample ) |
Applications
Used in academics, medical and industrial field. Used for circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.
Optional Accessories
| Accessory No | Accessory | Accessory Specification |
|---|---|---|
| 23ZSMA1 | Eyepiece | WF15X/ ?16 mm |
| 23ZSMA2 | Eyepiece | WF20X/ ?12 mm |
| 23ZSMA3 | Eyepiece | WF10X/ ?22 mm Eyepiece with cross line |
| 23ZSMA4 | Objective | Auxiliary objective 0.5X, W.D 177 mm |
| 23ZSMA5 | Objective | Auxiliary objective 2X, W.D 26 mm |
| 23ZSMA6 | Photo Adapter | For Nikon, Canon, Olympus, Sony DSLR Cameras |
