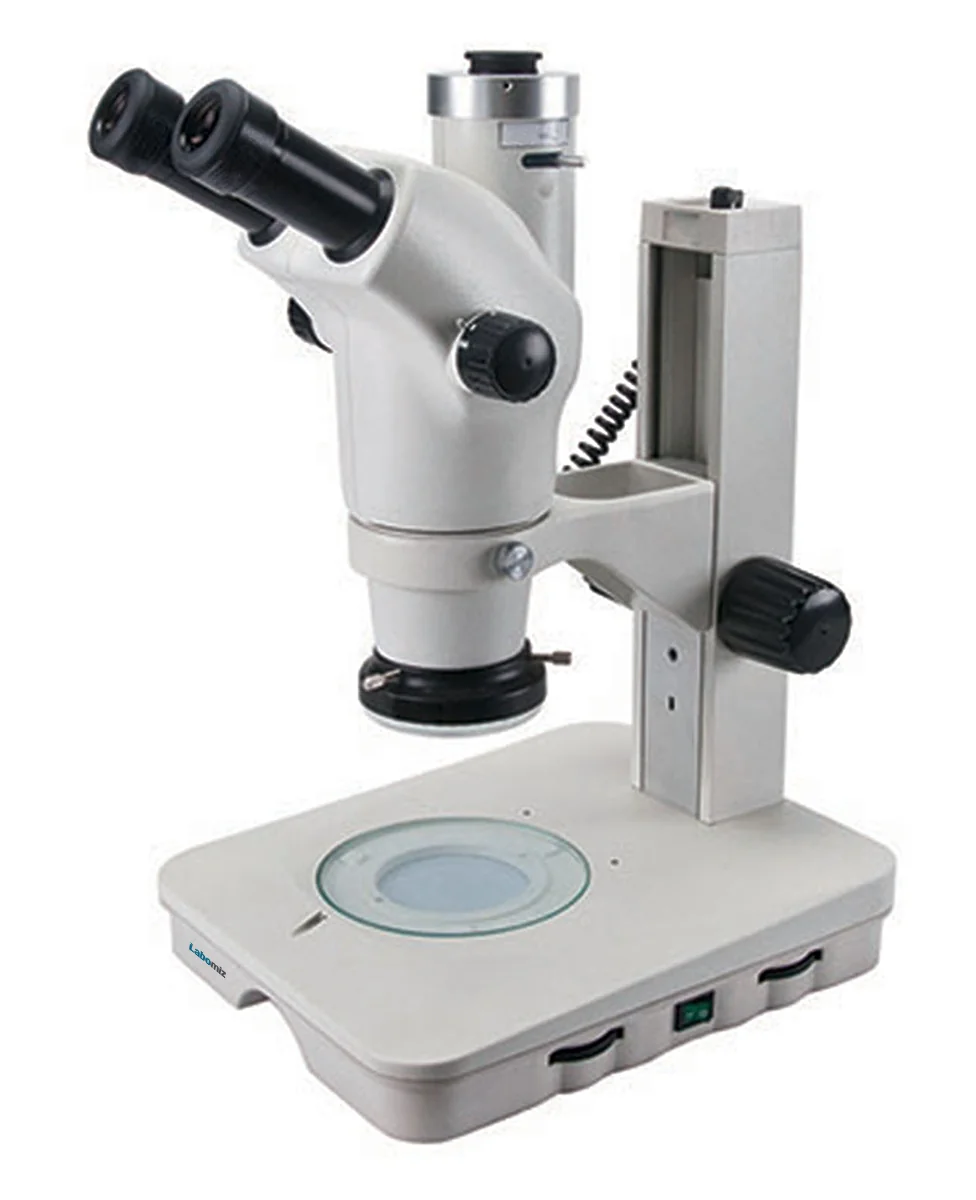

Zoom stereo microscope MZSM-6B
Model: MZSM-6B · Category: Microscopes
Zoom stereo microscope MZSM-6B is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment to move the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span of 60,000 hours.
Specifications
| Viewing head | Trinocular |
|---|---|
| Zoom ratio | 8.3 : 1 |
| Eyepiece (Extra wide field eyepiece ) | WF10X/ Φ23 mm |
| Inclination | 30° |
| Inter-pupillary distance | 55 mm ⁓ 75 mm |
| Zoom objective | 0.6X ⁓ 5X |
| Working distance | 115 mm |
| Focusing range | 105 mm |
| Glass insert plate diameter | 125 mm |
| White and black round plate diameter | 125 mm |
| Incident illumination | 100 V ⁓ 240 V |
| Transmitted illumination | 100 V ⁓ 240 V |
| Video attachment | 0.55X C-mount |
| Dimensions | 385 × 355 × 365 mm |
| Weight | 8 kg |
Features
| Large viewing field and High zoom range |
| Sharp high contrast image and also flat image at large depth field |
| Ergonomic design increases productivity |
| Incident, transmitted LED Illumination ( examine transparent sample ) |
Applications
Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.
Optional Accessories
| Accessory No | Accessory | Accessory Specification |
|---|---|---|
| 61ZSMA1 | Eyepiece | Wide field eyepiece 15X/ ?16 mm |
| 61ZSMA2 | Eyepiece | WF20X/ ?12 mm |
| 61ZSMA3 | Eyepiece | WF30X/ ?9 mm |
| 61ZSMA4 | Objective | Auxiliary objective 0.5X, WD : 220 mm |
| 61ZSMA5 | Objective | Auxiliary objective 0.7X, WD : 125 mm |
| 61ZSMA6 | Objective | Auxiliary objective 2X, WD : 45 mm |
| 61ZSMA7 | Video adapter | 1X C-mount |
