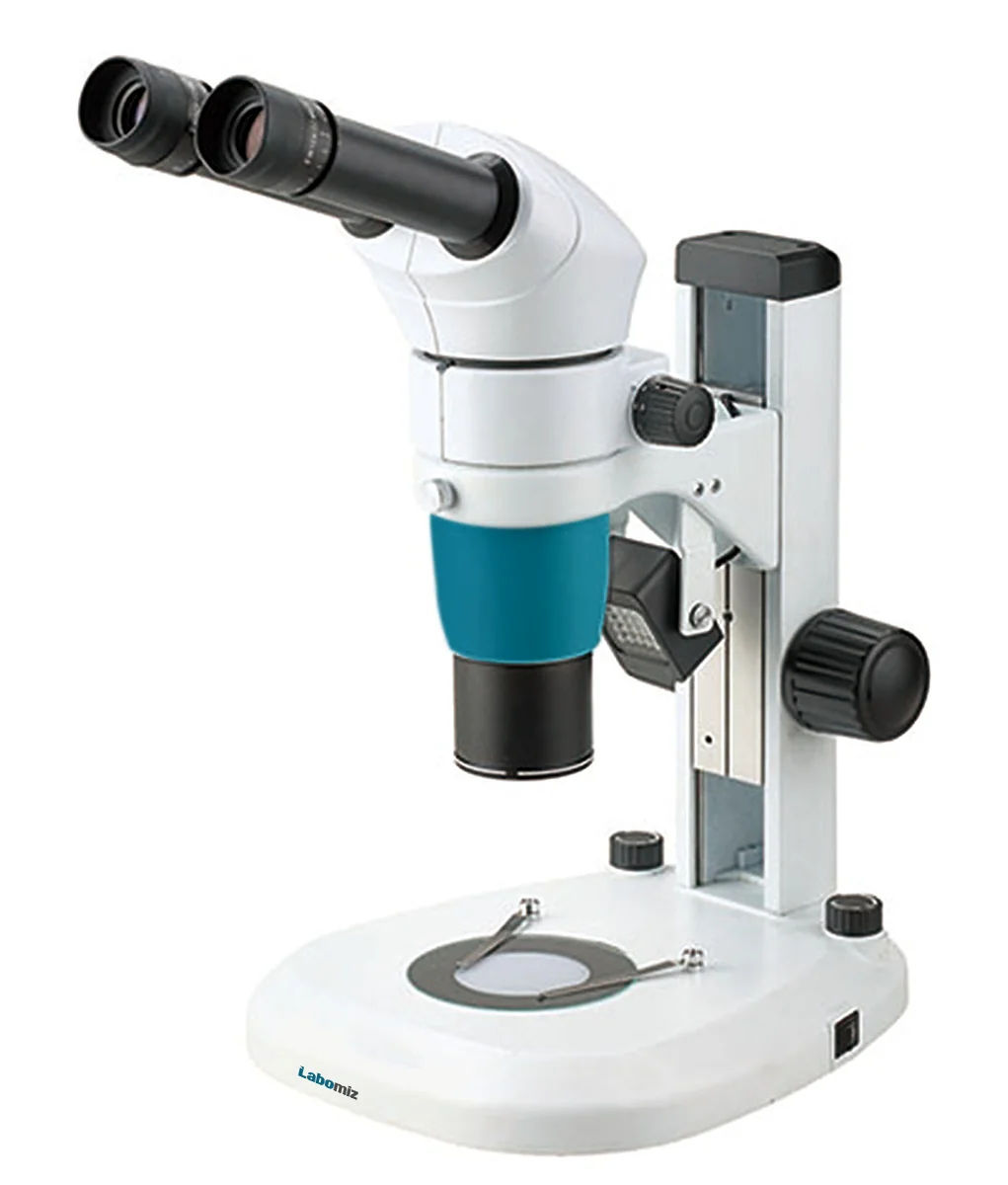

Zoom stereo microscope MZSM-7A
Model: MZSM-7A · Category: Microscopes
Zoom stereo microscope MZSM-7A is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image remain in focus throughout the zoom range. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span of 60,000 hours.
Specifications
| Viewing head | Binocular |
|---|---|
| Zoom ratio | 1: 6 |
| Eyepiece (Extra wide field eyepiece ) | EW10X/ Φ22 mm |
| Inclination | 20° |
| Inter-pupillary distance | 55 mm ⁓ 75 mm |
| Zoom objective | 0.8X ⁓ 5X |
| Objective | Plan achromatic objective 1X W.D : 78 mm |
| Focusing range | 105 mm |
| Dimensions | 360 × 310 × 670 mm |
| Weight | 8 kg |
Features
| Infinity parallel zoom optical system ( excellent image quality ) |
| large viewing field and long working distance |
| Coarse focus knob with tension adjustment to move the objective lenses |
| Ergonomic design increases productivity |
| Transmission and reflection illumination ( Adjustable ) |
| Video and photo adaptor ( optional ) |
Applications
Used in Industrial, medical and scientific research field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.
Optional Accessories
| Accessory No | Accessory | Accessory Specification |
|---|---|---|
| 70ZSMA1 | Viewing head | Binocular ( Tilt, Inclination : 0°? 35° ) Interpupilary distance : 55 mm ? 75 mm |
| 70ZSMA2 | Eyepiece | WF15X/ ?16 mm |
| 70ZSMA3 | Eyepiece | WF20X/ ?12 mm |
| 70ZSMA4 | Eyepiece | WF30X/ ? 12 mm |
| 70ZSMA5 | Eyepiece | 10X Eyepiece with cross line |
| 70ZSMA6 | Objective | Achromatic objective 0.3X, W.D : 276 mm |
| 70ZSMA7 | Objective | Plan apochromatic objective 0.5X, W.D : 126 mm |
| 70ZSMA8 | Objective | Plan achromatic objective 2X, W.D : 32.5 mm |
| 70ZSMA9 | Adaptor | 0.5X objective |
| 70ZSMA10 | Focusing unit | Coaxial coarse and fine focusing stand |
| 70ZSMA11 | Polarizing attachment | Polarizer and analyzer |
| 70ZSMA12 | Illumination | LED ring illuminator |
| 70ZSMA13 | Illumination | Fluorescent ring illuminator |
| 70ZSMA14 | Illumination | Cold light illumination with dual light guide |
| 70ZSMA15 | Illumination | Coaxial illuminator |
| 70ZSMA16 | Photo attachment | Nikon ( Connect to Nikon digital single lens reflex ) |
| 70ZSMA17 | Photo attachment | Canon ( Connect to Canon digital single lens reflex ) |
| 70ZSMA18 | Video attachment | 1X C-mount |
| 70ZSMA19 | Attachment | Dark field attachment |
| 70ZSMA20 | Attachment | Movable stage |
| 70ZSMA21 | Attachment | Temperature controlled stage and power supplier |
| 70ZSMA22 | Attachment | Epi-fluorescent attachment |
| 70ZSMA23 | Attachment | Iris diaphragm |
| 70ZSMA24 | Attachment | Beamsplitter ( one port ) |
| 70ZSMA25 | Attachment | Beamsplitter ( two ports ) |
| 70ZSMA26 | Attachment | LCD attachment |
