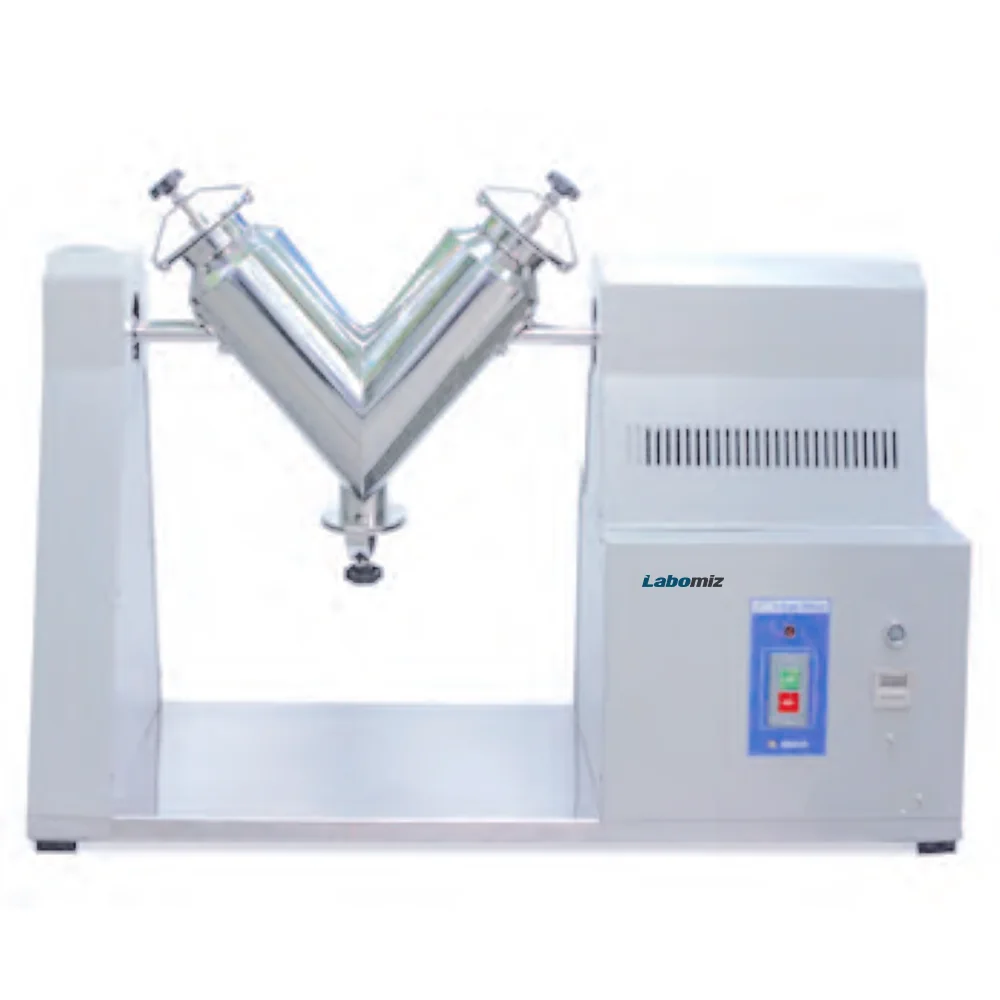

V-type mixer MVTM-1B
Model: MVTM-1B · Category: Mixers and Vortexers
V-type mixer MVTM-1B is equipped with gyration system for quick diffusion. A horizontal shaft ensures a perfect and quick homogenization of mixing components. Double swing axis rotation improves mixing efficiency with no dead angle. Blending time depends on the properties of material to be blended.
Specifications
| Vessel capacity | 22 L |
|---|---|
| Mixable capacity | 10 L |
| Vessel rotating speed | 36 rpm |
| Impeller rotor power | ¼ hp |
| Vessel height ( from bottom ) | 400 mm |
| Drum motor power | ½ hp |
| Impeller rotor speed | 850 rpm |
| Power ( 1 phase ) | AC 230 V 50 Hz / 60 Hz |
| Overall dimensions ( W × D × H ) | 1420 × 500 × 940 mm |
| Net weight | 133 kg |
Features
| V shaped drum and impeller rotators |
| Homogeneous mixing on 360° rotation |
| Unit power on-off buttons |
| Corrosion resistant stainless steel plate (vessel material) |
| Steel plate with powder coated finish (body material) |
Applications
Used for dry blending, pharmaceuticals, food products, metals, ceramic powders, fertilizers, cosmetics, polyethylene, pesticides, etc.
