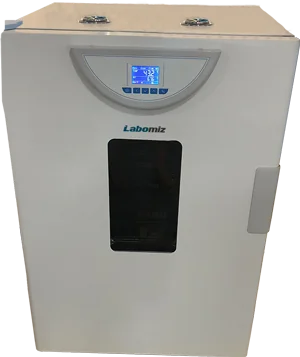

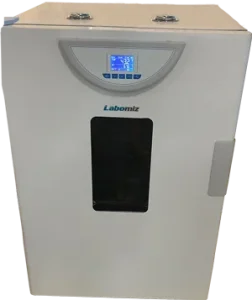

Drying Oven MHDO-1A

Name: Drying Oven MHDO-1A
Brand: Labomiz
SKU: MHDO-1A

Model: MHDO-1A · Category: Oven

Drying oven MHDO-1A is multi-segments Programmable controller with 40 L chamber capacity. Superior temperature uniformity controlled by PID microprocessor. It provides fast ramping rate and stability during operation. It operational temperature range is RT+10 to 250℃, and designed with large LCD screen to display more data at same time. Equipped with stainless steel chamber, outer shell of steel with plastic coating and dual layer toughened glass observation window. It is suitable for industrial and mining enterprises, laboratories and scientific research institutes for desiccation, torrefaction, wax-melting and sterilization.

Specifications

Chamber Volume	40 L
Temperature Range	RT+10 to 250℃
Display Resolution	0.1℃
Temperature Stability	±1℃
Temperature Uniformity	±2.5%
Display	LCD display
Shelves	2 pcs
Timing Range	0 to 5999 min
Internal dimension (W×D×H)	350 × 300 × 400 mm
External dimension (W×D×H)	505 × 655 × 600 mm
Power consumption	850 W
Power supply	220 V, 50 Hz
Net Weight	40 kg
Gross Weight	52 kg

Features

Designed with PID controller system

Material used polished stainless-steel chamber

Equipped with 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature

Auto-controller of fan speed to prevent damage to the samples

Designed with large LCD screen to display more data at same time

Self-check function easy to identify problems

Offers programmable controller 7 periods 63 steps, 0 to 5999 min for each periods, fan speed 0 to 100% adjustable

Dual layer glass door, large viewing window

Independent audible and visible temperature-limiting alarm system ensures experiments run safely

Over temperature and temperature difference alarms

Semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable

Applications

Drying Oven is used for glassware desiccation, laboratorial sample, food, chemical materials heat denaturalization, heat induration, moisture elimination, biomedical and other instruments sterilization; electronic components torrefaction and aging.
