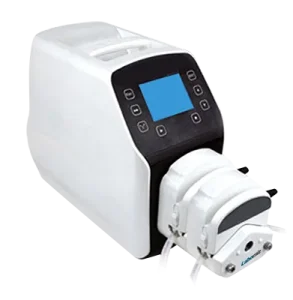

Standard Peristaltic Pump MSPP-1C
Model: MSPP-1C · Category: Peristaltic Pump
Standard Peristaltic Pump MSPP-1C is a positive displacement pump with mechanical keypad for controlling direction and speed. It pumps out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is ideal for dispensing, metering and general transfer of fluids.
Specifications
| Flow rate range | 0.000166 ml / min ~ 2280 ml / min |
|---|---|
| Number of channels | 1 ~ 4 |
| Time range | 0.1 s ~ 9999 h |
| Number of rollers | 3 |
| Speed resolution | 0.1 rpm |
| Back suction angle | 0° ~ 360° |
| Outlet pressure ( 0.86 mm ~ 1.0 mm wall thickness tubing ) | 0.1 MPa |
| Outflow pressure ( 1.6 mm ~ 2.4 mm wall thickness tubing ) | 0.1 MPa ~ 0.27 MPa |
| IP grade | IP31 |
| Standard Power supply | 220 V ± 10 % 50 Hz 220 V ± 10 % 60 Hz |
| Optional Power supply | 110 V ± 10 % 50 Hz 110 V ± 10 % 60 Hz |
| Power consumption | < 50 W |
| Temperature | 0 °C ~ 40 °C |
| Relative humidity | < 80 % |
| Dimension ( L × W × H ) | 261.4 mm × 157.3 mm × 236.9 mm |
| Weight | 4.40 kg |
Features
| Stainless steel construction for rigidity, accuracy and reliability |
| Streamlined body design |
| ABS plastic shell and UV coated structure for anti-corrosive and anti-static properties |
| Mechanical keypad for controlling direction and speed |
| 3.2’’ Blue HD LCD screen displays current motor speed, direction and working state |
| Embedded metal handle for comfortable grip and convenience |
| Equipped with Pump head, internal wrench, external control protection cover |
| Equipped with Stepper motor drive |
| Noiseless drive |
| Equipped with Ultra filter |
| Dust and moisture proof, anti-static and anti-corrosive circuit board |
Applications
Used in waste water treatments, mining industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
Standard Accessories
| Accessory No | Accessory |
|---|---|
| 1 | Power line |
| 2 | Silicone tubing |
| 3 | Manual |
Optional Accessories
| Accessory No | Accessory |
|---|---|
| 1. | Foot pedal switch |
| 2. | Filling nozzle |
| 3. | Support stand |
| 4. | One way valve |
Pump Head and Tubing
| Model No | Pump head Flow rate | Channel | Tubing size |
|---|---|---|---|
| MSPPC1 | 0.007 ml / min ~ 2280 ml / min | 1 ~ 4 | Wall: 1.6 mm |
